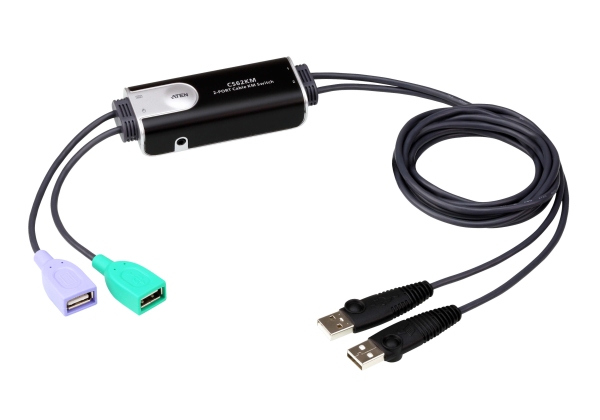

The ATEN CS62KM is a 2-port USB Cable KM Switch that enables users to control up to 2 computers with a single keyboard and mouse. The CS62KM offers various innovative port selection methods for users to switch between the connected computers via remote port selector, keyboard hotkey, mouse cursor, and mouse wheel. The mouse cursor method adopts ATEN’s exclusive Boundless Switching technology, which provides an intuitive way to switch control to another computer by simply moving your mouse cursor across a screen border and onto the target computer display without limitations.

The CS62KM’s Boundless Switching function supports up to 2 monitors, expediting the process of switching between computers for a smooth and hassle-free user experience. In addition to making multitasking across two displays more efficient, this function is especially useful in emergencies that necessitate the immediate monitoring and management of computers.

Further advanced features of the CS62KM include bus-powered mode which means no external power adapter is required. With a rich feature set, the CS62KM is designed to simplify administrative tasks, save space, and increase work productivity, and is especially suitable for complex multitasking applications in control rooms in any industry.

Computer Connections 2
Port Selection Hotkey, Mouse Wheel, Mouse Cursor, Remote Port Selector
Connectors
Console Ports 2 x USB Type A Female
KVM (Computer) Ports 2 x USB Type A Male
Remote Port Selector 1 x 2.5mm Audio Jack Female
LEDs
Selected 2 (Green)
Cable Length
Console 0.15 m
Computer 1.2 m
Remote Port Selector 1.8 m
Emulation
Keyboard / Mouse USB
Power Consumption DC 5V:0.74W:7.7BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.12 kg ( 0.26 lb )
Dimensions (L x W x H) 8.45 x 3.40 x 2.21 cm
(3.33 x 1.34 x 0.87 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.


Single USB keyboard and mouse control up to 2 computers
Boundless Switching – simply move the mouse cursor across the display border and onto the corresponding display of the target computer to switch the keyboard/mouse operations from one computer to the next
Computer selection via remote port selector, hotkey, mouse cursor, and mouse wheel1
Supports Windows operating systems
No software required
Firmware upgradable
Supports USB hot-plugging
Bus-powered – no external power adapter required2

Note:
1. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
2. The USB bus-powered design allows the switch to get power from the connected computers. It requires connection to two computers to get sufficient power supply.

Package Contents
1x CS62KM 2-Port USB Boundless Cable KM Switch
1x Remote Port Selector
1x User Instructions
