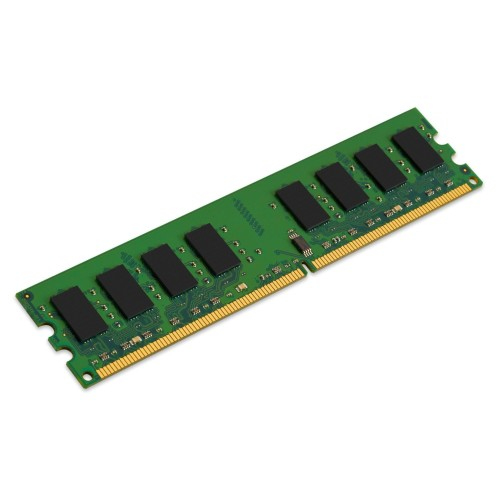

Typ paměti: DDR4 Kapacita paměti: 4 GB Frekvence paměti: 2133 MHz Časování: 15 Korekce chyb (ECC): ECC Funkce: *Power Supply: VDD=1.2V Typical *VDDQ = 1.2V Typical *VPP - 2.5V Typical *VDDSPD=2.2V to 3.6V *Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals *Low-power auto self refresh (LPASR) *Data bus inversion (DBI) for data bus *On-die VREFDQ generation and calibration *Single-rank *On-board I2 serial presence-detect (SPD) EEPROM *Temperature sensor with integrated SPD *16 internal banks; 4 groups of 4 banks each *Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) *Selectable BC4 or BL8 on-the-fly (OTF) *Fly-by topology *Terminated control command and address bus *PCB: Height 1.23” (31.25mm) *RoHS Compliant and Halogen-Free
