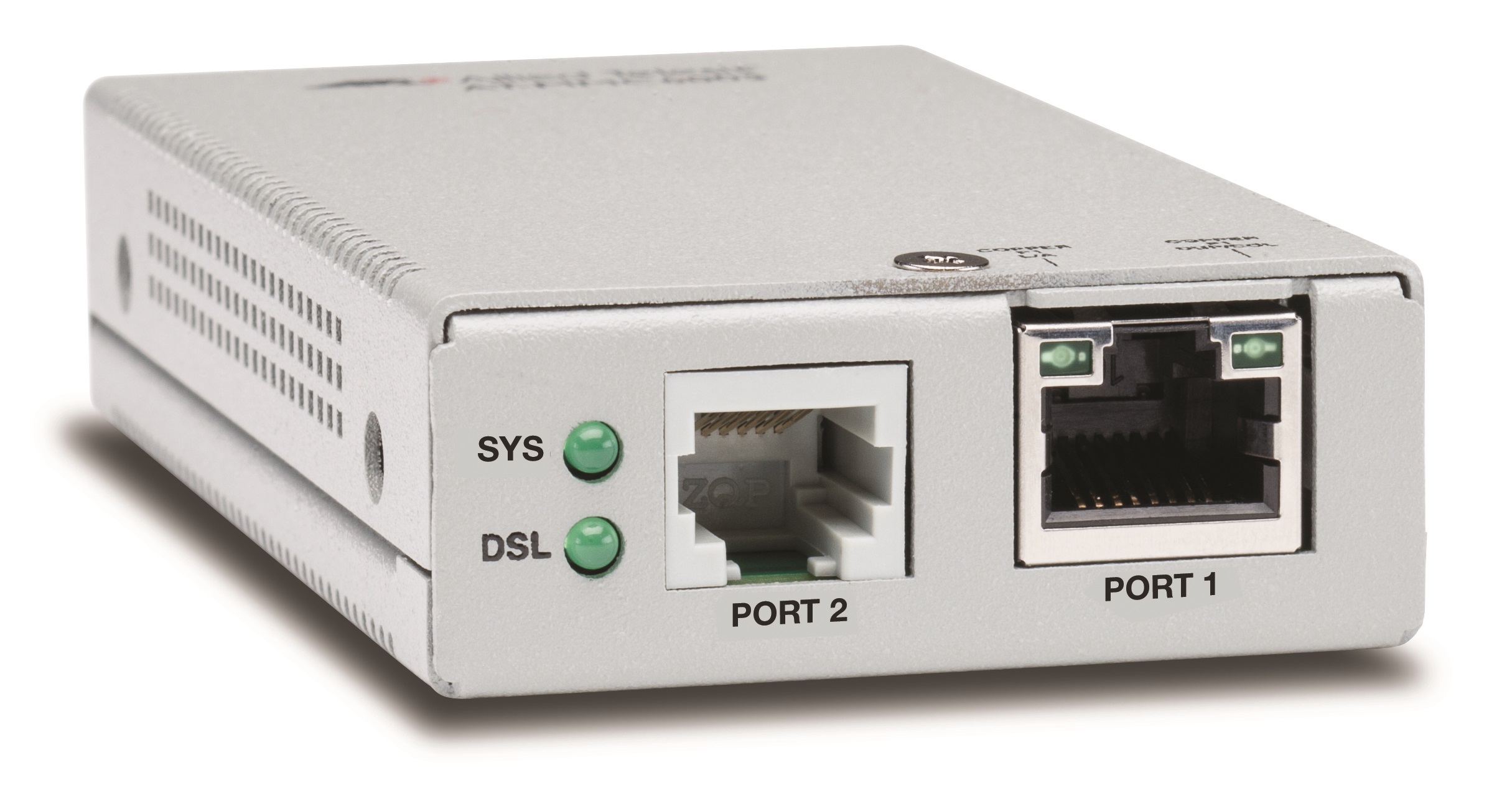

MMC6000 Series - Gigabit Ethernet over VDSL and Coax Mini Media Converters OVERVIEW Extended Ethernet Operation Used as a pair, the Allied Telesis ATMMC6005 provides up to 150Mpbs of bidirectional data transfer, while supporting POTS* service over phonegrade, twisted-pair wiring (CAT1, 2, 3) at distances up to 3 km or 10,000 feet. These units are the ideal solution for providing data on “last-mile” twistedpair circuits or existing in-building wiring. Standard Ethernet operation is preserved end-to-end, retaining VLAN tags, and Ethernet MAC information across the link, while higher layer protocols are passed transparently. 10/100Mbps Ethernet operation is supported simultaneously with POTS*, ISDN or PBX signaling, without disruption. MTU and MDU Applications Multi-Tenant Units (MTU) such as offices and campuses, and Multiple Dwelling Units (MDU) such as hotels and apartments are an ideal environment for AT-MMC6005 network extenders, where private phone-grade wiring can be used to provide broadband access to Internet services including video streaming, World Wide Web, gaming and e-mail. There is no need to re-wire premises with expensive CAT5 or fiber to provide broadband Ethernet services. Standalone and Rack-mount The Allied Telesis AT-MMC6005 provider unit is available as a compact standalone unit for installation at the central office, or alternatively, it can be rack-mounted in a standard Allied Telesis AT-MMCR-18 chassis. Capable of housing up to eighteen units in one compact chassis, it features a redundant power supply, simplifying wiring and minimizing space requirements. Plug and Play Operation Simply connect to the RJ-45 Ethernet port and the unit will automatically auto-sense and configure for 10/100/1000T, as well as full- or halfduplex Ethernet operation. Key features * Up to 150Mbps bidirectional VDSL operation up to 3 km or 10,000 ft * Can function as a subscriber or provider by flipping a switch * Supports both fast mode and interleave mode * Operates over category 1, 2, 3 or 5 telephone-quality cabling 10/100/1000 * Ethernet port * Auto MDI/MDI-X * System, Ethernet and VDSL LEDs * Configurable via DIP switches * Standalone and rack-mountable * Wall-mountable using optional AT-WLMT bracket * Compact form factor * Both symmetrical and asymmetrical operation * Metal chassis * Energy Star compliant external power adapter TECHNICAL SPECS Product Specifications *DMT modulation *Spectrally compatible with ISDN and POTS services FDD duplexing *Datarate up to 100Mbps / 60Mbps full-duplex *4M flash *Half-/full-duplex *Auto-negotiation *Auto MDI/MDI-X Speed/Distance *Speed up to 100Mbps / 60Mbps at short distances; data throughput up to 3km or 10,000ft distances (subject to cable type) Front Panel Indicators *System power *Ethernet link *Ethernet activity *VDSL link *VDSL rate Interface Connections *VDSL interface: RJ-11 *Ethernet interface: RJ-45 *POTs interface: RJ-11 *Management: 4-pin DIP switch Physical Characteristics VDSL Interface *Dimensions (W × D × H): 50.8 mm x 99.1 mm x 20.3 mm *Weight: 0.2 kg *Mounting Tabletop and rack-mountable (requires AT-MMCR18 chassis) Environmental Specifications *Operating Temperature: 0 °C to 50 °C *Storage Temperature: -30° C to 70° C *Operating Humidity: 5% to 90% non-condensing *Storage Humidity: 5% to 95% non-condensing *Operating Altitude Range: Up to 3,000 m Power Characteristics *External power supply: 240V AC, 50Hz *Input supply voltage: 12vDC *Max current: 300mA *Power consumption: 2W *Energy Star compliant Country of Origin China
