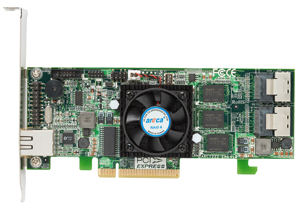

Intel 800MHz IOP348 I/O processor with SAS controller
  PCIe x8 link host interface
  256MB on-board DDR2-533 SDRAM with ECC protection
  Support write-through or write-back cache
  Multi-adapter support for large storage requirements
  BIOS boot support for greater fault tolerance
  BIOS PnP (plug and play) and BBS (BIOS boot specification) support
  Intel RAID engine support extreme performance RAID 6 function
  NVRAM for RAID event & transaction log
  Redundant flash image for adapter availability
  Battery Backup Module (BBM) ready (option)
ARC-6120BAT-T1xx, xx means version no.
  RoHS Compliant

  RAID Features
  RAID level 0, 1, 3, 5, 6, 30, 50, 60 or JBOD
  Multiple RAID selection
  Online array roaming
  Online RAID level/stripe size migration
  Online capacity expansion and RAID level migration simultaneously
  Online volume set growth
  Instant availability and background initialization
  Automatic drive insertion / removal detection and rebuilding
  Greater than 2TB per volume set (64-bit LBA support)
  Disk scrubbing/ array verify scheduling for automatic repair of all configured RAID sets
  Support spin down drives when not in use to extend service life (MAID)
  Support NTP protocol synchronize RAID controller clock over the on board Ethernet port

  Disk Bus Interface
  Up to 4/8 SAS/SATA II HDDs (no expander capability )
  Up to 3Gbps per drive port

  Host Connectivity
  PCIe x8 lane width host interface

  Monitors/Indicators
  System status indication through global HDD activity/fault connector, individual fault connector, LCD/I2C connector and alarm buzzer
  SMTP support for email notification
  SNMP support for remote manager
  Enclosure management (Serial bus and SGPIO) ready

  RAID Management
  Field-upgradeable firmware in flash ROM
    In-Band Manager
  Hot key "boot-up" McBIOS RAID manager via BIOS
  Web browser-based McRAID storage manager via Http proxy server
  Support Command Line Interface (CLI)
  API library for customer to write monitor utility
  Single Admin Portal (SAP) monitor utility
  Disk Stress Test (DST) utility for production
    Out-of-Band Manager
  Firmware-embedded web browser-based McRAID storage manager, SMTP manager and SNMP agent and Telnet function via Ethernet port
  API library for customer to write monitor utility
  Support Push Button and LCD display panel

  Operating System
  Windows 7/2008/Vista/Server 2003/XP/2000
  Linux
  FreeBSD
  Novell Netware 6.5
  Solaris 10 x86/x86_64
  SCO Unixware 7.x.x
  Mac OS 10.4.x/10.5.x/10.6.x (EFI BIOS support
