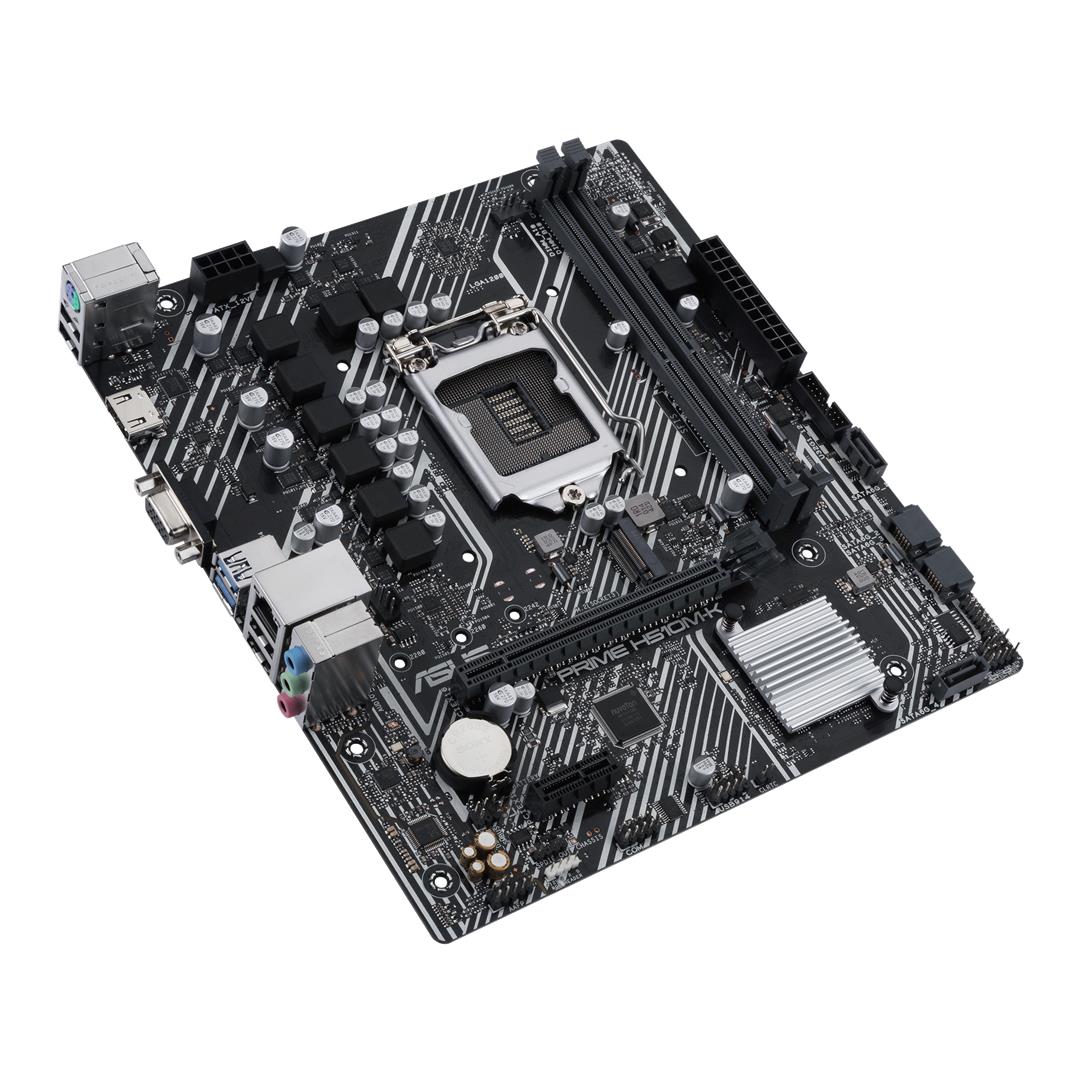

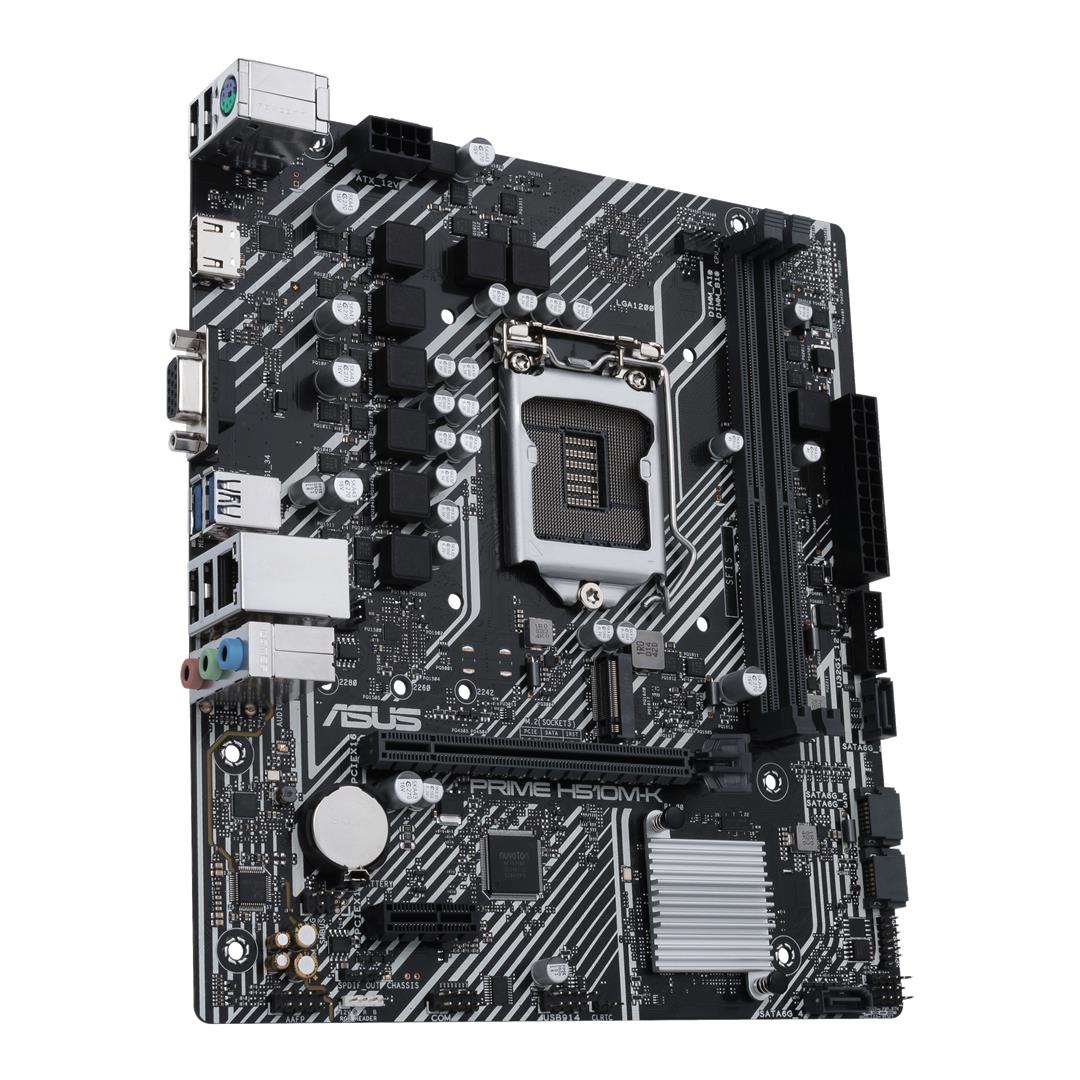

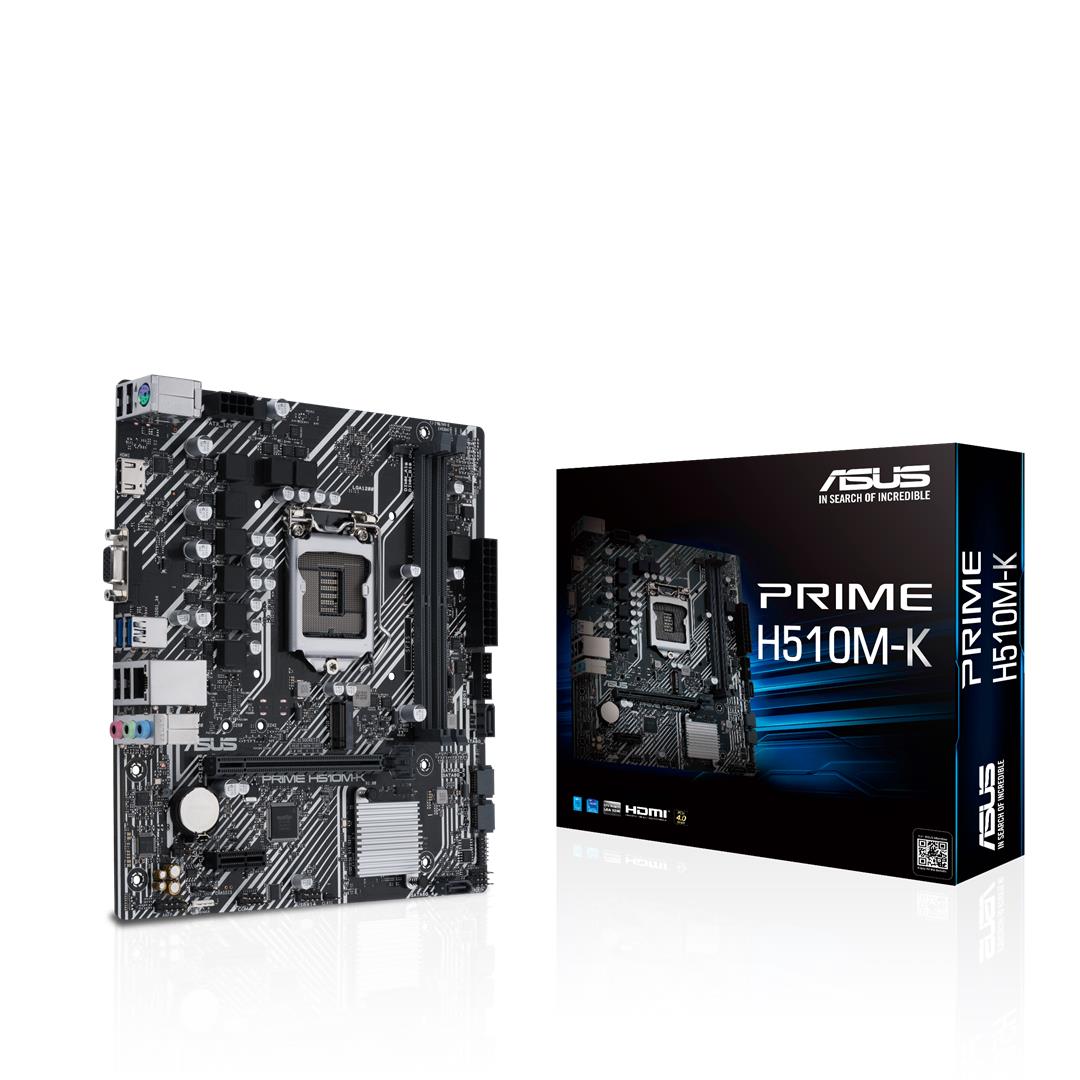

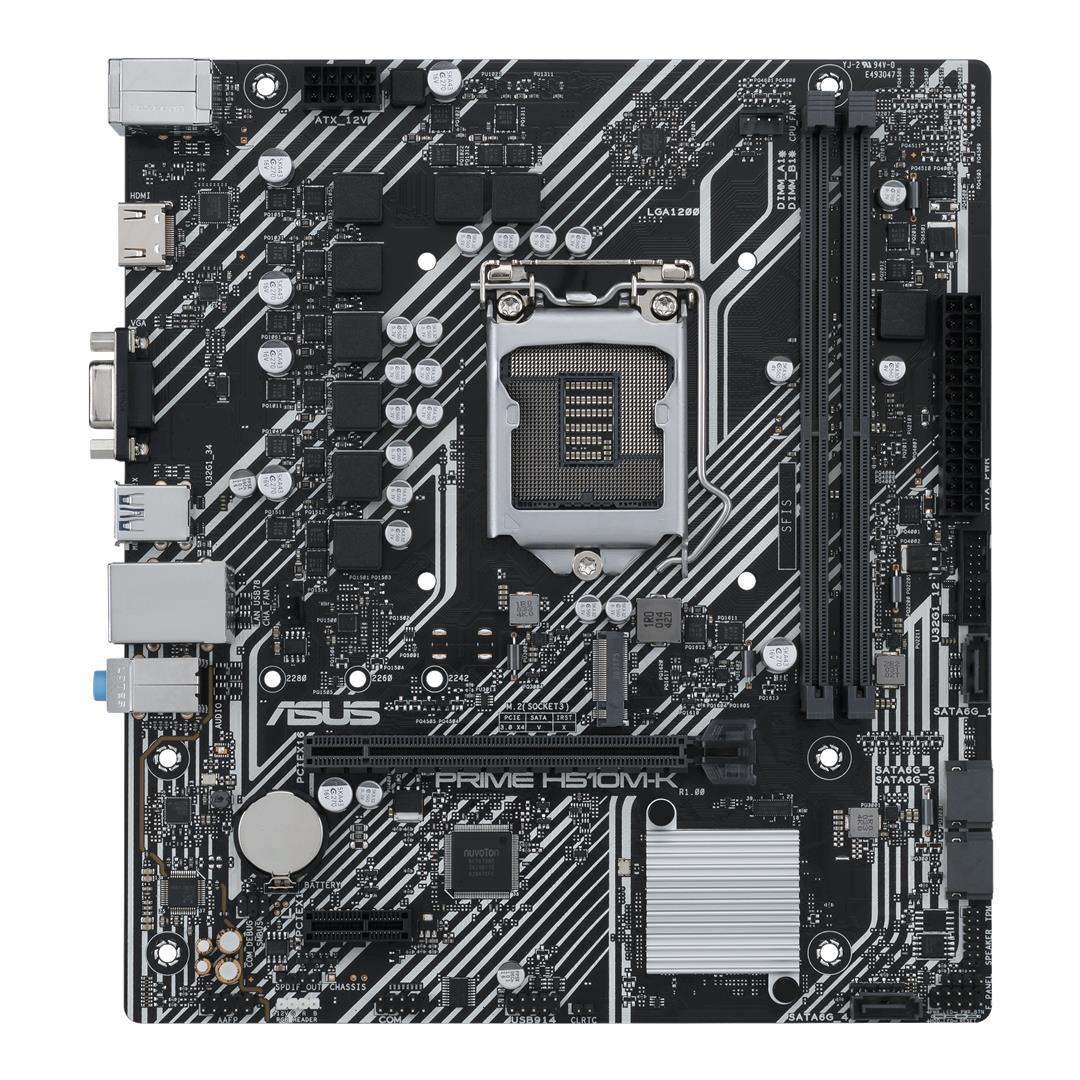

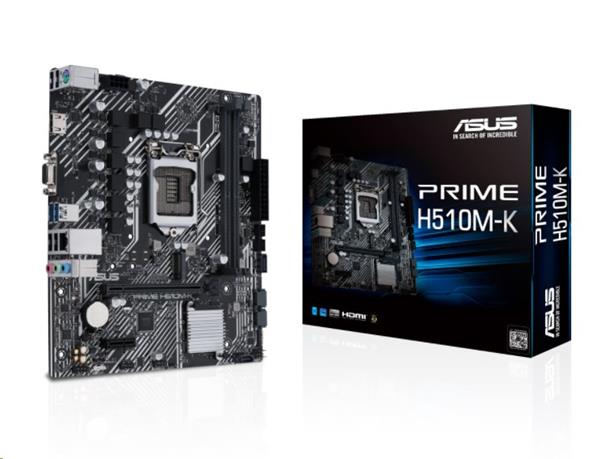

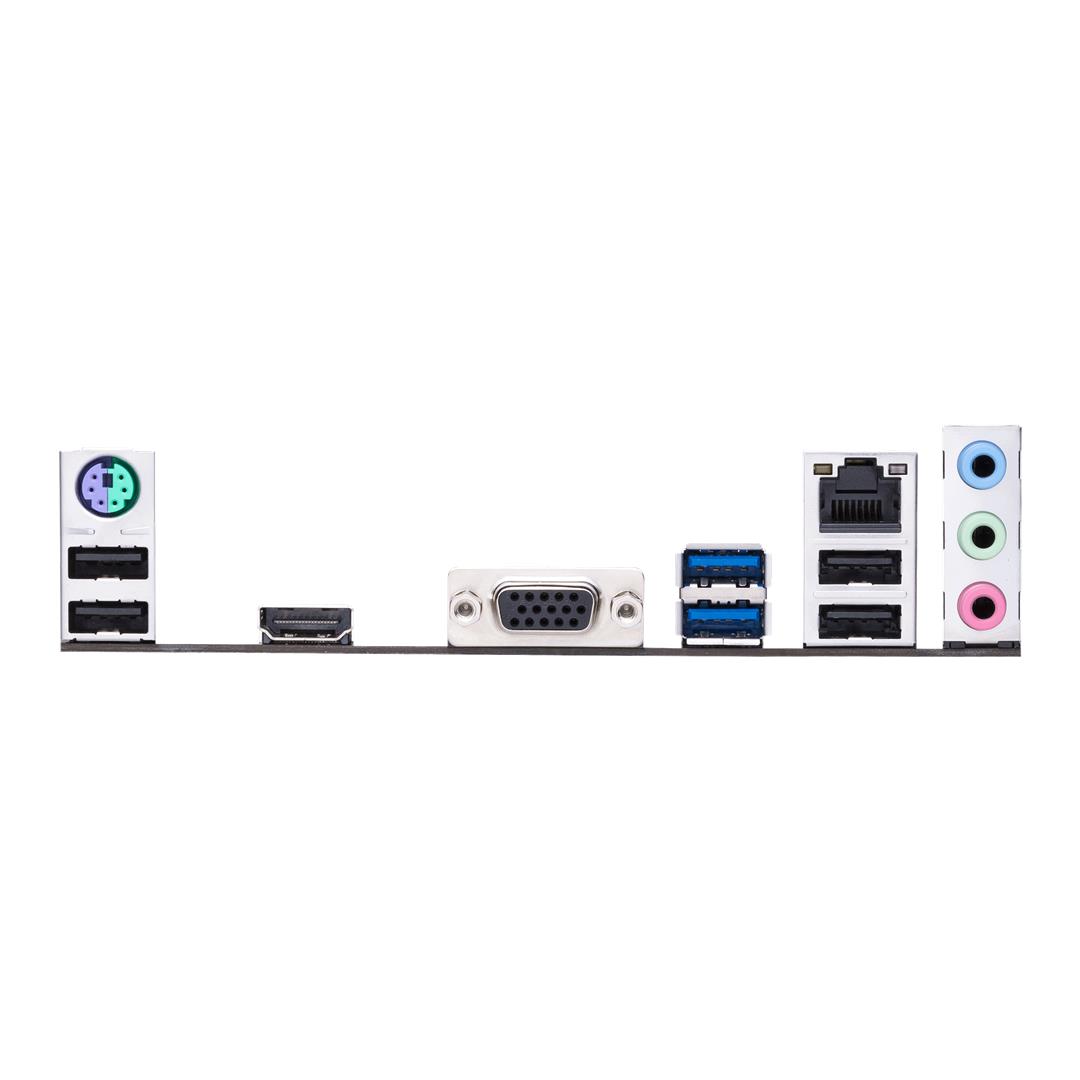

Chipset: Intel® H510 Chipset Rozměrový formát: mATX Form Factor (226 mm x 203 mm) Podpora pro procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Patice procesoru: LGA 1200 Pozice na paměti: 2x DDR4 DIMM Podpora pro paměti: *3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Max.velikost operační paměti: 64 GB Podpora pro paměti typu: DDR4 *Dual Channel Memory Architecture *Intel® Extreme Memory Profile (XMP) Grafické výstupy: *Integrated Graphics Processor (na základě procesoru) Zvuková karta: *Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC Síťová karta: *1x Intel® I219-V 1Gb Ethernet Rozšiřující sloty: *1x PCIe 4.0/3.0 x16 slot *1x PCIe 3.0 x1 slot SATA: *4x SATA 6Gb/s ports M.2: *M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) USB: *zadní USB porty ( celkem 6 ) *2x USB 3.2 Gen 1 ports (2 x Type-A) *4x USB 2.0 ports (4 x Type-A) *přední USB porty ( celkem 4 ) *2x USB 3.2 Gen 1 ports *2x USB 2.0 ports Interní porty: *1x 4-pin CPU Fan header *1x 4-pin Chassis Fan header *1x 24-pin Main Power connector *1x 8-pin +12V Power connector *1x M.2 slot (Key M) *4x SATA 6Gb/s ports *1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *1x USB 2.0 header supports additional 2 USB 2.0 ports *1x RGB header *1x Clear CMOS header *1x COM Port header *1x Front Panel Audio header (AAFP) *1x S/PDIF Out header *1x Speaker header *1x SPI TPM header (14-1pin) *1x 10-1 pin System Panel header Externí porty: *2x USB 3.2 Gen 1 ports (2 x Type-A) *4x USB 2.0 ports (4 x Type-A) *1x D-Sub port *1x HDMI™ port *1x Intel® I219-V 1Gb Ethernet port *3x Audio jacks *1x PS/2 Keyboard/Mouse combo port Obsah balení: *2x SATA 6Gb/s cables *1x I/O Shield *1x M.2 ANCHOR *1x Support DVD *1x User manual BIOS: 128 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://www.asus.com/Motherboards-Components/Motherboards/All-series/PRIME-H510M-K https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215
