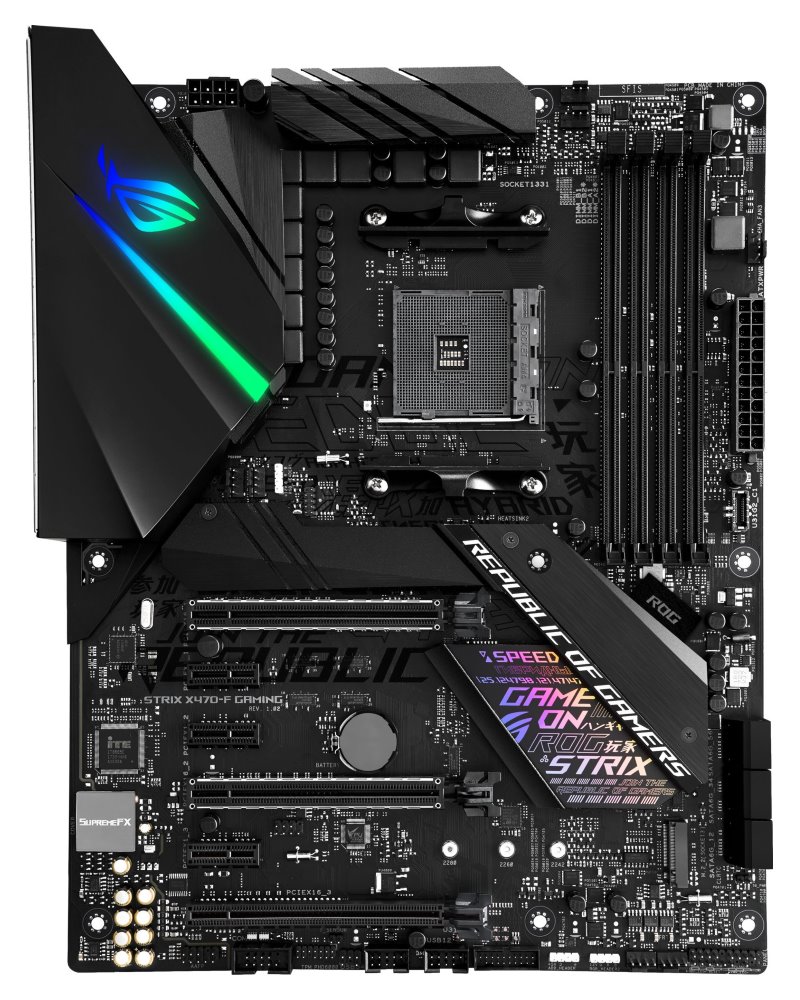

Technické specifikace: Formát: ATX (30,5x24,4 cm ) CPU: AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors Čipová sada: AMD X470 Operační paměť: 4 x DIMM, Max. 64GB, DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC Lan: Intel® I211-AT, 1 x Gigabit LAN Controller(s) Zvuk: SupremeFX 8-Channel High Definition Audio CODEC S1220A Úložný prostor: AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : -1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/Athlon™ Processors : -1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) AMD X470 chipset : -1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode) -6 x SATA 6Gb/s port(s), ¨ Rozšiřující sloty: AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors -2 x PCIe 3.0 x16 (x16 or dual x8) AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors -1 x PCIe 3.0 x16 (x8 mode) AMD X470 chipset -1 x PCIe 2.0 x16 (max at x4 mode) * -3 x PCIe 2.0 x1 Externí porty: -1 x PS/2 keyboard/mouse combo port(s) -1 x DisplayPort -1 x HDMI -2 x USB 3.1 Gen 2 Type-A, -6 x USB 3.1 Gen 1 -1 x Optical S/PDIF out -5 x Audio jack(s) -Anti-surge LAN (RJ45) port Interní porty: -1 x Aura Addressable Strip Header(s) -2 x RGB Header(s) -2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) -1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support -1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices -1 x TPM connector(s) -6 x SATA 6Gb/s connector(s) -1 x CPU Fan connector(s) -1 x CPU OPT Fan connector(s) -3 x Chassis Fan connector(s) -1 x AIO_PUMP connector -1 x W_PUMP+ connector -1 x 24-pin EATX Power connector(s) -1 x 8-pin ATX 12V Power connector(s) -1 x Front panel audio connector(s) (AAFP) -1 x Thermal sensor connector(s) -1 x Clear CMOS jumper(s) -1 x System panel connector -1 x COM port header -1 x USB 3.1 Gen 2 front panel connector -1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) Příslušenství: -User's manual -4 x SATA 6Gb/s cable(s) -1 x M.2 Screw Package -1 x Supporting DVD -1 x Strix door hanger -1 x SLI HB BRIDGE(2-WAY-M) -1 x ROG Strix stickers -1 x Cable ties pack(s) -1 x Extension Cable for RGB strips (80 cm) -1 x Extension cable for Addressable LED Bios: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS.... Více na stránkách https://www.asus.com/us/Motherboards/ROG-STRIX-X470-F-GAMING/specifications/
