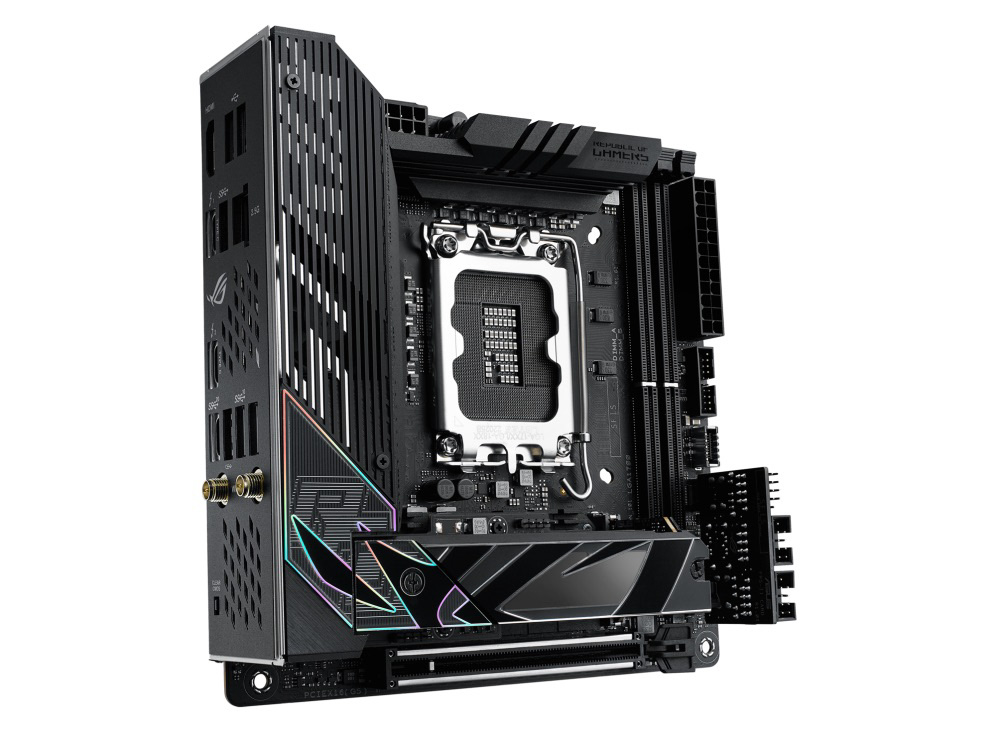

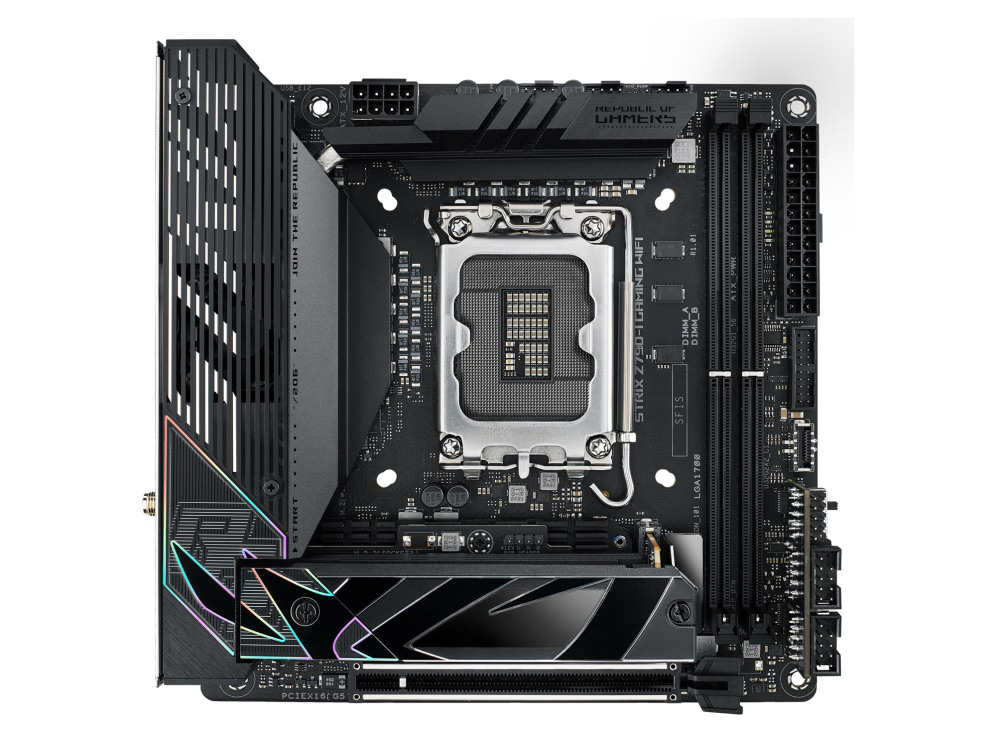

Chipset: Intel Z790 Chipset Rozměrový formát: Mini-ITX Form Factor (17cm x 17cm) Podpora pro procesory: 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Patice procesoru: LGA 1700 Pozice na paměti: 2 x DIMM, Dual Channel Memory Architecture Podpora pro paměti: DDR5 7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/5600/ 5400/ 5200/ 5000/ 4800 MHz Max.velikost operační paměti: 64 GB Podpora pro paměti typu: XMP Grafická karta: (na základě procesoru) *1 x HDMI port *2 x Intel Thunderbolt 4 ports Zvuková karta: ROG High Definition Audio CODEC ALC4050 Síťová karta: *1 x Intel 2.5Gb Ethernet *Wi-Fi 6E (802.11 a/b/g/n/ac/ax) *Bluetooth v5.3 Rozšiřující sloty: 1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode) RAID řadič: RAID 0/1 SATA: 2 x SATA 6Gb/s ports M.2: 2 x M.2 slots USB: *Interní: *1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C ) *1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports *Externí: *1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) *3 x USB 3.2 Gen 2 port(s) (3 x Type-A) (supports ROG STRIX HIVE) *1 x USB 3.2 Gen 1 port(s) (1 x Type-A) *2 x USB 2.0 port(s) (2 x Type-A) Interní porty: *Fan and Cooling related *1 x 4-pin CPU Fan header(s) *1 x 4-pin AIO Pump header(s) *1 x 4-pin Chassis Fan header(s) *Power related *1 x 24-pin Main Power connector *1 x 8-pin +12V Power connector *Storage related *2 x M.2 slots (Key M) *USB *1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C) *1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports *Miscellaneous *1 x Addressable Gen 2 header(s) *1 x Aura RGB header(s) *1 x Thermal Sensor header *2 x USB Type-C connectors to Install ROG FPS-II card *ROG FPS-II card *2 x SATA 6Gb/s ports *1 x CPU Over Voltage jumper *1 x Thermal Sensor header *1 x Front Panel header *1 x Alternative PCIe Mode switch *2 x USB 2.0 header(s) support(s) additional *3 USB 2.0 ports Externí porty: *2 x Thunderbolt 4 USB Type-C port(s) *1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) *3 x USB 3.2 Gen 2 port(s) (3 x Type-A)(supports ROG STRIX HIVE) *1 x USB 3.2 Gen 1 port(s) (1 x Type-A) *2 x USB 2.0 port(s) (2 x Type-A) *1 x HDMI port *1 x Wi-Fi Module *1 x Intel 2.5Gb Ethernet port *1 x Clear CMOS button BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
