Popis produktu:

měřené PDU , délka kabelu 1,6m
typ připojení IEC 60320 C20
zásuvky 14 x IEC320 C13 + 2 x IEC320 C19

typ připojení IEC 60320 C20

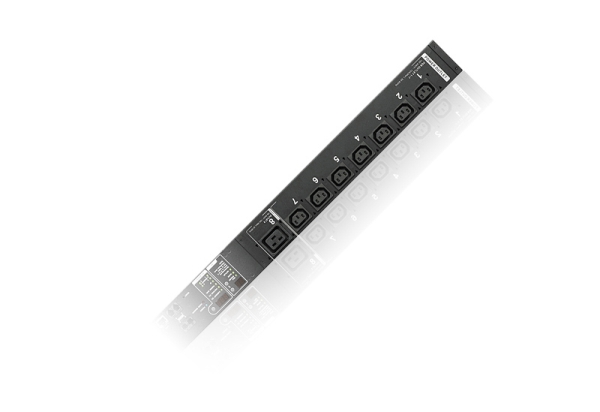

As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (eco PDUs) to effectively increase the efficiency of data center power usage. The NRGence PE7216 eco PDUs are intelligent PDUs that contain 16 AC outlets and are available in various IEC socket configurations.

NRGence eco PDUs provide secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors.






NRGence eco PDUs offer remote power control combined with real-time power measurement — allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP/IP connection.

NRGence eco PDU supports any 3rd party V3 SNMP Manager Software and NRGence eco Sensors (eco PDU Manager Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.

With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

Package Contents

1x PE7216 eco PDU
1x Power Cord
1x Rack Mount Kit
1x CD-ROM (Manual, eco Sensors Software)
1x User Instructions

FEATURES

Connections
¦ Support 10/100Mbit Ethernet Interface
¦ Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, SNMP V1,V2&V3
¦ Support 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIOUS
¦ Support : eco Sensors, Browser ( IE, Firefox, Chrome, Safari )

¦ Metering
¦ PDU and outlet level power metering and monitoring
¦ Environment monitoring — supports external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
¦ Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting
¦ Support door sensor

¦ Outlet Switch Control
¦ Always On

SPECIFICATION

Electrical

Nominal Input Voltage 100 – 240 VAC
Maximum Input Current 16A Max
Input Frequency 50-60 Hz
Input Connection IEC 60320 C20
Input Power 3680 VA(Max)

Outlet Type
Total: 14 x IEC320 C13 + 2 x IEC320 C19
Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19
Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19

Nominal Output Voltage 100 – 240 VAC

Maximum Output Current (Outlet)
C13: 10A (Max)
C19: 16A (Max); TUV De-rated 15A(Max)

Maximum Output Current (Bank) 16A(Max); TUV De-rated 15A(Max)
Maximum Output Current (Total) 16A(Max); TUV De-rated 15A(Max)
Breakers 1 x 16A Non-Fuse breaker
Metering Outlet Level Current, Voltage, VA, PF, KWh Monitoring
Outlet Switching None
Environment Sensor Ports 4

Metering Accuracy
Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%

Physical Properties

Dimensions (L x W x H)
132.48 x 6.60 x 4.40 cm
(52.16 x 2.6 x 1.73 in.)

Weight 3.70 kg ( 8.15 lb )
Power Cord Length 1.6 m

Environmental

Temperature (Operating / Storage) 0 – 40°C / -20 – 60°C
Humidity (Operating & Storage) 0 – 80% RH, Non-Condensing

Compliance

EMC Verification CE, Others by Request
Safety Verification TUV-CB, CE-LVD, Others by Request
