Popis produktu:

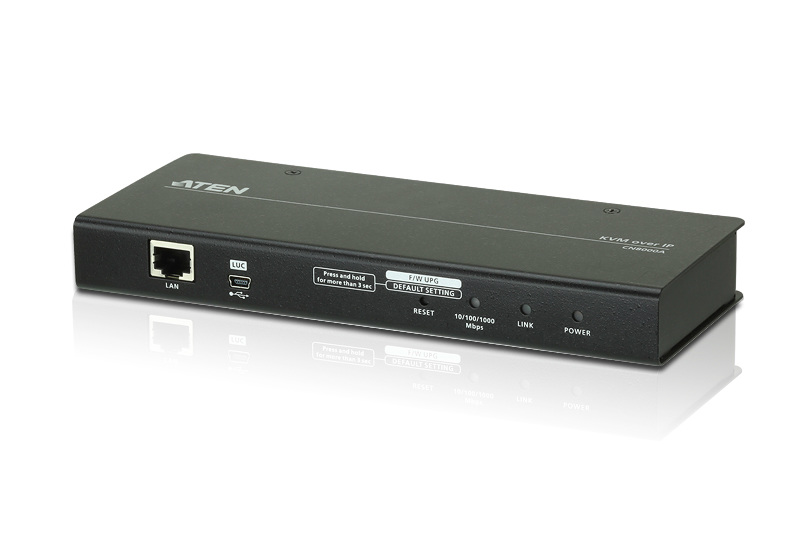

Single Port KVM over IP Switch

The new generation ATEN CN8000A features superior video quality with HD resolutions up to 1920 x 1200, LUC (Laptop USB Console) for easier KVM access, user-friendly local console OSD and virtual media function without additional cable.
The CN8000A Single Port KVM over IP provides access control through “over-IP” for conventional KVM switches that do not have built in over-IP functionality. It allows system operators to monitor and access computers from remote locations using standard Web browsers or Windows and Java based application programs. The CN8000A connects to the Intranet either LAN or WAN simply by using an industry standard Cat 5e/6 cable, and is connected to a local KVM switch or server via a custom KVM cable.

The ATEN CN8000A uses the standard TCP/IP protocols for communications, it allows the connected server or KVM switch to be accessed from any computer over the internet – whether that computer is located down the hall, in other areas of the country or branch offices in other parts of the world.

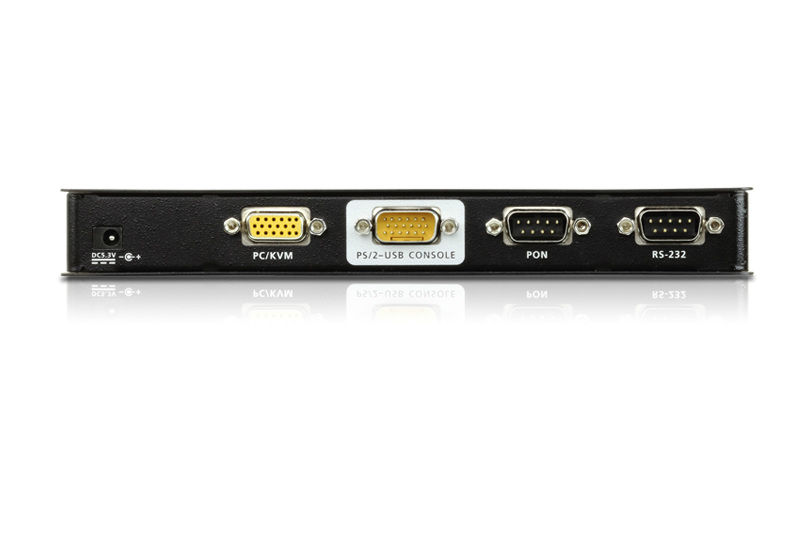

The CN8000A expands on previous models by providing a dedicated RS-232 port for modem access or serial console management, a PON port to connect a ATEN PDU device and USB 2.0 virtual media capability.

A Windows Client Viewer and a Java Applet Viewer are available for browser access, while Windows Client AP and Java Client AP programs are provided for non-browser GUI access. They allow IP connection and login from anywhere over the internet. Inclusion of a Java-based client ensures that the CN8000A is an independent platform, and is able to work with practically all operating systems.

To meet advanced security requirements, the CN8000A’s Virtual Media function allows a Smart Card / CAC reader on a user’s local system to be mapped to a remote server. The CN8000A provides a fast, reliable and a cost effective way to remotely access and manage widely distributed multiple computer installations.

Features:

Hardware
Provides over-IP capability to KVM switches that do not have built in over-IP functionality *
Supports PS/2,USB, Sun Legacy (13W3)** and serial (RS-232) connectivity
Local console provides PS/2, USB keyboard and mouse support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Virtual Media Support
High video resolution – up to 1920 x 1200 @ 60 Hz- 24 bit color depth for the local console; up to 1920 x 1200 @ 60 Hz with 24 bit color depth for remote sessions
Enhanced fps (frames per second) throughput for crisp responsive video display
Note:
* Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, CS1308, CS1316, CS1754*, CS1758*, CS1708A, CS1716A, ACS1208A, ACS1216A, CS228*, CS428*, KH0116, KH2508, KH2516, KH1508, and KH1516
- Some of the CN8000A’s features may not be supported, depending on the functionality of the cascaded KVM switch. (For example, some switches do not support virtual media.)
- Some features found on the cascaded KVM switches may not be supported on the CN8000A. (For example, the CS1754’s audio.)
** Requires CV131A converter purchase


Management

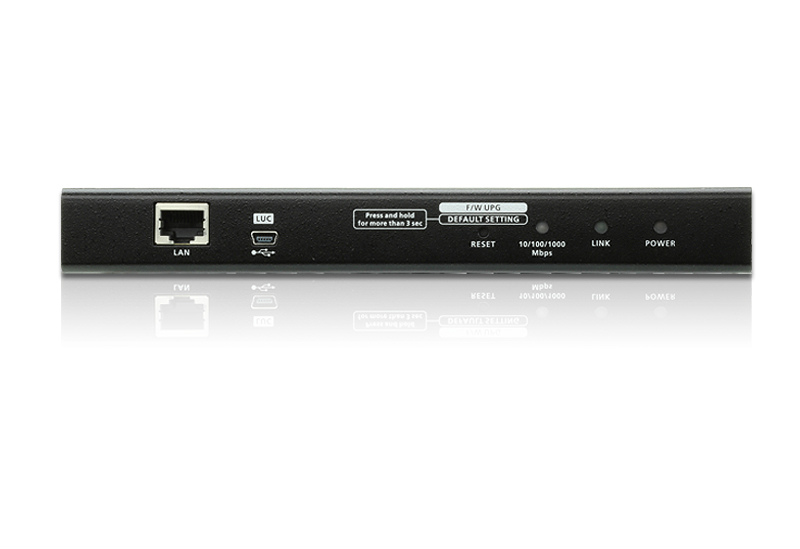

Laptop USB Console (LUC) – A dedicated USB port directly connects to laptop for easy console operation
Easy configuration through local console OSD
Up to 64 user accounts – up to 32 users simultaneously share the control
End session feature – administrators can terminate running sessions
Event logging and Windows-based Log Server support
Critical system events sent by email and SNMP trap; and Syslog support
Remote Firmware upgradable
Serial console management – serial terminal access. Access the CN8000A via a built-in serial viewer, or via third party
software (such as PuTTY) for Telnet and SSH sessions
PPP mode (modem) dial-in/dial back/dial out support for out-of-band, and low bandwidth operation
Port Share Mode allows multiple users to gain access to a server simultaneously
Local/Remote Share Mode to conveniently grant shared or exclusive console privilege
Integration with ATEN CC2000 Centralized Management Software
Power Over the NET integration for remote power control
DDNS (Dynamic Domain Name System)
Export/import user account and configuration settings
Enable/disable browser operation
IPv6 capable


Easy-to-Use Interface
Browser-based and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
Full-screen or sizable and scalable Virtual Remote Desktop
Magic Panel


Advanced Security
Smart Card /CAC Reader Support
External authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
TLS 1.2 encryption to protect password when users log in
Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
Support for IP/MAC Filter
Supports password protection
Private CA


Virtual Media
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB enabled servers in operating system and BIOS level
Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
Convenient to use without virtual media cable


Virtual Remote Desktop
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full screen video display or scalable video display
Message Board for communication among remote users
On-screen keyboard with multilanguage support
Mouse Dynasync
Exit Macros support
BIOS-level access

Package Contents

1x CN8000A Single Port KVM over IP
1x Custom KVM Cable Set
1x Custom Console Cable Set
1x Laptop USB Cable
1x Power Adapter
1x Rack Mounting Kit
1x User Instructions
