Popis produktu:

The KE6900AiT are high performance IP-based transmitters that, when used with receivers (e.g. KE6900AR), provide console access from a separate location. The setup allows extended access of computer systems remotely via USB consoles (USB keyboard, USB mouse, DVI monitor) over intranet and internet, enabling users to place the computer system in secure and temperature controlled environments, which maybe isolated from users’ workstation.

KE6900AiT support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change – boot-ups at BIOS level to system level, logging in and logging out, running software applications to configuring the operating system – are recorded and saved to a secure video file for security reference and troubleshooting purposes, etc..

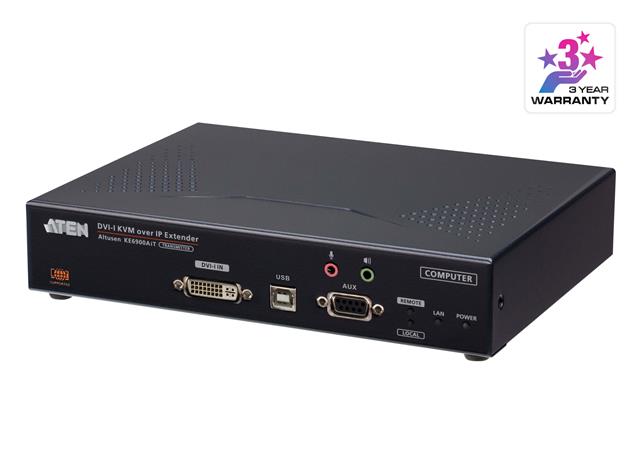

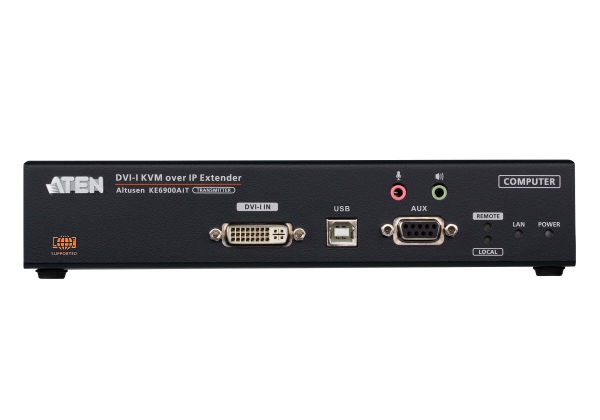

The KE6900AiT DVI-I Single Display KVM over IP Extender supports one DVI display at each end and provide lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz.

The transmitters support connections via an RJ-45 port or a SFP slot. The transmitter can be connected to a receiver either directly to each other, or via a high-speed network over a copper-based or fiber-based LAN. Connecting via the SFP slot with 1Gbps SFP fiber module* expansions on fiber optic network, you can extend transmission distances up to 10km. The KE6900AiT also features dual power supplies for redundancy to ensure dependable services.

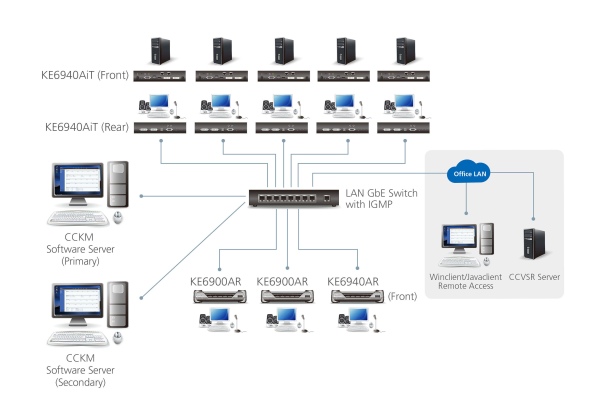

As an IP-based matrix extender, the KE6900AiT can be used as a point-to-point / point-to-multipoint / multipoint-to-point extender, or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KE Matrix Management Software (CCKM), providing more flexible applications in different working environments.

Implementing the KE Matrix Management Software (CCKM) with KE6900AiT, IT administrators can benefit from advanced features such as auto detection of all KE6900AiT devices on the same subnet for the sake of fast installation or configuration, username/password authentication and authorization, and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection, supporting AES-128bits encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of connection security. Moreover, with RS-232 support, and Auto MDIX, the KE6900AiT is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

*The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.


Features

Advanced Features*
Supports recording of remotely-accessed computer operations using CCVSR
Boundless Switching – simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
“Push”and“Pull” – shares content instantly to/from a single Rx or video wall by just one click
Video Walls – create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
Internal and external authentication support – supports LDAP, Active Directory, RADIUS and TACACS+ external authentications
Configurable user and group permissions for access and control of KE devices
Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button**

*These advanced functions are supported when the KE transmitters are paired with KE receivers and managed by KE Matrix Management Software (CCKM).
**The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.



Hardware

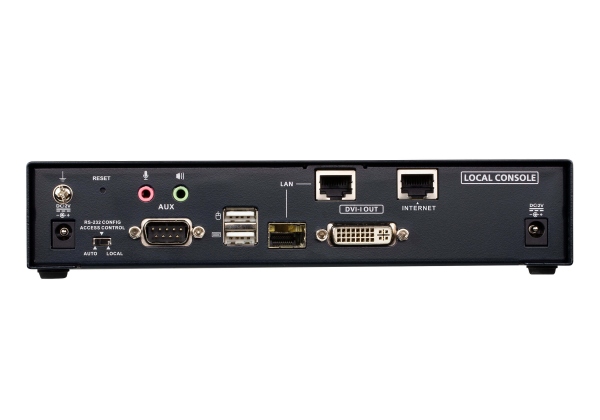

Supports power/network failover – dual DC jacks for power redundancy and 1 RJ45 & 1 SFP fiber ports for network failover to ensure constant availability for mission-critical applications
Supports 1Gbps SFP fiber module expansions*** up to 10 km
Advance processor provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz
Supports digital (DVI) or analog (VGA) video output****
Audio Enabled – supports stereo speakers and microphone
High speed Virtual Media Support
Auto-MDIX – automatically detects cable type
Built-in 8KV/15KV ESD protection and 2KV surge protection
Fanless design for silent operations that are energy efficient
Mounting options:
• 2X-021G Dual Rack Mount Kit
• 2X-031G Single Rack Mount Kit
Includes an industrial-grade power adapter– supports operating temperature of 0-50°C to ensure durability and adaptability under harsh environmental conditions

***The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.
****To convert a DVI to VGA signal, a DVI-I to VGA converter is required.



Management
Integration with ATEN CCVSR Video Session Recording Software (CCVSR multi-screen recording will enhance in 2020 Q4)
Local console – flexible local or over IP console access
EDID Expert™ – selects optimum EDID settings for smooth power-up and highest quality display
Four selectable access modes for multiple simultaneous access (Exclusive/Occupy/Share/ View only mode) – administrators can select access modes of permissions on Tx devices to boost collaboration or to avoid interference among users
On-screen Preview – allows users to view the video of up to 36 displays on one screen
Fast Switching – switches between different remote video resolutions on a local display within 0.3 seconds
Command Line Interface – administrators can control all KE devices via RS-232 or TCP/IP using a CLI or 3rd party application
Supports Hotkey Commands
Flashing LED and beeping feature help locate and identify devices



Security
Dedicated LAN port for KE direct connections – can be isolated from the corporate network
Secure data transmission – AES 128-bit encryption to secure all data before transmitted over a network and decrypts the data on the receiver
Supports industry standard Transport Layer Security (TLS) protocol



Virtual Media
Virtual media enables file transfers, OS patching, software installations and diagnostic testing
Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
Supports Smart Card/CAC Reader


Package Contents
1x KE6900AiT DVI-I Single Display KVM over IP Transmitter with Internet Access
1x Power Adapter & Power Cord
1x KVM Cable (DVI-D dual-link, USB, Audio; 1.8m/6ft)
1x Foot Pad Set (4 pcs.)
1x Mounting Kit
1x User Instructions
