Popis produktu:

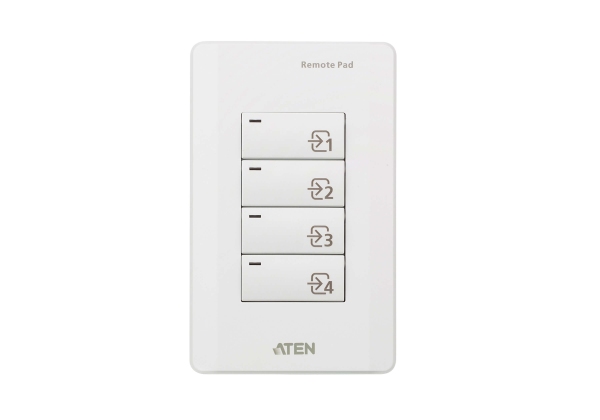

The VPK104 is a 4-button contact closure remote pad designed for use with VP1420/VP1421 Presentation Matrix Switch. By connecting the contact closure ports between the remote pad and a presentation switch, the VPK104 provides a convenient interface to switch the input sources for a video presentation switch from a wall-mounted faceplate. The VPK104 is an easy and affordable solution, perfect to serve as the control interface in a meeting room, class room, or lecture room.

4-button contact closure remote control pad for ATEN VP1420/VP1421 Presentation Matrix Switches
Easy connection via contact closure; no extra power source required
4-pole captive screw connectors for ease of installation
LED lights for port selection status indication
Engraved buttons for intuitive port indication and operation

Package Contents
1x VPK104 4-Key Contact Closure Remote Pad
4x 4-pole Terminal Blocks
1x User Instructions

Interfaces
Keypad Layout 4 buttons
Control
Contact Out 4 xCaptive Screw Connector, 2 pole
LED In 4 xCaptive Screw Connector, 2 pole
Environmental
Operating Temperature 0 – 50°C
Storage Temperature –20 – 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Plastic
Weight 0.12 kg ( 0.26 lb )
Dimensions (L x W x H) 11.63 x 7.06 x 4.78 cm
(4.58 x 2.78 x 1.88 in.)
Faceplate Dimension (L x W x H) 11.92 x 7.42 x 0.92 cm
(4.69 x 2.92 x 0.36 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
