Popis produktu:

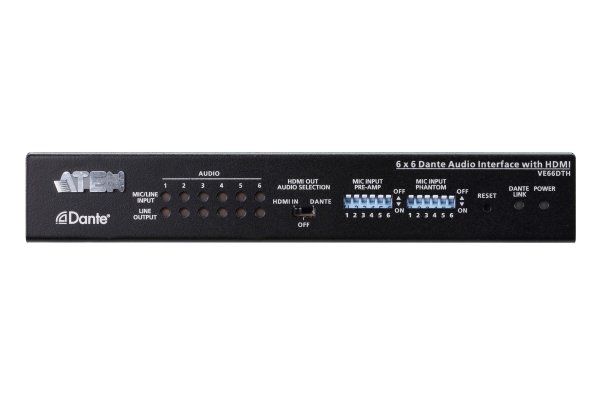

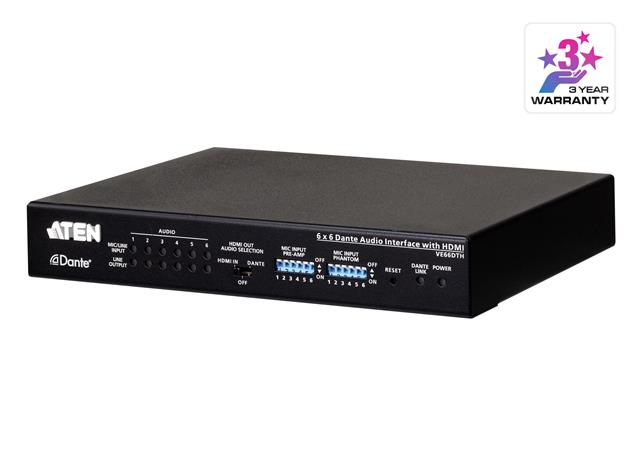

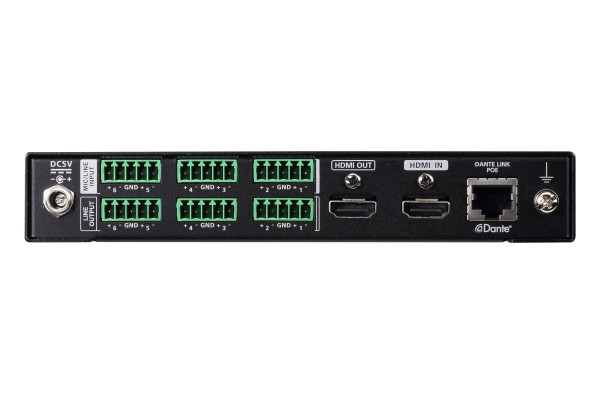

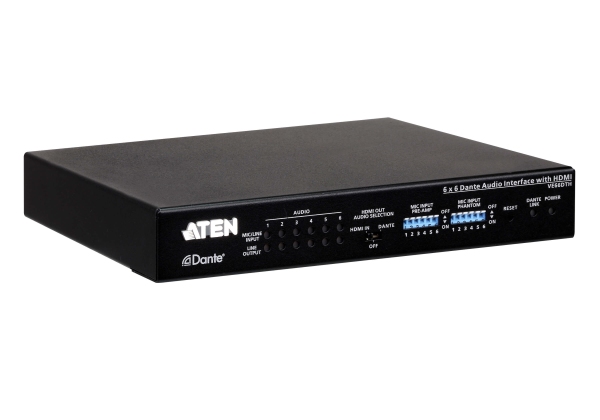

ATEN VE66DTH is a Dante-enabled six-input/six-output Audio Interface with HDMI. Using Dante™ – the most popular audio networking solution created by Audinate, the VE66DTH is capable of delivering uncompressed, close-to-zero latency digital audio signals across your standard IP network. The VE66DTH transmits and receives up to 6-channel of audio inputs and outputs via a Dante network – the audio inputs can support not only the line input but also the dynamic and condenser microphones at the same time. Additionally, the device can also provide condenser microphones with 48V Phantom power supply. With its built-in PoE (Power over Ethernet), the VE66DTH can be powered by a compatible PSE device through Ethernet cable. Moreover, the VE66DTH provides flexible audio capability with audio de-embedding and embedding. It can de-embed HDMI stereo audio signals to the Dante networking system and embed Dante audio signals into the HDMI output.

The VE66DTH is tailor-made to a wide range of environments, such as conference centers, concert halls, entertainment facilities or wherever that requires implantation of Dante-based professional audio devices for extended and flexible networked AV applications. Users of the VE66DTH can benefit from improved system performance, reduction in cabling and more to installations of all sizes.

Features

Features Dante™ networked audio interface – a complete audio networking solution that distributes uncompressed, multi-channel audio transmission via standard Ethernet networks, with near-zero latency and perfect synchronization
Integrates up to 6-channel balanced mono audio Line/Mic input signals onto a Dante-enabled audio system and supports both dynamic and condenser microphones
Provides 48V Phantom power supply to condenser microphones
AES67 support
Easy to use and set up – User can use ”Dante Controller” for the simple setup
Delivers up to 6-channel balanced mono audio Line outputs from the Dante network to the audio system
Supports HDMI 2.0 input with HDCP 2.2 compliant – the HDMI input can de-embed HDMI stereo audio to the Dante network
Supports HDMI 2.0 local output – the VE66DTH can embed the Dante audio into HDMI output
Supports PoE – power can be supplied by a compatible PSE device through Ethernet cable


Package Contents
1x VE66DTH 6 x 6 Dante Audio Interface with HDMI
6x 5-Pole Terminal Blocks
4x Foot Pads
1x Mounting Kit
1x Power Adapter
1x User Instructions
