Popis produktu:

Connectors
Video In 2 x HDMI Type A Female (Black)
USB Port USB 3.2 Gen1 Type-B Male (Blue)

(USB-B to USB-C and USB-B to USB-A cable package included)
Video Output 1 x HDMI Type A Female (PGM Video, Black)
Audio Inputs 1x balanced analog audio via XLR connectors
1x unbalanced audio via RCA connectors.
Video Resolution Video input:
2160p30/25/24, 1080p60/50/30/25/24, 720p60/50, HDMI 1.4b support

PGM video out:
1080p60/50/30/25/24, 720p60/50, HDMI 1.4b support (unencrypted)
(Support encrypted PGM output at 2160p30/25/24, 1080p60/50/30/25/24, 720p60/50 with UVC capture disabled)

Audio Sampling 16-bit PCM audio, 44.1KHz and 48KHz
Output Uncompressed 1080p60 & 720p60 UVC video stream with UAC audio
(Uncompressed video stream is only available on USB3.1 connection)
Environmental
Operating Temperature 0 - 40 oC
Storage Temperature -20 – 60 oC
Humidity 0 - 80% RH, Non-Condensing
Minimum Hardware Requirements PC/Mac:
CPU: Intel® i3 Dual Core 2.8Ghz or higher
RAM: 4GB or more
One USB-C interface or USB-A interface

Smartphone:
Android device with UVC support and USB-C interface*

*For detail UVC compatible device list, please refer to following info revealed by third party App. https://www.camerafi.com/supported-devices/
Connection Bluetooth Low Energy(BLE) technology
OS Support Windows 10 and above *
Mac OS X 10.13 and above
Android 5.x and above or iOS 10.1 and above , with Bluetooth 4.2 or higher supporting Bluetooth Low Energy (BLE)

*Window 7 requires driver installation
Physical Properties
Housing Metal
Weight 0.68 kg ( 1.5 lb )
Dimensions (L x W x H) 13.00 x 15.18 x 4.25 cm
(5.12 x 5.98 x 1.67 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

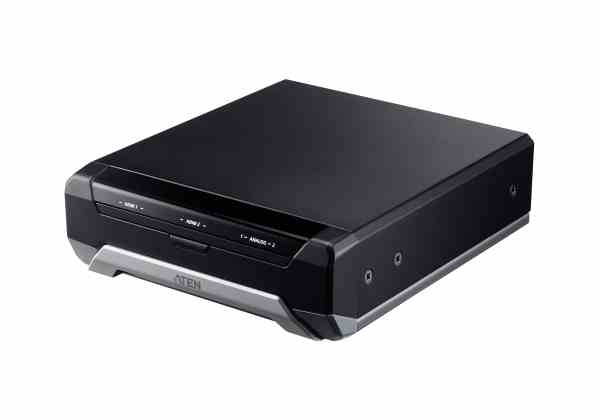

The CAMLIVE™ PRO is designed to easily capture and mix the two connected 4K video sources in FHD format for livestream purpose with outstanding video effects and remarkable image quality. It supports easy switch between multiple connected sources and combine them for a rich information delivery in steaming. In addition, it automatically converts the sources to cleanlooking USB video format in 720P or 1080P, which is sent to your laptop/smartphone via USB.The CAMLIVE™ PRO provides an intuitive ATEN OnAir Lite App. This App places everything you need to customize your video stream right at your fingertips. You can make it look like you are anywhere by changing the background for eye-popping effects. With just the CAMLIVE™ PRO, companion app, and your laptop / smartphone, you have all the devices you need to present engaging livestreaming that will rival the most advanced streamers on social media and provides an easy-to-use solution.

Mix and capture two non-HDCP 4K live videos at 1080P UVC format on PC or mobile device via USB 3.x interface with seamless transition
Intuitive Android / iOS App control – set up your camera gear and direct your show from anywhere
Supports real-time HDMI program video preview
Easily identifiable chroma keys – can make the video look like you are anywhere by changing the background
Provides audio mixer with additional dual analog audio inputs
Supports protected video switching mode for regular event usage
Compatible with USB & Thunderbolt 3 (USB-C) specification specification

Enhance Your Conferencing Experience
Effortless One-person Dual-camera Video Production and Livestreaming

A Professional One-Person Production Studio
Providing the most fluid video streaming workflow for dual camera / single operator setups, CAMLIVE™ PRO is a video capture and switch device that can turn any professional 4K camera, camcorder, or GoPro into an HDMI video source for a computer or mobile device to stream, coupled with the incredibly feature-rich DVE (Digital Video Effect) options and chroma keyer. Just connect a camera, mic, and laptop, and you are ready to stream and switch between two video inputs.

4K Capture, Stream, and Switch Instantly
CAMLIVE™ Pro is designed to easily connect with two 4K video sources and mix and stream in FHD format to a worldwide audience with outstanding video effects and professional full HD quality. It’s completely plug and play and compatible with any streaming software and social media platform, such as Skype, Teams, Zoom, OBS, YouTube, and Facebook. For streamers who want to make interviews, presentations, or even live events, using CAMLIVE™ PRO is easy and fast!

Free ATEN OnAir Lite Control App with Continuous Updated Features
The ATEN OnAir Lite control app allows for controlling remotely, editing in real-time, chroma keying, and arranging multi-elements into your program mix. You can switch and mix video/audio, change settings and effects, and save up to 8 scene presets for quick switching. Upcoming new features will include command shortcuts for chats, animations, and sound effects, all to help streamline your workflow.

Direct Your Livestream Workflow via Bluetooth
You don’t need to stay by your equipment or hire a person to help direct your show. Simply use Bluetooth, and the OnAir Lite app, to connect your smartphone to the UC3022. A single user can easily produce pro-level video content with smooth transitions and pro-looking effects, without any production crew required.

Make Your Livestreaming Unique with DVE (Digital Video Effect) and Chroma Keyer
The built-in DVE lets you create professional picture-in-picture and picture-by-picture effects with amazing transitions. With 4K resolution input capability, you can even split, crop, or scale images and insert them into different scenes without losing any image quality. The most exciting is using chroma keying with eye-poping effects for a superior finish.

Incredibly Portable and Powerful
This micro device packs several features in one and its lightweight design makes it possible to fit in any case so you can take it to any live event or production.

Stream Presentations, Conferences, Lessons, Worship Services, and More!
CAMLIVE™ PRO is an extremely versatile product that allows you to create pro-level video productions in a wide variety of situations. With it you can stream live video for interviews, corporate conferences / webinars, school lectures, church worship services, or live events, all in full HD quality.

Package Contents
1x UC3022 CAMLIVE™ PRO Dual HDMI to USB-C UVC Video Capture
1x USB-B to USB-C Cable
1x USB-B to USB-A Cable
1x Power Adapter
1x User Instructions
