Popis produktu:

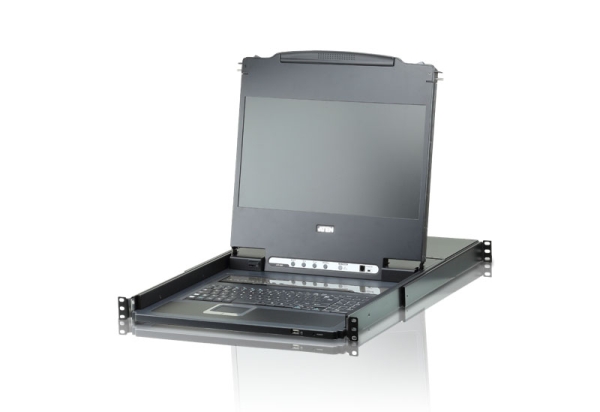

The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – which integrates an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.

Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.

To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions

Features:

Integrated KVM with a 17.3” Widescreen DVI Full HD LCD monitor
¦ Single rail, sliding housing with top and bottom clearance for smooth operation in a 1U rack
¦ Controls eight Single Link DVI computers
¦ Supports an external console with DVI video port
¦ Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
¦ KVM port extendable via one-level cascade (up to 8 additional CS1768 8-port KVM switches)
¦ Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
¦ Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
¦ Firmware upgradable
¦ Supports YUV video format for greater compatibility
¦ DVI monitor support – fully compliant with DVI specifications
¦ Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes responsiveness when switching between ports
Note: Video DynaSync™ only works with digital video sources
¦ HDCP-compatible for hassle-free content-protected media playback
¦ Superior video quality – 1920 x 1080 @ 60Hz; DDC2B
¦ Adjustable depth to fit within the rack
¦ Audio support for connecting speakers
¦ Auto Scan Mode for monitoring all computers
¦ Multiplatform support – Windows, Linux, Mac, Sun
¦ Console lock – enables the console drawer to remain securely locked away in position when not in use


Package Contents
1x CL6708MW Single Rail 8-Port DVI FHD LCD KVM Switch with Standard Rack Mount Kit
2x 2L-7D02U Custom USB DVI KVM Cable Set
1x LIN2-418K-E12G Power Cord
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x User Instructions
