Popis produktu:

DVI dual link extender pro konzoli s USB klávesnicí a myší, vzdálenost až 60 metrů přes Cat. 5 STP/FTP, ochrana proti přepětí, úchyty do 19" racku

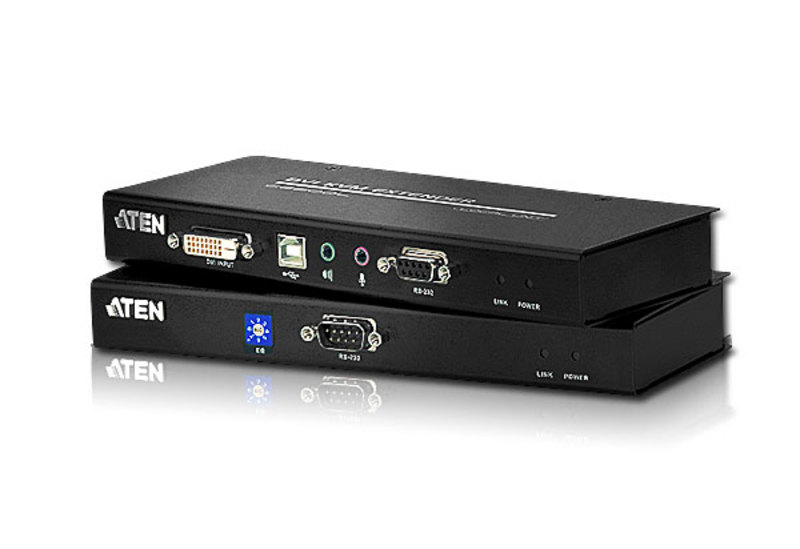

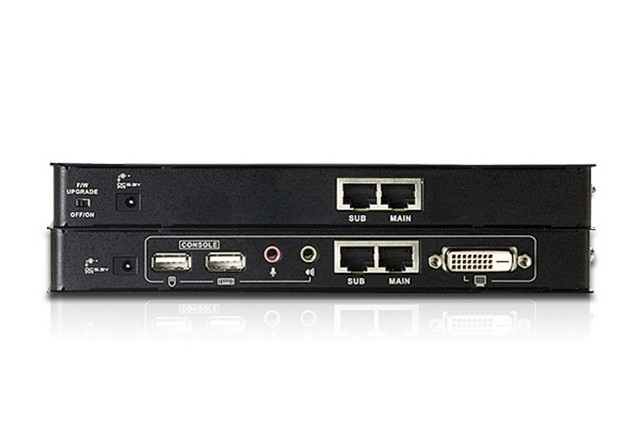

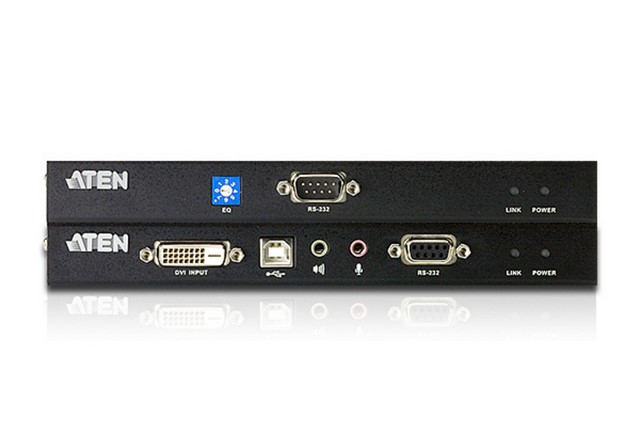

The CE602 is a DVI Dual Link and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE602 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.

The CE602 can support up to 2560 x 1600 (DVI Dual Link) resolution. It uses two Cat 5e cables for HDCP, RS-232, microphone and dual link signals. You can also use just one Cat 5e cable if using single link connections.

Local and Remote Units connect at distances up to 60 m using Cat 5e cable
Allows access to a computer or KVM installation from a remote console (up to 60 m)
Supports DVI-D interface and allows transmission of DVI duallink signals
Features ATEN technology that allows A/V transmission over one cat 5e cable
The 2nd Cat 5e cable is used for HDCP, RS-232, microphone and dual link signals
Manual compensation control to adjust signal strength in order to compensate for distance
RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)
Audio Enabled – supports stereo speakers and microphone
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Supports Wide Screen formats
Superior video quality of up to 2560 x 1600 @ 60 Hz (DVI Dual Link) at 40 m; 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions
Hot pluggable
Rack mountable
Easy to install – no software required – connecting cables to the devices is all it takes
Firmware upgrade

Package Contents
1x CE602L DVI KVM Extender (Local Unit)
1x CE602R DVI KVM Extender (Remote Unit)
1x 1.8 m USB DVI-D Dual Link KVM Cable Set
2x Power Adapters
1x Mounting Kit
1x User Instructions


K výrobku je k dispozici pouze manuál v angličtině (nemá český manuál).
