Popis produktu:

Video Input
Interfaces 1 x DisplayPort Male (White)
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Video
Max. Pixel Clock 600 MHz
Max. Resolution 4096x2160@60Hz / 3840x2160@60Hz
Compliance DP1.2a / HDMI 2.0 / HDCP 2.2
Max. Data Rate 18 Gbps (6 Gbps Per Lane)
Audio
Output 1 x HDMI Type A Female (Black)
Environmental
Operating Temperature 0 - 50 oC
Storage Temperature -20–60 oC
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Plastic
Weight 0.04 kg ( 0.09 lb )
Dimensions (L x W x H) 18.00 x 4.50 x 1.50 cm
(7.09 x 1.77 x 0.59 in.)
Carton Lot 40 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

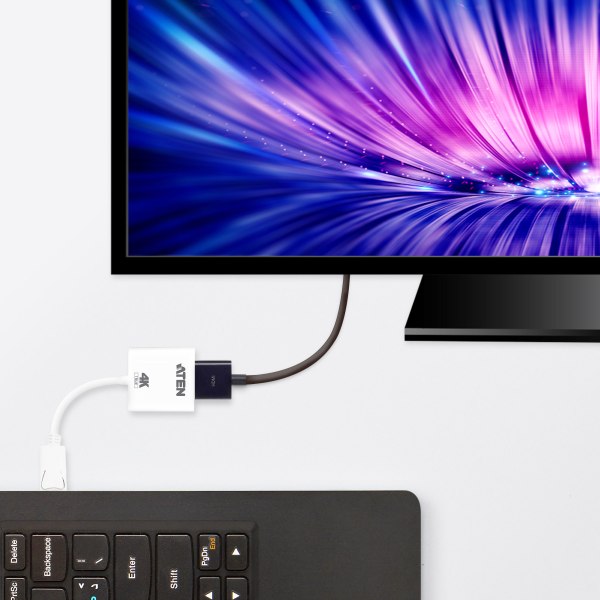

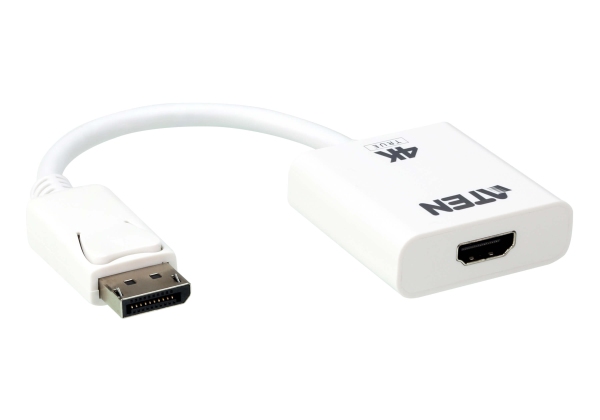

The VC986B is an active DisplayPort to HDMI adapter that allows you to connect your DisplayPort output device to the HDMI input of a True 4K TV or any other display.

The ATEN VC986B is an active adapter, featuring an advanced chip which ensures stable video signal conversion even when the video source does not support Dual-Mode DisplayPort (DP++).* Moreover, support for resolutions up to True 4K makes this adapter ideal for users who require a high performance signal conversion solution.

*Dual-Mode DisplayPort (DP++) can directly process the signal from DisplayPort to HDMI or DVI signals.

Converts DisplayPort signals to HDMI output
Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to True 4K
Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support Dual-Mode DisplayPort (DP++)
Supports AMD Eyefinity™ Technology (multi-screen setups)
Audio supported
No software or driver installation required
DisplayPort 1.2 compliant

Plug-n-Play
No installation software or drivers required. The VC986B is the perfect solution for connecting DisplayPort inputs to HDMI output displays. The built-in chip ensures high quality signal conversion, smooth output, and compatibility with DP++.

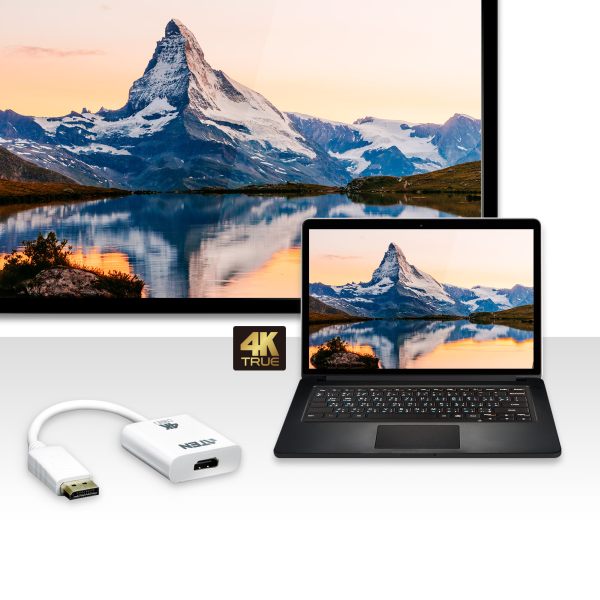

Supports True 4K
Supports resolutions up to True 4K, making it highly compatible across devices.

Superior Signal Quality

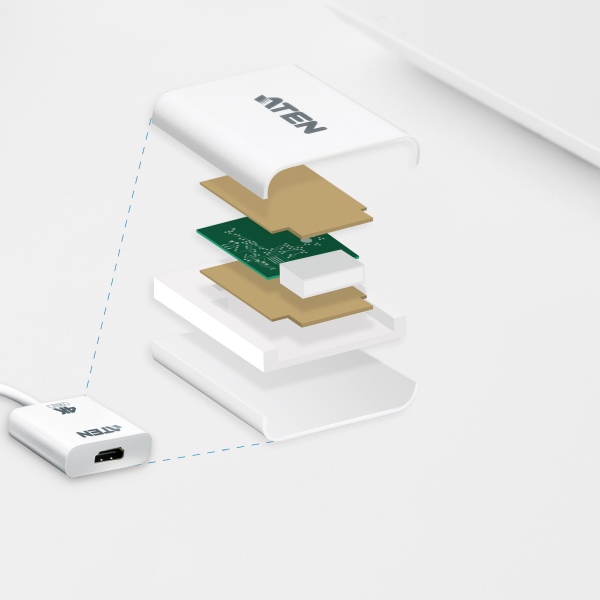

The internal copper foil shielding protection ensures signal integrity and minimizes external interference, giving you extra reliable and superior quality signals.

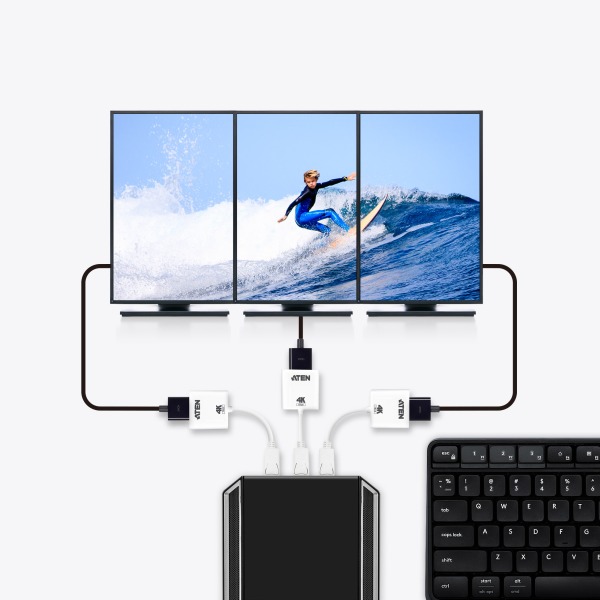

Supports Multi-Screen Technology
Compatible with AMD Eyefinity graphics cards for multiple display applications.

Package Contents
1x VC986B True 4K DisplayPort to HDMI Active Adapter
