Popis produktu:

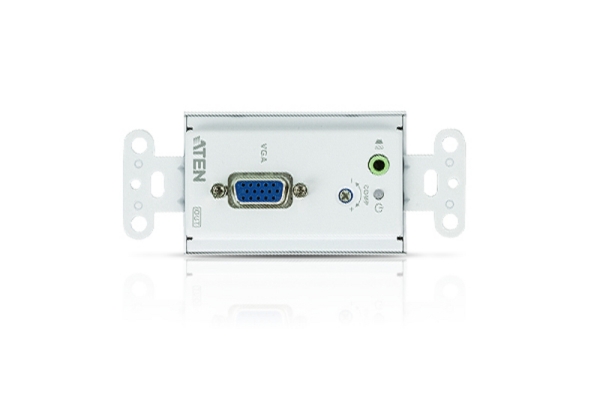

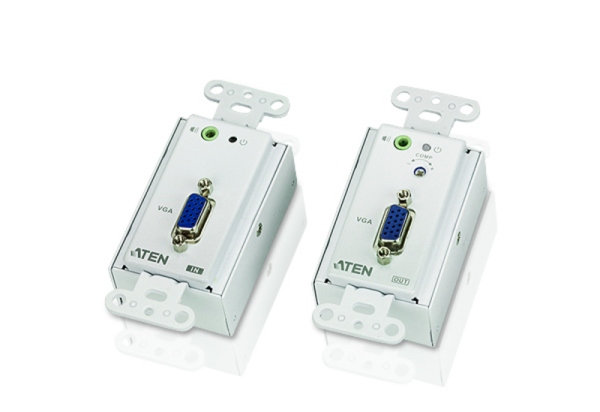

The VE156 VGA Over Cat 5 Extender Wall Plate extends VGA and audio signals up to 150m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE156 combination can further extend the distance or multiply sources/displays.

The VE156 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE156’s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.

Features:

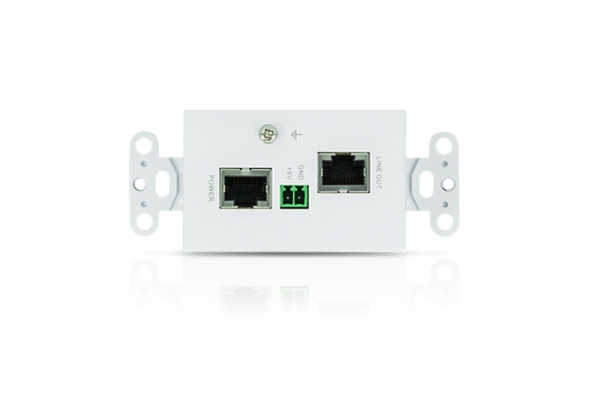

   Uses two Cat 5e cables to connect the local and remote units – one to transmit video and audio; and another for power*
   Remotely powered from either the Transmitter or Receiver side**
   Extends the distance between VGA source and VGA display
   Superior video quality – up to 1920 x 1200@60Hz (30 m), 1280 x 1024@60Hz (150m)
   Adjustable Gain Control – manually adjusts signal strength to compensate for distance
   Supports wide screen formats
   Supports hot-plugging
   Decora type design is easily configurable to fit various wall plates
   LED indication of power sources / connection status
   Supports stereo audio
   Built-in 8KV/15KV ESD protection
   Easy installation
   Wall mountable type for a neat and cleaner installation
   Plug-and-play – no software installation required

   Note:
   The second Cat 5e cable connection is required to remotely power on either the Transmitter or Receiver.
   **A power adapter is provided with this package, and can be used at either the Transmitter or Receiver side, which in turn remotely powers the other unit.

Package Contents

   1 x VE156T VGA Over Cat 5 Extender Wall Plate
   1 x VE156R VGA Over Cat 5 Extender Wall Plate
   1 x JCNT-3301-102G Terminal Block Connector
   1 x 0AD6-1909-06EG Power Adapter
   1 x User Instructions
