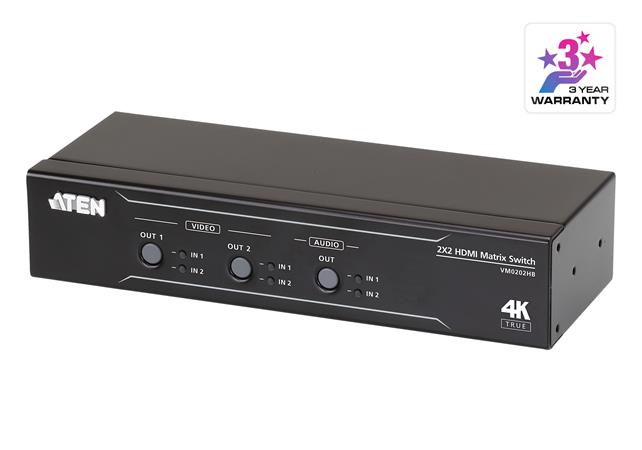

The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding. The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio. Supporting video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications.

The VM0202HB matrix switch delivers superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), and also provides highperformance routing of 2 HDMI video sources such as highdefinition Blu-ray players, home theater PCs, camcorders, DVD players, satellite boxes and stand-alone streaming media players to any 2 HDMI displays. In addition, the built-in audio deembedder allows HDMI audio extraction for independent analog audio output with ease. For efficient control and management, VM0202HB’s remote control and front-panel pushbuttons provide a convenient way to cycle through HDMI video and audio sources with clear LED indication of the selected source.

Features:

Connects 2 HDMI sources to any 2 HDMI displays
Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR
Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio
Supports Dolby True HD and DTS HD Master Audio
Auto switching – automatically detects and switches to a new source once connected (Default: off)
Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control
Long-distance transmission up to 5 meters
HDMI (3D, 4K, Deep Color); HDCP 2.2 Compatible
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
EDID Expert™ – selects optimum EDID settings for smooth power-up,high-quality display and use of the best video resolution across different screens
Supports ATEN’s Lock Pro™ HDMI cable lock for secure HDMI cable connections
All metal casing
Firmware upgradable
Rack mountable


Package Contents
1x VM0202HB 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
1x 3-pole Terminal Block
1x Power Adapter
1x IR Remote Control
1x IR Receiver
1x Rack Mount Kit
1x User Instructions
