Popis produktu:

Ultra Seamless Switching with Scaler – zero second switching without any latency while scaling for the best output resolution ensures extra smooth presentations
Bi-directional Distance-free Streaming – Go live to stream out HD video to up to 5 remote sites or stream in content from a remote site via an intuitive web GUI
Built-in Audio Mixer – supports dynamic/condenser microphone input with selectable 48V Phantom Power and allows mic input to be mixed with program audio
Multi-view Flexibility – display and switch simultaneously up to six sources on PiP (picture in picture) PbP (picture by picture), quad-view, and more

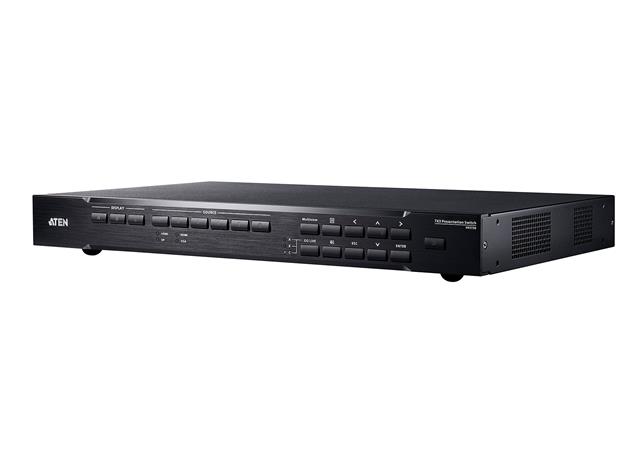

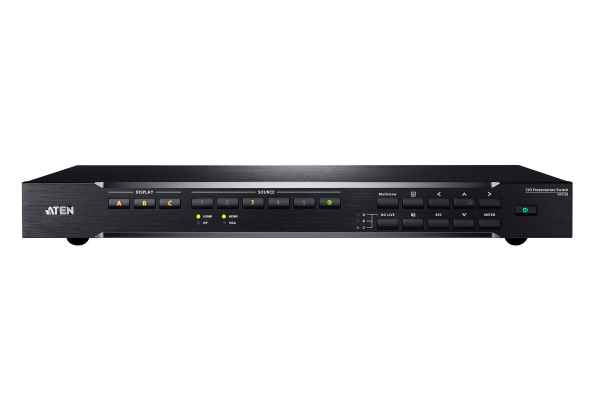

VP2730 is a multi-in-one presentation switch that integrates video matrix switch with scaler, streaming, audio mixer, HDBaseT extender, and analog-to-digital converter functions into one compact device. With seven multi-format inputs to two HDMI and one HDBaseT high-definition outputs, VP2730 empowers larger meetings and facilitates collaboration between local and remote participants in boardrooms, video conferencing rooms, lecture halls or distance learning classrooms.
With the user in mind, VP2730 comes with a straightforward and accessible OSD and Web GUI to streamline operation for both local and remote participants. To facilitate sharing and collaboration with no distance limitations, VP2730 not only allows the meeting moderator to share video content to up to five remote sites, but also enables remote sites or local participants to wirelessly stream in their content for discussion. The moderator can monitor and switch among sources in any variation of full-screen, dual-view, tri-view, quad-view or PIP modes, with up to six sources displayed simultaneously on one screen.
VP2730 also features more advanced meeting management functions: Moderator Mode enables the meeting moderator to control other displays via the host display; Chat Room facilitates meeting communications; while Screen Capture and Freeze record and control the meeting flow. This Collaborative presentation solution facilitates distance-free content sharing along with advanced audio, simplifying AV integration via eliminating the need for numerous individual components and the compatibility challenges that accompany them.

Features:

Seamless Multi-format AV Switching

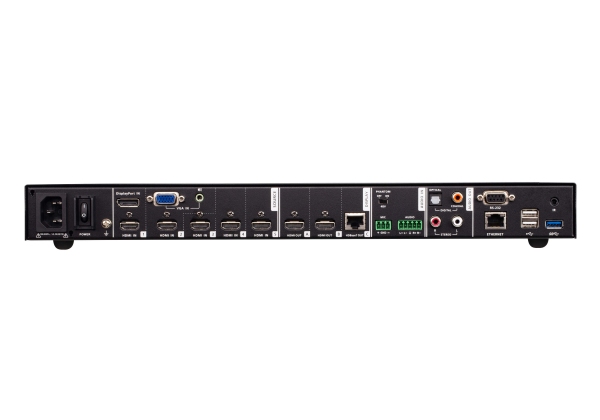

Supports multi-format 7 Inputs:
•  2 combo inputs (HDMI/VGA, HDMI/DisplayPort)
•  3 HDMI inputs
2 HDMI and 1 HDBaseT outputs
Superior video quality up to 1080p @ 60Hz (HDMI/DisplayPort)
Ultra Seamless Switch™ – zero second switching that provides continuous video streams, real-time switching and stable signal transmissions
Scaler – features a video scaling function to convert input resolutions to the optimum display resolutions
Flexible aspect ratio conversion

1080p Streaming for Distance-free Sharing and Collaboration
Go Live – meeting moderator can broadcast HD video streams to up to 5 remote locations
Streaming In – remote locations can stream and share content to the meeting moderator at any distance via intuitive web GUI
Streaming Queuing – shares the streamed-in content approved by the meeting moderator one at a time to help manage the meeting flow


Audio Mixer Integration for Advanced Applications
Audio Mixer – allows mixing of the microphone inputs to any external analog or digital audio output device
Embed/De-embed Audio – HDMI/DisplayPort audio signals can be extracted to separate digital/analog audio signals; Mic/Line audio can be embedded to HDMI audio
Supports multi-format digital/analog audio outputs, including coaxial, TOSLINK and RCA

Seamless Multi-format AV Switching
Supports multi-format 7 Inputs:
•  2 combo inputs (HDMI/VGA, HDMI/DisplayPort)
•  3 HDMI inputs
2 HDMI and 1 HDBaseT outputs
Superior video quality up to 1080p @ 60Hz (HDMI/DisplayPort)
Ultra Seamless Switch™ – zero second switching that provides continuous video streams, real-time switching and stable signal transmissions
Scaler – features a video scaling function to convert input resolutions to the optimum display resolutions
Flexible aspect ratio conversion


1080p Streaming for Distance-free Sharing and Collaboration
Go Live – meeting moderator can broadcast HD video streams to up to 5 remote locations
Streaming In – remote locations can stream and share content to the meeting moderator at any distance via intuitive web GUI
Streaming Queuing – shares the streamed-in content approved by the meeting moderator one at a time to help manage the meeting flow


Audio Mixer Integration for Advanced Applications
Audio Mixer – allows mixing of the microphone inputs to any external analog or digital audio output device
Embed/De-embed Audio – HDMI/DisplayPort audio signals can be extracted to separate digital/analog audio signals; Mic/Line audio can be embedded to HDMI audio
Supports multi-format digital/analog audio outputs, including coaxial, TOSLINK and RCA


Advanced Conferencing Management Features for Collaboration
Multi-view – displays and switches simultaneously in any variation of full-screen, dual-view, tri-view, quad-view or PIP modes, with up to six sources displayed simultaneously on one screen
Moderator Mode – enables the meeting moderator control other displays via host display
Chat Room – facilitates real-time and precise communication among remote participants
Screen Capture – captures anything on your screen with a click
Freeze – freezes the screen for discussion or to control the meeting flow

Streamlined Operation
Multiple Control Options – flexible control via built-in Web UI, Front Panel, OSD, IR Remote Control, and RS-232
Auto switching – automatically detects and switches to a new source as soon as it is connected for time-saving and convenience
