Popis produktu:

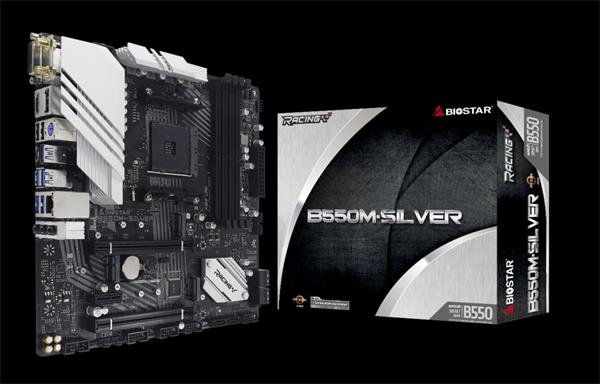

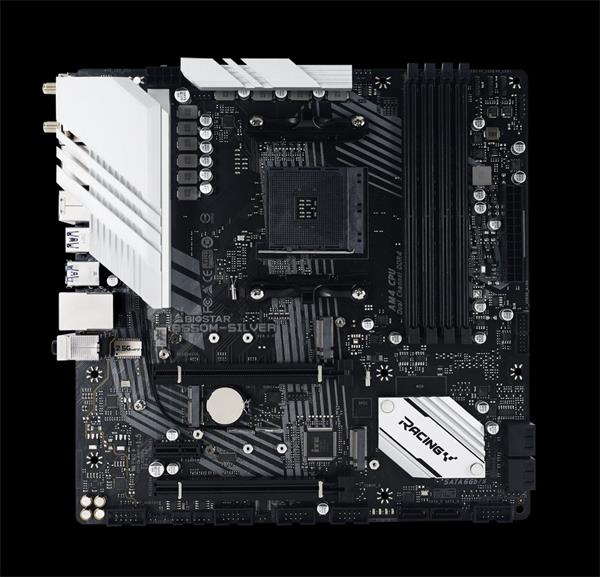

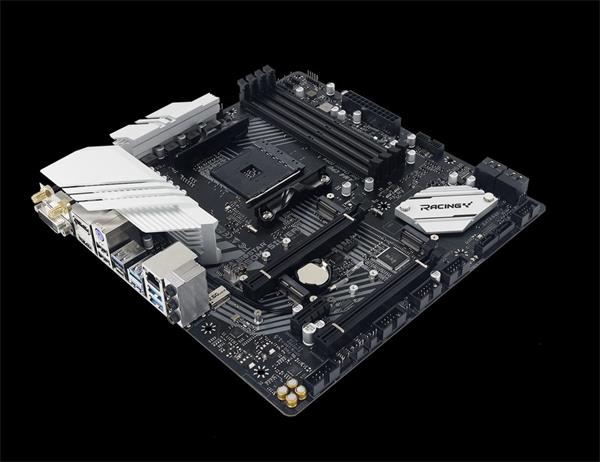

Základná doska BIOSTAR B550M-SILVER Micro-ATX je vybavená čipsetom B550 pre socket AMD AM4 a podporuje procesory Ryzen 5000 Vermeer. Je dobre postavený, odolný a s množstvom funkcií, ako je oficiálna podpora PCIe 4.0, PCIe M.2 4.0, Debug LED, 2.5Guard, AI TP Control a rozhranie Intel Wi-Fi 6, všetky funkcie sú viac ako potrebné na plnohodnotný zážitok z hrania.

Výhody
Podporuje procesory AMD Ryzen 3rd Gen (Matisse/Renoir) a 4th Gen (Vermeer)
Jednočipová architektúra AMD B550
Podporuje 4-DIMM DDR4 od Renoir Processors-4933+(OC)/4800(OC)/4600(OC)/4400(OC)/4000(OC)/3800(OC)/3600(OC)/3200/2933/2667/2400/2133 až do maximálnej kapacity 128 GB
Podporuje USB 3.2 Gen2
Podporuje PCIe M.2 4.0 (64 Gb/s)
Podporuje HDMI 2.1 4K rozlíšenie
Podporuje WiFi 6 (karta Wifi 6 nie je súčasťou balenia)

Špecifikácia

Chipset
AMD B550

CPU SUPPORT
Socket AM4 support AMD Ryzen™ 3rd Gen (Matisse/ Renoir) and Ryzen™ 4th Gen (Vermeer) processors
Support for future AMD Ryzen processors with BIOS update
* Please refer to www.biostar.com.tw for CPU support list.

MEMORY
4th Gen AMD Ryzen Processors (Vermeer CPUs):
Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133/ 1866
3rd Gen AMD Ryzen Processors (Matisse CPUs):
Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133/ 1866
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs):
Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133/ 1866
4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.

INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP

STORAGE
Total supports 2x M.2 socket and 6 x SATA III (6Gb/s) ports
6x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA):
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCI-E 4.0 x4 (64Gb/s)/ 3.0 x4 (32Gb/s) & SATA III (6.0Gb/s) SSD
1x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA):
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCI-E 3.0 x4 (32Gb/s)& SATA III (6.0Gb/s) SSD
* M.2 (M Key) Socket (M2_PCIEG4_64G_SATA) : The bandwidth is depended on CPU. Supports PCI-E 4.0 x4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse and 4th Gen Vermeer CPUs.
* When M.2 (M2_PCIEG3_32G_SATA) slot is occupied by SATA mode, the SATA_5 connector will be disabled.
* When M.2 (M2_PCIEG3_32G_SATA) slot is occupied by PCI-E mode, the SATA_5/ SATA_6 connector will be disabled.

LAN
Realtek RTL8125B
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
Supports Realtek 2.5GbE LAN

AUDIO CODEC
ALC1150
7.1 Channels, High Definition Audio, Hi-Fi (Front)

USB
1 x USB 3.2 (Gen2) Type-C port (1 on rear I/O)
1 x USB 3.2 (Gen2) port (1 on rear I/O)
6 x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)

EXPANSION SLOT
1 x PCIe 4.0/ 3.0 x16 Slot (PCIEG4X16):
Supports PCIe 3.0 x 16/ 4.0 x16 mode with AMD Ryzen™ processors.
Supports PCIe 3.0 x 16 mode AMD Ryzen™ with Radeon Vega Graphics processors.
1 x PCIe 3.0 x16 Slot (PCIEG3X4): Supports x 4 mode
1 x PCIe 3.0 x1 Slot
* According to different CPUs will have different speeds.
* PCIe 4.0 speed only for AMD Ryzen™ 3rd Gen Matisse and 4th Gen Vermeer CPUs.
* When using PCIe x1 slot (PCIEG3X1), PCIe x16 slot (PCIEG3X4) will be adjusted to x1 mode.

REAR I/O
2 x WIFI Antenna Port
1 x PS/2 Keyboard / Mouse
1 x DVI-D Port
1 x DP Port
1 x HDMI Port
1 x LAN port
1 x USB 3.2 (Gen2) Type-C Port
1 x USB 3.2 (Gen2) Port
4 x USB 3.2 (Gen1) Port
2 x USB 2.0 Port
3 x Audio Jack

INTERNAL I/O
6 x SATA III (6.0Gb/s) Connector
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
2 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x S/PDIF out Connector
1 x COM Port Header
2 x LED Header (5V)
1 x LED Header (12V)
* M.2 (E key) Wi-Fi card is not provided

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

DIMENSION
Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )

OS SUPPORT
Supports Windows 10(64bit) / 11(64bit)
*Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE
Racing GT Utility
BullGuard

ACCESSORIES
4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide

FEATURES
VIVID LED DJ
A.I FAN
PCIe M.2 4.0
LED ROCK ZONE
