Popis produktu:

Potrebujete si zostaviť perfektný počítač? Presne pre Vaše potreby je tu BIOSTAR RACING B560GTQ, ktorého základom je čipset B560 a ponúka plnú podporu pre najnovšie procesory Intel 11. generácie s podporou PCIe 4.0. Ponúka vynikajúci výkon pri rôznych činnostiach napríklad pri upravovaníť fotografií, videí, dokonca aj pri streamovaní hier! Či už hľadáte tvorivý počítač, ktorý Vám s ľahkosťou pomôže dokončiť Váš veľký projekt, alebo základ hernej zostavy nájdete ho tu!

Výhody
Podporuje 10./11. generáciu procesorov Intel Core™
Jednočipová architektúra Intel B560
Podporuje 4-DIMM DDR4- 2133/ 2400/ 2666/ 2800/ 2933 3200/ 3600 (OC)/ 3733 (OC)/ 3800 (OC)/ 3866 (OC)/ 4000+ (OC) až do 128 GB pamäte
Podporuje PCIe 4.0
Podporuje PCIe M.2 4.0 (64 Gb/s)
Podporuje technológiu Intel Optane
Podporuje HDMI 2.0
Podporuje 2,5 GbE LAN
Podporuje USB 3.2 Gen2x2 Type C
Podporuje modul WiFi 6 (bez karty WiFi 6 súčasťou balenia)

Špecifikácia

Chipset
Intel B560

CPU SUPPORT
Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
Supports Intel Turbo Boost Max 3.0 Technology
* Please refer to www.biostar.com.tw for CPU support list.

MEMORY
Supports Dual Channel DDR4 4000+(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133
4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.

INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP

STORAGE
-- Total supports 2 x M.2 socket and 6x SATA III (6Gb/s) ports
6 x SATA III Connectors (6Gb/s) : Supports AHCI & Intel Rapid Storage Technology
1 x M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY):
Supports M.2 Type 2280 SSD module
Supports PCI-E 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD
Support 11th Gen processor only
1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST_1):
Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module
Supports PCI-E 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD
Supports Intel Rapid Storage Technology and Intel Optane Technology
* M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY) support 11th Gen Rocket Lake-S CPU only.
* When using SATA SSD module on M.2 slot(M2_PCIEG3_32G_SATA_RST_1), the SATA_6 connector will be disabled.

LAN
Realtek RTL8125B
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC1220
7.1 Channels, High Definition Audio, Hi-Fi(Front)

USB
1 x USB 3.2 (Gen2x2) Type-C port (1 on rear I/O)
2 x USB 3.2 (Gen2) ports (2 on rear I/Os)
5 x USB 3.2(Gen1) ports (3 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)

EXPANSION SLOT
1 x PCIe 3.0 x 1 Slot
1 x PCIe 4.0 x 16 Slot (x16 mode)
1 x PCIe 3.0 x 16 Slot (x4 mode)
* According to different CPUs will have different speeds.
* PCIe 4.0 speed only for INTEL 11th Gen CPUs.

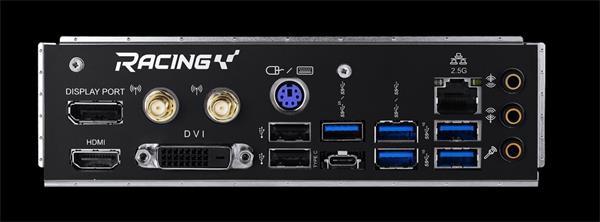

REAR I/O
2 x WIFI Antenna Ports
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI Port (HDMI2.0)
1 x DP Port
1 x DVI-D Port
1 x USB 3.2 (Gen2x2) Type-C Port
2 x USB 3.2 (Gen2) Ports
3 x USB 3.2 (Gen1) ports
2 x USB 2.0 ports
1 x 2.5 GbE LAN port
3 x Audio Jack

INTERNAL I/O
6 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
3 x System Fan Connectors
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
1 x Thunderbolt 3 Header
2 x LED Header (5V)
1 x LED Header (12V)
1 x IO LED Header
1 x SB LED Header
* M.2 (E key) Wi-Fi card is not provided

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

DIMENSION
Micro ATX Form Factor Dimension: 24.4 cm x 24.4cm ( W x L )

OS SUPPORT
Supports Windows 10(64bit) / 11(64bit)
Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE
Racing GT Utility
BullGuard

ACCESSORIES
4 x SATA Cable
1 x DVD Driver
1 x Quick Guide

FEATURES
VIVID LED DJ
M.2 Cooling Protection
Tweak Tech
BIO-FLASHER
A.I FAN
LED ROCK ZONE
RGB Memory Sync
BIOS EZ Mode /Advanced Mode
Intel Optane technology
