Popis produktu:

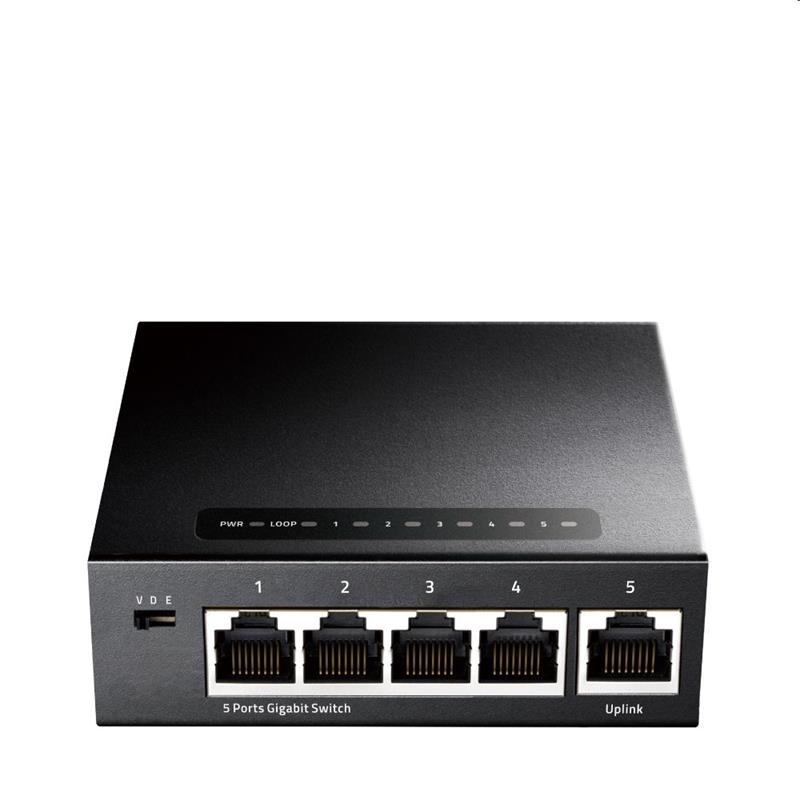

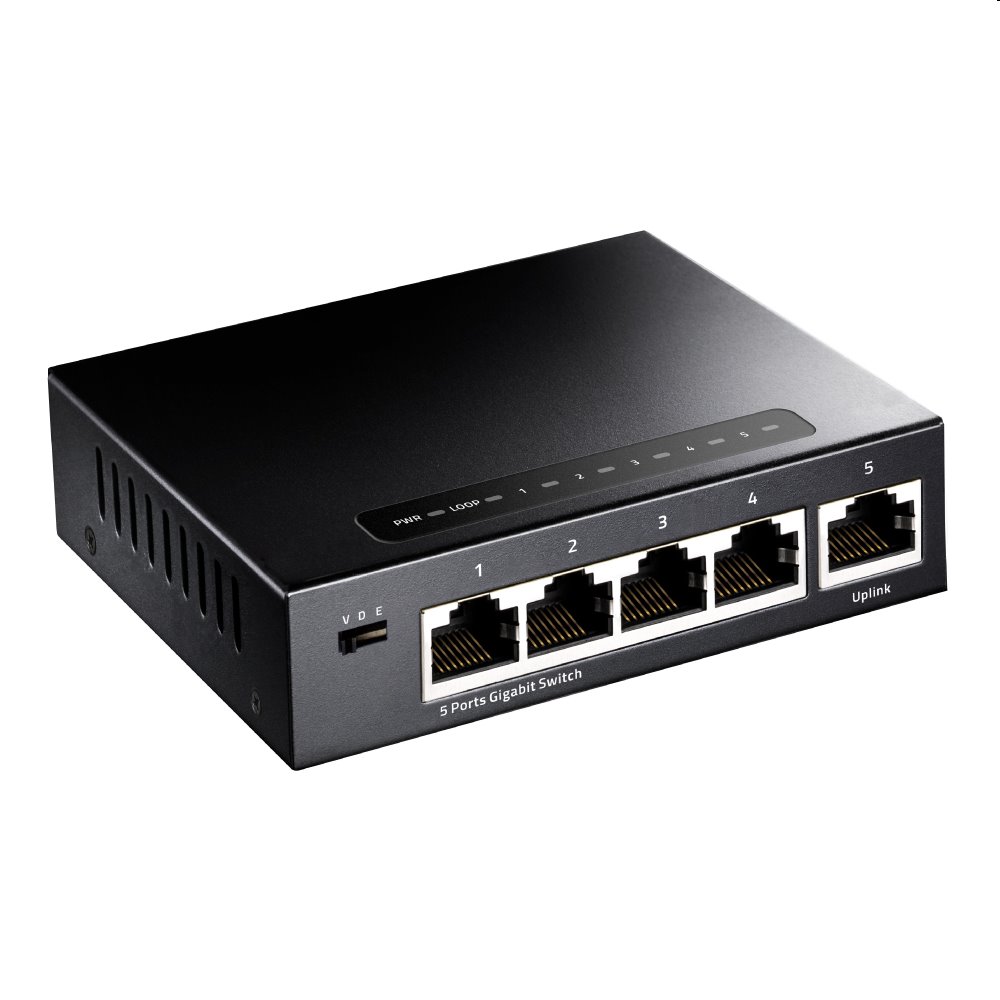

5-Port Gigabit Desktop Switch, Model: GS105

- Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
- 5 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
- Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
- Store-and-Forward switching method
- Supports 16K MAC address auto-learning and auto-agin

Specifications

Standard configuration 5 10/100/1000M RJ-45 adaptive ports
Switching Capacity 10Gbps
Throughput 7.44Mpps
Packet Buffer 1M
MAC Address 1K
Jumbo Frame 2K
Transfer Mode Store and forward
MTBF 100000 hour

Network protocol
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)

Industry Standard
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)?EN61000-4-4 (EFT)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6

Network Medium
10Base-T : Cat3,4,5 or above UTP(?100m)
100Base-TX : Cat5  or above UTP(?100m)
1000Base-TX : Cat5 or aboveUTP(?100m)

Working Environment
Working Temperature:-10~50°C
Storage Temperature:-40~70°C
Working Humidity :10%~90%,non-condensing
Storage Temperature:5%~90%,non-condensing
Working Height:Maximum10,000 feet
Storage heigh:Maximum 10,000 feet

LED Indicators PWR(Power indicator)?Link(Network Link)?LOOP(Loop alarm)

DIP Switch

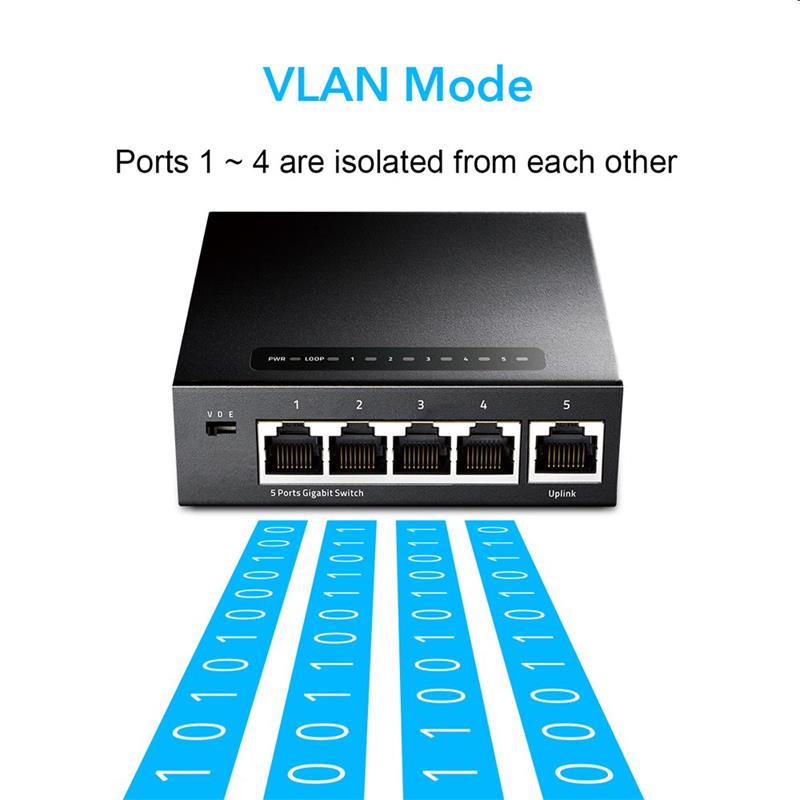

VLAN:Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 5;
Default:Default mode, Support loop alarm;
Extend:Monitor Mode, 1-4 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode,  port 7 and port 8 as uplink port

Structure Size
Product Size:100*70*26mm
Package Size:175*120*63mm
Product Net-Weight:0.2kg
Product Gross-Weight:0.4kg

Power Voltage
Power Input Voltage :AC 100-240 V

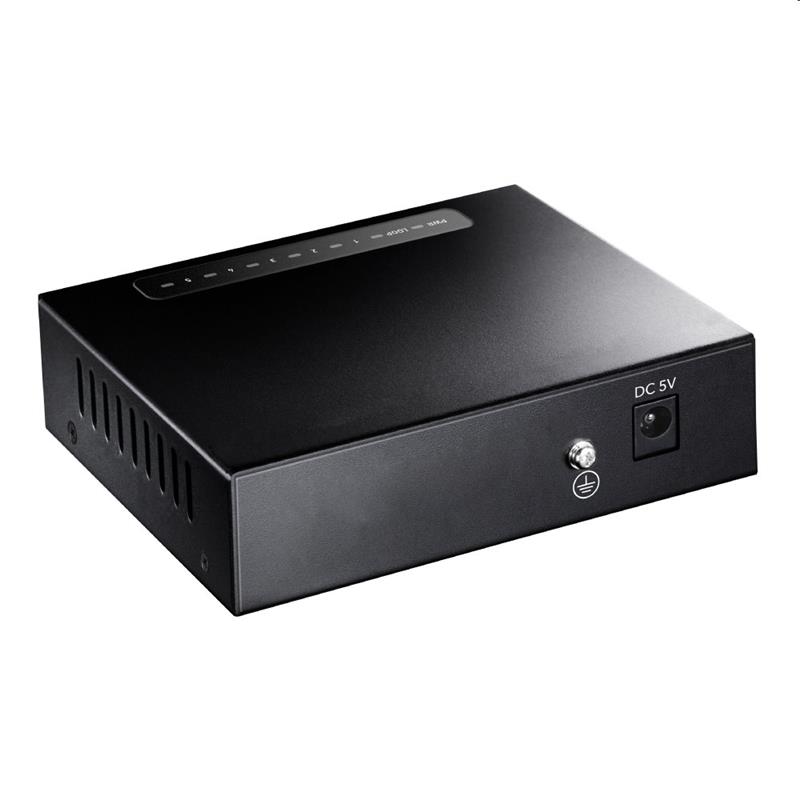

Switch Input Voltage::DC 5V
