Popis produktu:

A620I AX

   AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
   Unparalleled Performance:5+2+1 Phases Digital VRM Solution
   Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
   SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
   EZ-Latch:PCIe x16 Slot with Quick Release Design
   Fast Networks:Wi-Fi 6E 802.11ax & 2.5GbE LAN
   Extended Connectivity:DP, HDMI
   Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
   Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card


   CPU
   AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
   (Please refer "CPU Support List" for more information.)
   Chipset
   AMD A620
   Memory
   Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
   2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
   Memory Profile (XMP) memory modules
   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
   Onboard Graphics
   Integrated Graphics Processor with AMD Radeon™ Graphics support:
   - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
   * Support for DisplayPort 1.4 version.
   - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support for native HDMI 2.1 TMDS compatible ports.
   (Graphics specifications may vary depending on CPU support.)
   Audio
   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
   LAN
   Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
   Wireless Communication module
   Realtek® Wi-Fi 6E RTL8852CE
   - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
   - BLUETOOTH 5.3
   - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   (Actual data rate may vary depending on environment and equipment.)
   Expansion Slots
   CPU:
   - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
   Storage Interface
   CPU:
   - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
   Chipset:
   - 2 x SATA 6Gb/s connectors
   RAID 0 and RAID 1 support for NVMe SSD storage devices
   RAID 0 and RAID 1 support for SATA storage devices
   USB
   CPU:
   - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
   - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
   - 1 x USB 2.0/1.1 port on the back panel
   Chipset:
   - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
   - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
   - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
   Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   2 x system fan headers
   1 x addressable LED strip header
   1 x RGB LED strip header
   1 x M.2 Socket 3 connector
   2 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x speaker header
   1 x USB Type-C® header, with USB 3.2 Gen 1 support
   1 x USB 3.2 Gen 1 header
   1 x USB 2.0/1.1 header
   1 x Clear CMOS jumper
   1 x chassis intrusion header

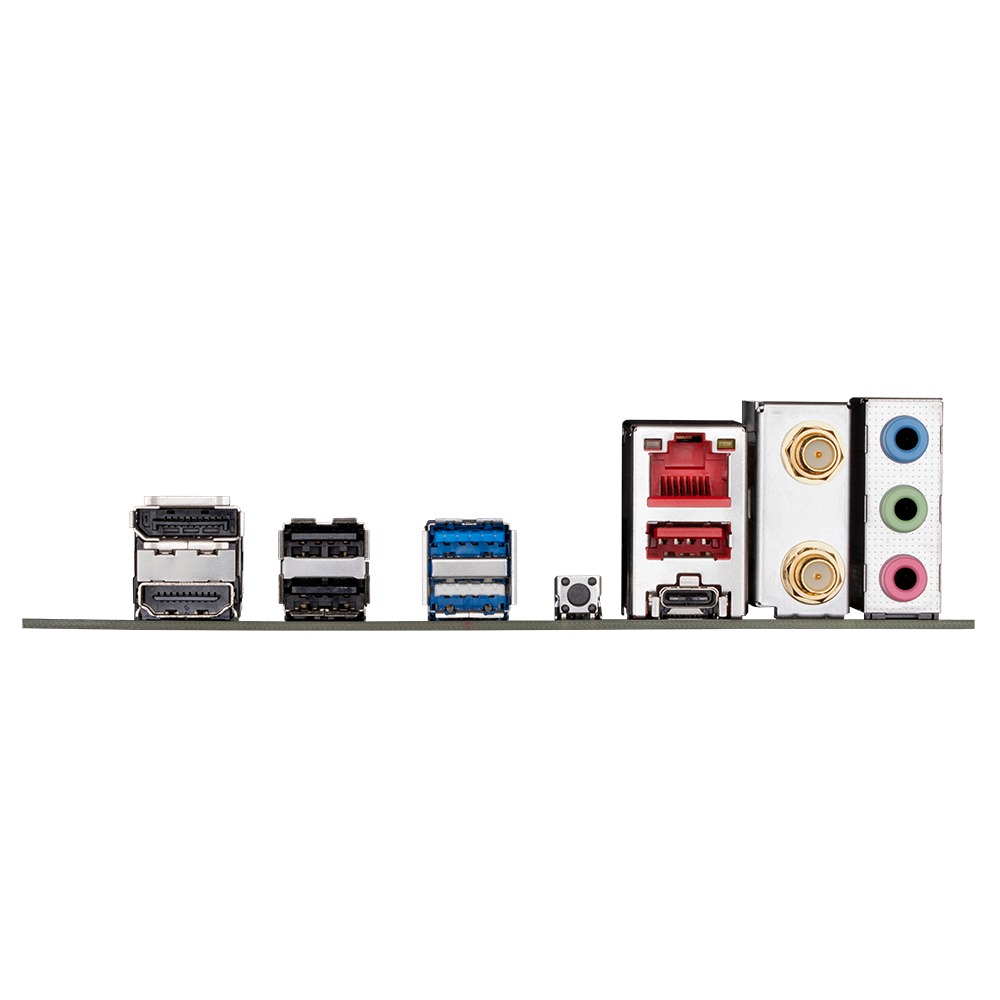

   Back Panel Connectors
   1 x DisplayPort
   1 x HDMI port
   1 x USB Type-C® port, with USB 3.2 Gen 1 support
   1 x USB 3.2 Gen 2 Type-A port (red)
   1 x USB 3.2 Gen 1 port
   3 x USB 2.0/1.1 ports
   1 x Q-Flash Plus button
   1 x RJ-45 port
   2 x SMA antenna connectors (2T2R)
   3 x audio jacks
   I/O Controller
   iTE® I/O Controller Chip
   H/W Monitoring
   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control
   * Whether the fan speed control function is supported will depend on the fan you install.
   BIOS
   1 x 256 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
   Unique Features
   Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   Support for Q-Flash
   Support for Q-Flash Plus
   Bundled Software
   Norton® Internet Security (OEM version)
   LAN bandwidth management software
   Operating System
   Support for Windows 11 64-bit
   Support for Windows 10 64-bit
   Form Factor
   Mini-ITX Form Factor; 17.0cm x 17.0cm
