Popis produktu:

   Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
   Unparalleled Performance:Hybrid 6+2+1 Phases Digital VRM Solution
   Dual Channel DDR4:2*DIMMs XMP Memory Module Support
   Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
   EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
   Fast Networks:2.5GbE LAN & Wi-Fi 802.11ac
   Extended Connectivity:Rear USB-C® 5Gb/s, DP, HDMI, D-Sub
   Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
   Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card



   CPU
       LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
       L3 cache varies with CPU
   (Please refer "CPU Support List" for more information.)
   Chipset
       Intel® B760 Express Chipset
   Memory
       Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
       2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
       Dual channel memory architecture
       Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
       Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
       Support for Extreme Memory Profile (XMP) memory modules
   (Please refer "Memory Support List" for more information.)
   Onboard Graphics
   Integrated Graphics Processor-Intel® HD Graphics support:
       1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
       1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
       * Support for HDMI 2.0 version and HDCP 2.3.
       1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
       * Support for DisplayPort 1.2 version and HDCP 2.3
   (Graphics specifications may vary depending on CPU support.)
   Support for up to 3 displays at the same time
   Audio
       Realtek® Audio CODEC
       High Definition Audio
       2/4/5.1/7.1-channel
       * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
       Support for S/PDIF Out
   LAN
       Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
   Wireless Communication module
   AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) (PCB rev. 1.0)
       WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
       BLUETOOTH 4.2
       Support for 11ac wireless standard and up to 433 Gbps data rate
   Intel® Wireless-AC 9461 (PCB rev. 1.1)
       WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
       BLUETOOTH 5.1
       Support for 11ac wireless standard and up to 433 Mbps data rate
   (Actual data rate may vary depending on environment and equipment.)
   Expansion Slots
   CPU:
       1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
   Chipset:
       1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
   Storage Interface
   CPU:
       1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
   Chipset:
       1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
       4 x SATA 6Gb/s connectors
   RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
   USB
   Chipset:
       1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
       5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
       2 x USB 2.0/1.1 ports on the back panel
   Chipset+USB 2.0 Hubs:
       4 x USB 2.0/1.1 ports available through the internal USB headers
   Internal I/O Connectors
       1 x 24-pin ATX main power connector
       1 x 8-pin ATX 12V power connector
       1 x CPU fan header
       3 x system fan headers
       1 x addressable LED strip headers
       1 x RGB LED strip headers
       2 x M.2 Socket 3 connectors
       4 x SATA 6Gb/s connectors
       1 x front panel header
       1 x front panel audio header
       1 x S/PDIF Out header
       1 x USB 3.2 Gen 1 header
       2 x USB 2.0/1.1 headers
       1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
       1 x serial port header
       1 x Q-Flash Plus button
       1 x reset jumper
       1 x Clear CMOS jumper

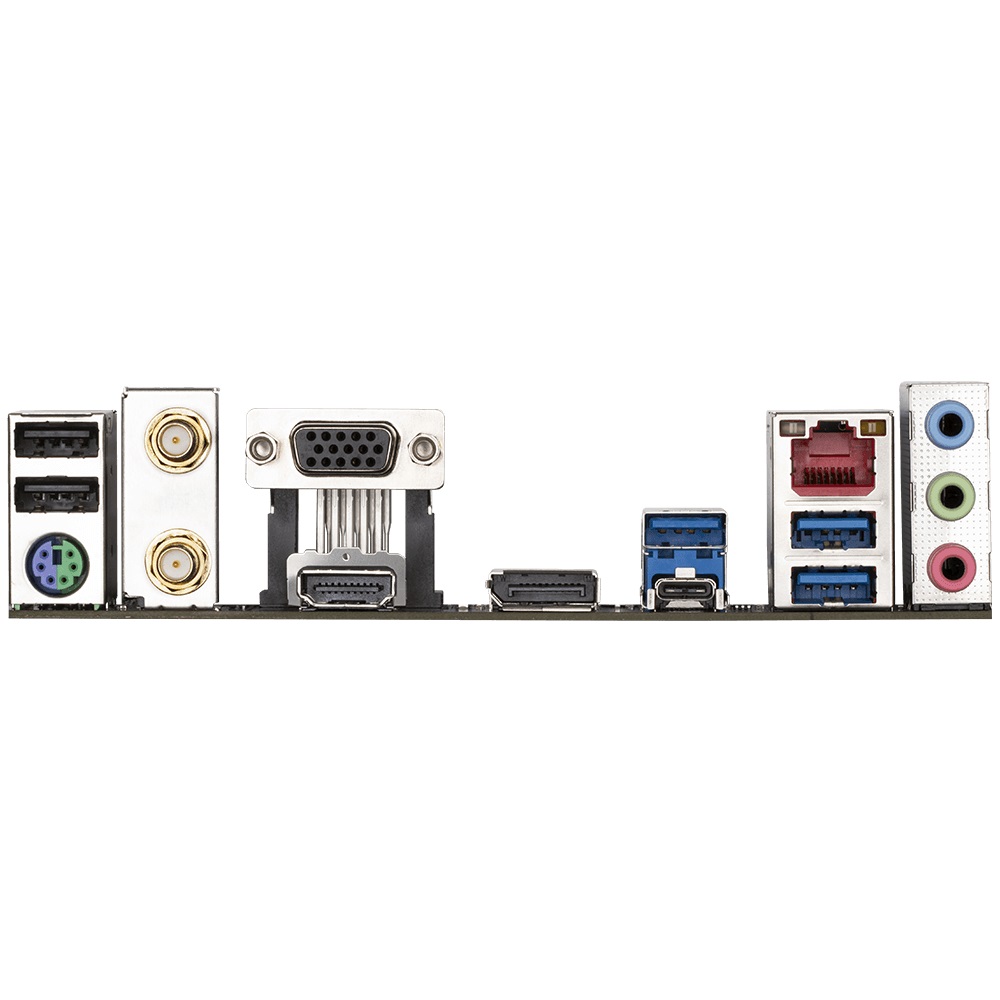

   Back Panel Connectors
       2 x USB 2.0/1.1 ports
       1 x PS/2 keyboard/mouse port
       2 x SMA antenna connectors (1T1R)
       1 x D-Sub port
       1 x HDMI port
       1 x DisplayPort
       3 x USB 3.2 Gen 1 ports
       1 x USB Type-C® port, with USB 3.2 Gen 1 support
       1 x RJ-45 port
       3 x audio jacks
   I/O Controller
       iTE® I/O Controller Chip
   H/W Monitoring
       Voltage detection
       Temperature detection
       Fan speed detection
       Water cooling flow rate detection
       Fan fail warning
       Fan speed control
       * Whether the fan speed control function is supported will depend on the fan you install.
   BIOS
       1 x 128 Mbit flash
       Use of licensed AMI UEFI BIOS
       PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
   Unique Features
       Support for GIGABYTE Control Center (GCC)
       * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
       Support for Q-Flash
       Support for Q-Flash Plus
   Bundled Software
       Norton® Internet Security (OEM version)
       LAN bandwidth management software
   Operating System
       Support for Windows 11 64-bit
       Support for Windows 10 64-bit
   Form Factor
       Micro ATX Form Factor; 24.4cm x 22.5cm
