Popis produktu:

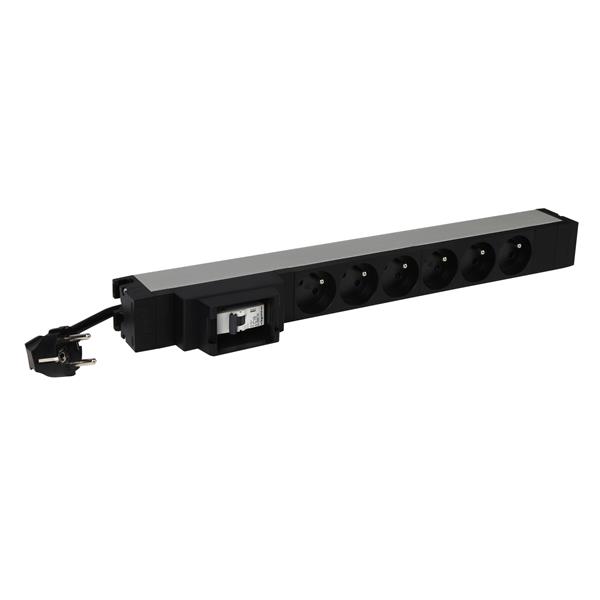

PDU 19 palcov 1U so 6 x 2P+E francúzskymi štandardnými zásuvkami na napájanie zariadení v 19-palcových skriniach.
S hliníkovým krytom, zásuvkovými modulmi, montážnym a ukončovacím riešením.
S prídavným MCB C16 6kA. Charakteristika produktu Jednofázový 6 x 2P+E francúzske/belgické štandardné zásuvky vybavené ochrannými uzávermi Vstupné napätie 230 V Vstupný prúd 16 A Maximálny výkon 3,7 kW

Mounting dimension (standardised) 482.6 mm (19 inch)
Mounting size 465.1 mm
Mounting direction Horizontal/vertical
Electrical connection Connection cable with plug
Cable length 3 m
Number of miniature circuit breakers (MCB) 1
Number of socket outlets with protective contact CEE 7/3 (type F) 0
Number of socket outlets with earth pin 6
Number of C13 socket outlets 0
Number of C19 socket outlets 0
Number of C20 socket outlets 0
Number of socket outlets British Standard BS 1363 0
Number of socket outlets Swiss standard type 13 0
Number of socket outlets Swiss standard type 15 0
Number of socket outlets Swiss standard type 23 0
Number of socket outlets Swiss standard type 25 0
Number of other socket outlets 0
Number of height units 1
Length 465 mm
Width 44.3 mm
Depth 52.5 mm
Supply voltage 230 V
Overvoltage category 2
Mains filter No
Switchable No
SNMP No
With display No
Evaluation Local
With LED indication No
With fuse No
Ampere meter No
Temperature measurement No
With mounting material Yes
Colour Black
degree of impact strength (IK) Not applicable
Degree of protection (IP) IP40
Operating / setting temperature -5-40 °C
Storage temperature -20-70 °C
Voltage type AC
Supply current 16-16 A
Frequency 50-60 Hz
Standby consumption 0 mA
Nominal discharge surge current In (8/20) 0 kA
Terminal marking indication No
RAL-number 9017
Connection type Screwed terminal
Terminals capacity 1.5-6 mm2
Cable nature for connection Flexible
Cable section 1.5-1.5 mm2
Maximum Input cable diameter 10 mm
Number of RCCBs 0
Connected object No
