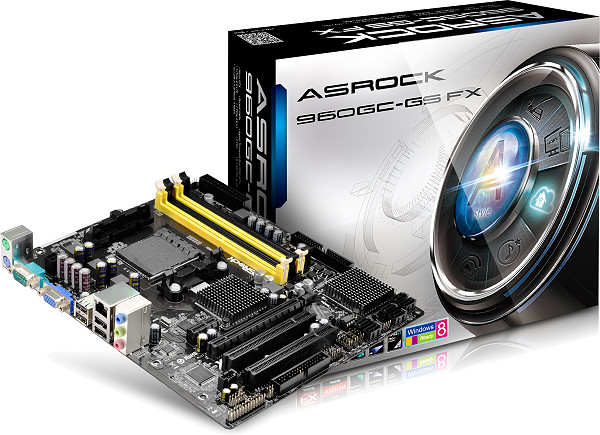

Popis produktu:

¦Supports AM3+ Processor, 8-Core CPU
¦Supports Dual Channel DDR3 1866(OC) / DDR2 1066
¦Built-in AMD Radeon 3000 graphics, DX10, PS 4.0
¦5.1 CH HD Audio (Realtek ALC662 Audio Codec)
¦Supports ASRock X-Boost, XFast 555, App Charger
¦Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar


CPU

- Support for Socket AM3+ processors
- Support for Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
- Supports 8-Core CPU
- Supports AMD OverDrive™ with ACC feature (Advanced Clock Calibration)
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology



Chipset

- Northbridge: AMD 760G
- Southbridge: AMD SB710



Memory

- Dual Channel DDR3/DDR2 Memory Technology*
- 2 x DDR3 DIMM Slots**
- Supports DDR3 1866(OC)/1600(OC)/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB***
- 2 x DDR2 DIMM Slots****
- Supports DDR2 1066*****/800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB***


*DDR3 and DDR2 are supported separately.

**DDR3 memory is only supported by installing AM3/AM3+ CPU.

***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

****DDR2 memory is only supported by installing AM2/AM2+/AM3 CPU.

*****Support with AM3 / AM2+ CPU.



BIOS

- 16Mb AMI legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3.1 support
- CPU, VCCM, NB Voltage multi-adjustment



Audio, Video and Networking



Graphics

- Integrated AMD Radeon 3000 graphics
- DX10 class iGPU, Pixel Shader 4.0
- Max. shared memory 512MB
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz



Audio

- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)



LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111G
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE



Expansion / Connectivity



Slots

- 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x16 mode)
- 1 x PCI Express 2.0 x1 Slot
- 2 x PCI Slots



Storage

- 6 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug



Connector

- 1 x ATA133 IDE Connector (Supports 2 x IDE devices)
- 1 x Floppy Connector
- 1 x IR Header
- 1 x Print Port Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x CD In Header
- 1 x Front Panel Audio Connector
- 1 x SPDIF Out Connector
- 3 x USB 2.0 Headers (Support 6 USB 2.0 ports)



Rear Panel I/O

- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone



Other Features / Miscellaneous



Unique Feature

- ASRock OC Tuner
- ASRock Intelligent Energy Saver
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock X-Boost
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%



Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar



Accessories

- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables



Hardware Monitor

- CPU/Chassis temperature sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU Fan multi-speed control
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore



Form Factor

- Micro ATX Form Factor



OS

- Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant



Certifications

- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
