Popis produktu:

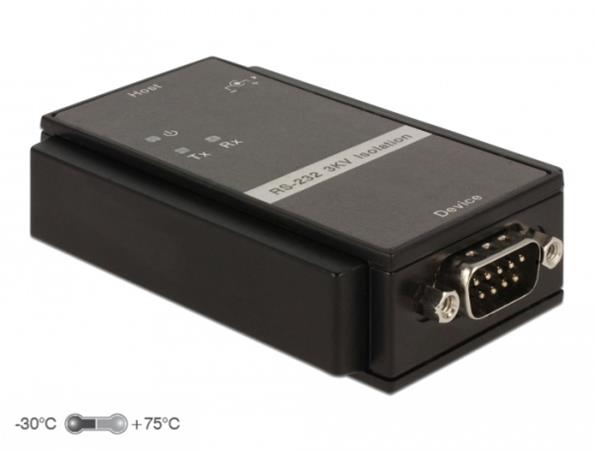

This RS-232 to RS-232 isolator by Delock is designed to protect the connected components from electrostatic discharges and power surge. In addition, the galvanic isolation avoids data transmission errors by uneven ground voltages. Power can be provided through the serial interface or the included power supply. DIN rail mounting is supported.

Specifikace
   Connector:
   Host: 1 x D-Sub 9 pin Serial RS-232 female
   Device: 1 x D-Sub 9 pin Serial RS-232 male
   1 x DC 1.3 x 3.5 mm female
   Data transfer rate up to 1 Mbps
   Data Bit: 5, 6, 7, 8
   Stopp Bit: 1, 1.5, 2
   Parity: None, Even, Odd, Space, Mark
   Signals: TXD, RXD, CTS, RTS, DCD, DSR, DTR
   LED indicators for status TX / RX and power supply
   Galvanic isolation 3 kV (optical isolation)
   600 W power surge for the RS-232 interfaces
   600 W power surge at the DC Connector
   ± 15 kV ESD protection for all signal pins
   Power supply RS-232 interface pin 9: 12 V (optional)
   Power supply: 10 - 30 V
   Power consumption: ca. 50 mA
   Operating temperature: - 30 °C ~ 75 °C
   Relative humidity: 5 ~ 95 % (not condensing)
   Storage temperature: - 40 °C ~ 85 °C
   Housing material: plastic
   Dimensions (LxWxH): ca. 88 x 54 x 22 mm
   Accessories for mounting on 35 mm DIN rails

Specifikace napájecího zdroje
   Wall power supply
   Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.48 A
   Output: 12 V / 1.6 A
   Ground outside, plus inside
   Dimensions:
   inside: o ca. 1.3 mm
   outside: o ca. 3.5 mm
   length: ca. 9.5 mm

Systémové požadavky
   Devices with RS-232 interfaces

Obsah balení
   Converter
   Power supply
   Mounting set for DIN rail
   User manual

Balení
• Krabice
