Description
1200Mbps Wireless Dual-Band Mesh System Kit, 3 pcs 2.4/5.8GHz, WPS, 1x Lan, 1x Wlan
Extend your WiFi Mesh network by this wireless dual band repeater via WPS push button
Extend your WiFi network individually
2 external omni-directional WiFi antennas provide first class signals to your WiFi devices
Connect to your mobile devices by just pushing the WPS button

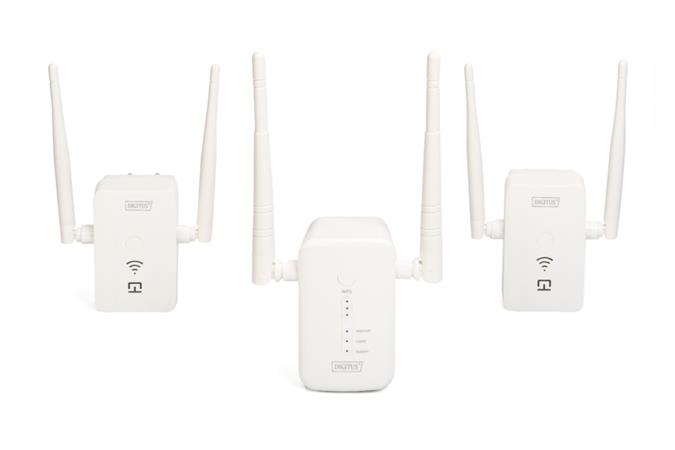

1 x Basis station / 2 x Satellite in this set included
Can be used as access point or router
Configurations can comfortably be done via the integrated WebUI at a PC or smartphone
LEDs show the actual transmit / receive signal strenth at any time
No installation needed - just plug the repeater in a free socket
You can easily extend the range of your WiFi network with this repeater. Connect your devices to the Mesh set via the easy to use WPS function. More configurations of the repeater can be done effortlessly via the integrated WebUI at your PC or smartphone browser at any time. 2 omni-directional antennas provide loss-free reception and data transfer rates up to 1200 Mbps. At the basis device you can additionally use a cable-bound device by plugging an ethernet cable in the provided RJ45 socket. Many safety features like firewall, IP and Mac filter, as well as QoS functions complete the configuration possibilities of this WiFi Mesh system.

Technical Details
Data transfer rate: max. 1200 Mbps
LEDs at the basis station shows the acutal transmit / receive signal strength and system status
LEDs at the satellites shows the acutal transmit / receive signal strength
Reset button for switching back to factory setting
WiFi frequencies: 2.4 GHz & 5.8 GHz
WiFi standard: 802.11a/ac/b/g/n
WiFi transfer rates: 867 Mbps + 300 Mbps
Transmission strength: 100 mW (EIRP)
Recommended distance between the modules: 15 - 20 m (free sight)

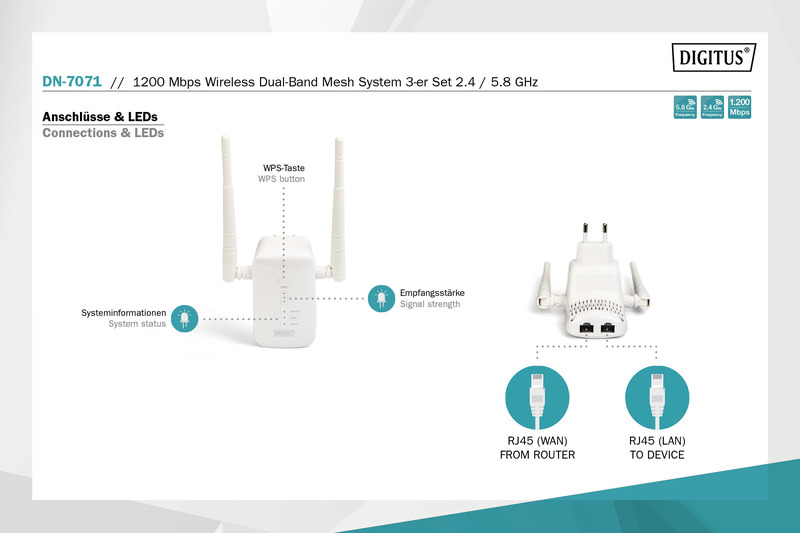

2 x RJ45 socket at the basis station: 1x WAN / 1x LAN
Data transfer rates of the ethernet socket: WAN 10/100/1000 Mbps / LAN 10/100 Mbps
Firewall / IP-filter / Mac-filter / Port-forwarding / URL-filter / DMZ / QoS / DHCP
Antennas: Each module provides 2 omni-directional WiFi antennas, 180° rotatable on each side for optimal emission in each direction
Chipsets basis station: RTL8197FS+RTL8812BRH+RTL8211F(M1222)
Chipsets satellites: RTL8197F+RTL8812BRH(M1282)
Operating voltage: 100 - 240V AC
Measurements without WiFi antennas: L 9,1 x B 5,5 x T 9 cm
Measurements with WiFi antennas hinged up: L 15 x B 11 x T 9 cm
Weight basis station: 117 g
Weight accesspoints: 97 g

Package content
1 x 1200 Mbps wireless dual band Mesh system set
1 x Manual
