Popis produktu:

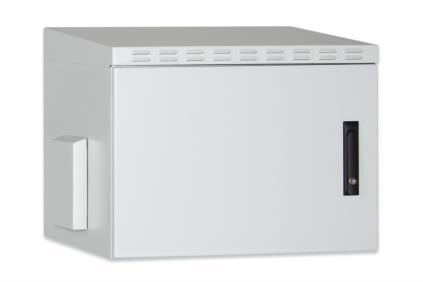

16U wall mounting cabinet, outdoor, IP55

Safety class rating IP 55
Lockable steel front door with pivot lever
140° door opening angle
3-point-locking-mechanism on the front door
Front door with earthing lead and two welded, strengthening bars in U-shape as well as gasketting system

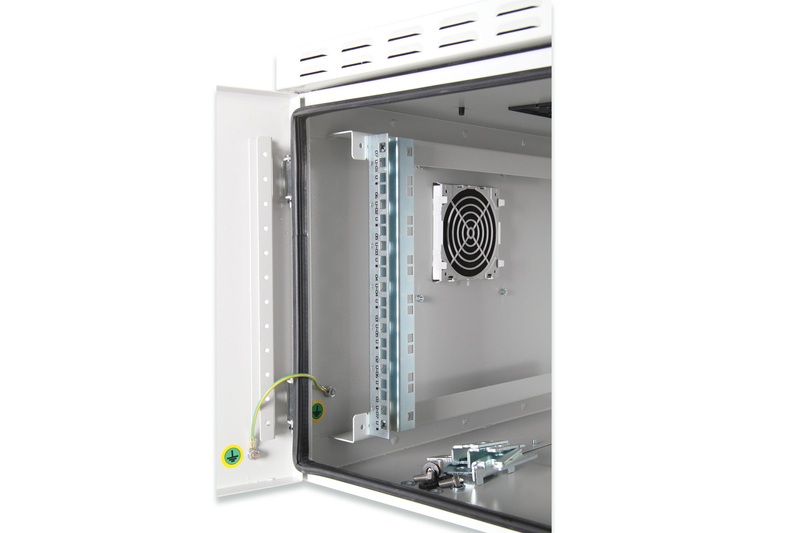

483 mm (19“) profile rails mounted on the front side inside of the cabinet, galvanized
483 mm (19“) profile rails are adjustable in depth and with height unit marking
1.5 strong sheet steel with a high loading capacity, powder coated
Single welded housing for more strength

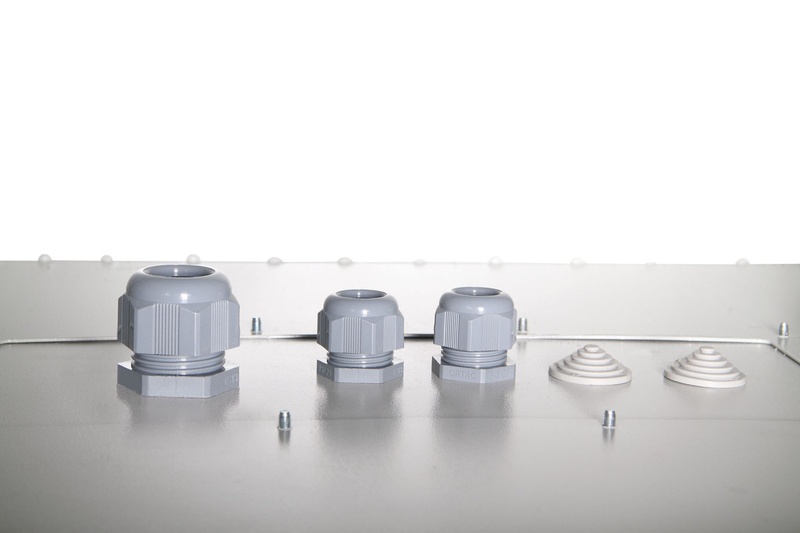

Cable entries in base: 2x M32, 1x M63, 2x PVC blind cap (with diameter of 28 mm)

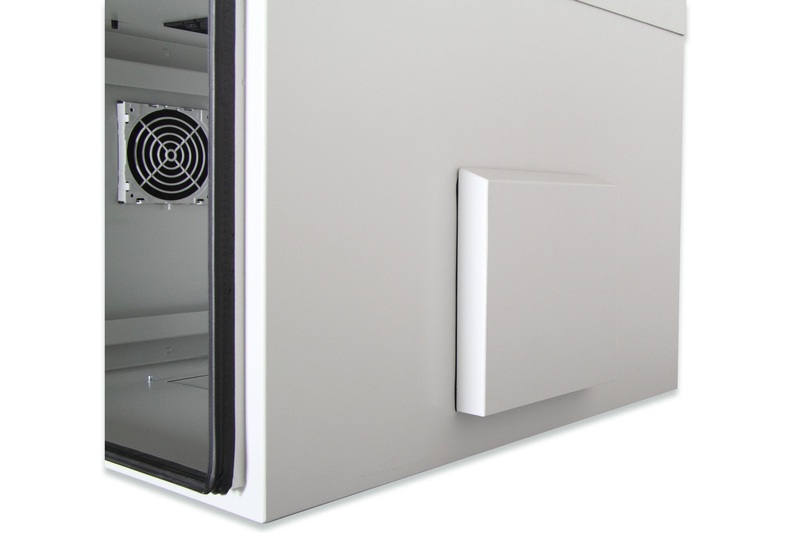

Roof canopy offers protection for suitable fan units and takes care of deaeration and hot air
Integrated air ventilation inlets ensure the entry of fresh air
incl. 4 pcs. mounting brackets, 3 mm strong, as well as suitable screws and washers, for wall mounting
Dimensions (HxWxD): 891,600,600 mm
Color: light grey, RAL 7035
Units: 16
Load capacity: 100 kg
Cabinet type: Wall mounting cabinet, outdoor
Front door: Steel door, closed
Width: 600 mm
Depth: 600 mm
