Description

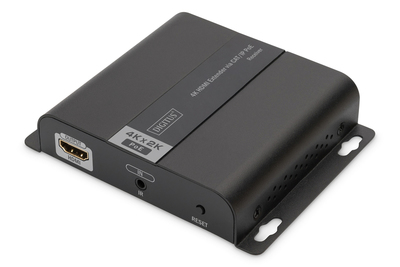

4K HDMI Extender, Receiver Unit over IP/CAT 5, 6 (120m), POE powered
Extend the 4K HDMI Extender Set (DS-55124) with additional receiver units (DS-55125) and send your HDMI signals to up to 253 screens (point-to-multipoint connection)
Use additional receiver units (DS-55125) and your existing network infrastructure or additional PoE switches to display video contents on up to 253 screens (point-to-multipoint connection)
Power supply through PoE switch - no external power supply required
Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
Supports 4K (30 Hz), 3840 x 2160p resolution
HDMI bandwidth: 10.2 Gbit/s (max.)
HDCP version: 1.4
The 4K HDMI extender set (DS-55124) contains a transmitter unit and a receiver unit. The units do not require external power supply, they are powered by an additional PoE switch. Additional PoE switches or the existing infrastructure allows the HDMI signal to be extended over an unlimited distance (IP connection). Additional receiver units (DS-55125) allow video contents to be displayed on up to 253 screens. Use your existing network infrastructure or additional PoE switches (point-to-multipoint connection) for this purpose. 4K video contents can be displayed at a distance of up to 120 meters with a single point-to-point connection (power supply required). Put displays and TVs wherever you like, no matter where the output source is.

Technical Details
HDMI signal can be extended (unlimited distance) with the existing local network infrastructure or additional PoE switches (IP connection)
Use additional receiver units (DS-55125) and your existing network infrastructure or additional PoE switches to display video contents on up to 253 screens (point-to-multipoint connection)
Power supply through PoE switch - no external power supply required
Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
Supports 4K (30 Hz), 3840 x 2160p resolution
HDMI bandwidth: 10.2 Gbit/s (max.)
HDMI version: 1.4
HDCP version: 1.4
Integrated bidirectional IR interface - simple remote control of the input source
Resolutions: 4K (30 Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Supports HDTV
Supports Deep Color (24 bit)
Supports uncompressed audio signals like LPCM
Operation temperature: 0°C - 60°C
Metal casing
Suitable for wall mounting
Compact size, easy to operate and install
Dimensions: L 11.9 x W 9.4 x H 2.4 cm
Weight: 0.275 kg
Color: Black

Package content
1x HDMI Extender receiver unit
1x IR receiver unit
User manual
