Popis produktu:

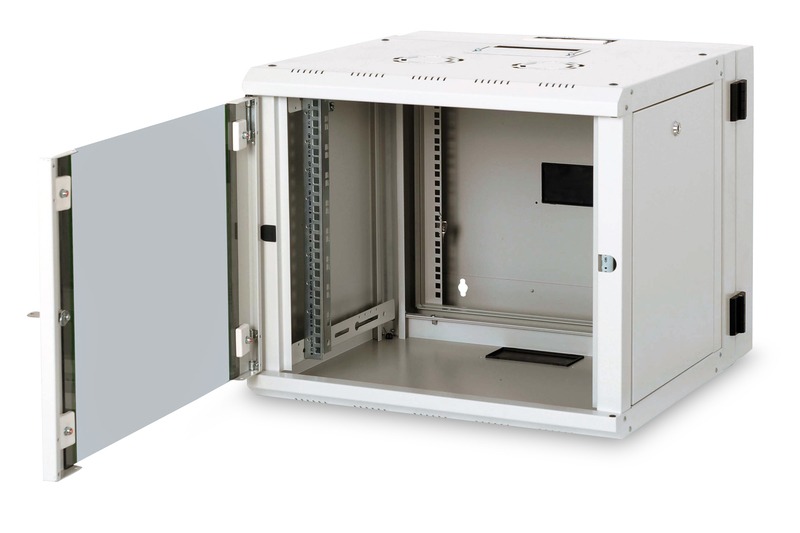

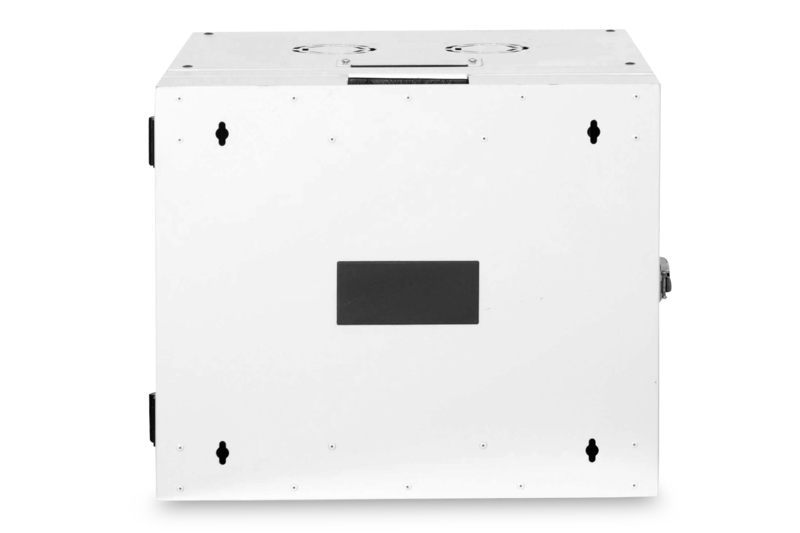

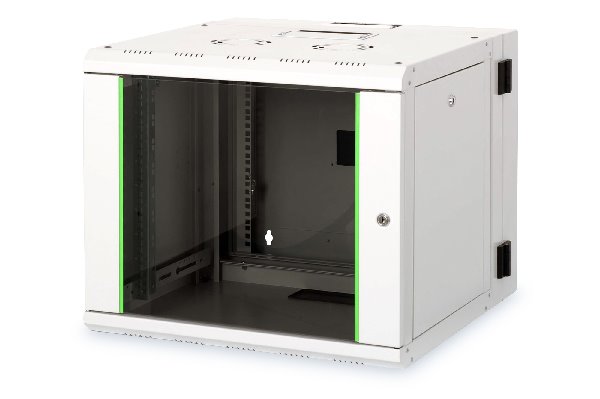

9U wall mounting cabinet, double sectioned 509x600x600 mm, color grey (RAL 7035)

The Wall Mounting Cabinets of the Unique Series are made of a robust sheet steel construction with a minimum of seams. The side sections are detachable and lockable. It is fast and easy to mount the cabinet. Separately leveling feet or castors are available. Due to their flexibility the cabinets are ideal for all current IT and telecommunication applications.

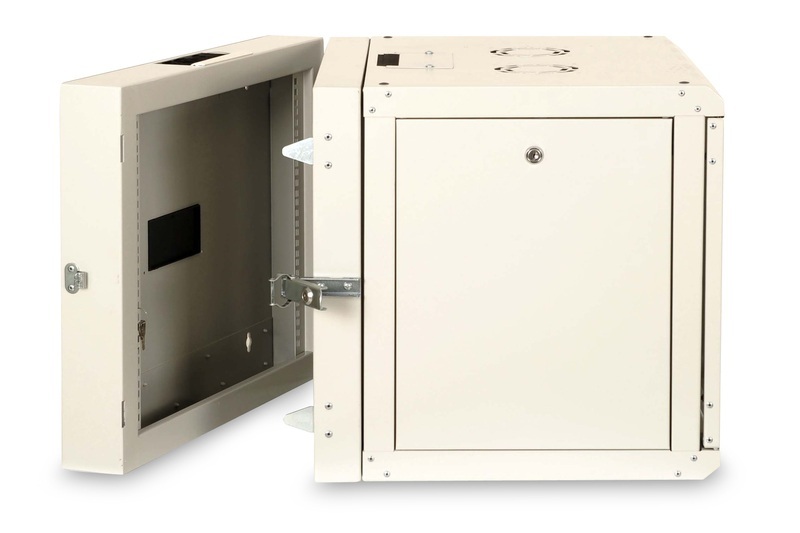

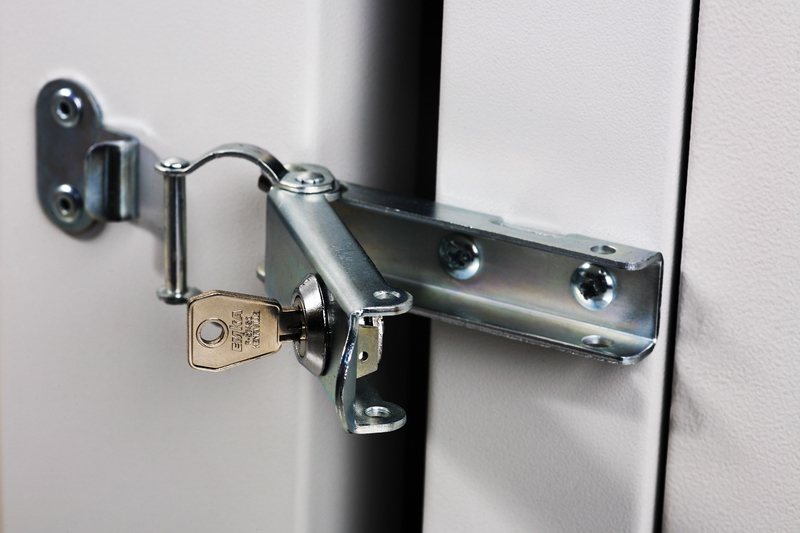

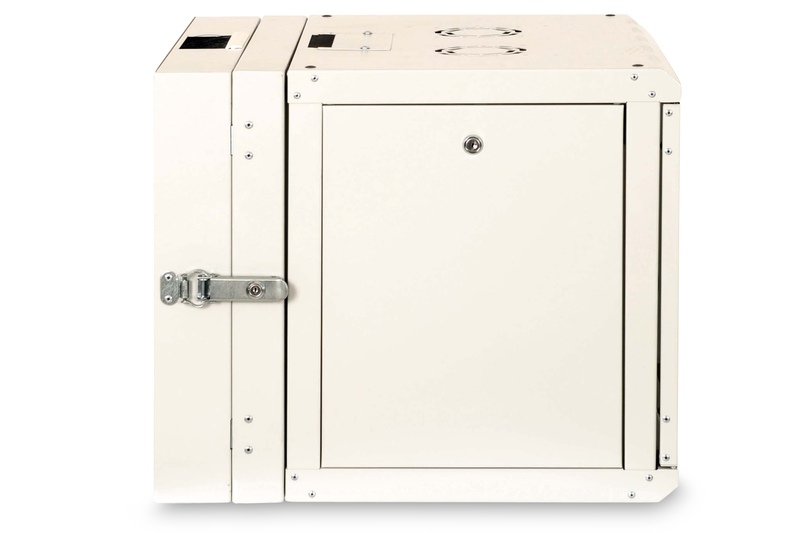

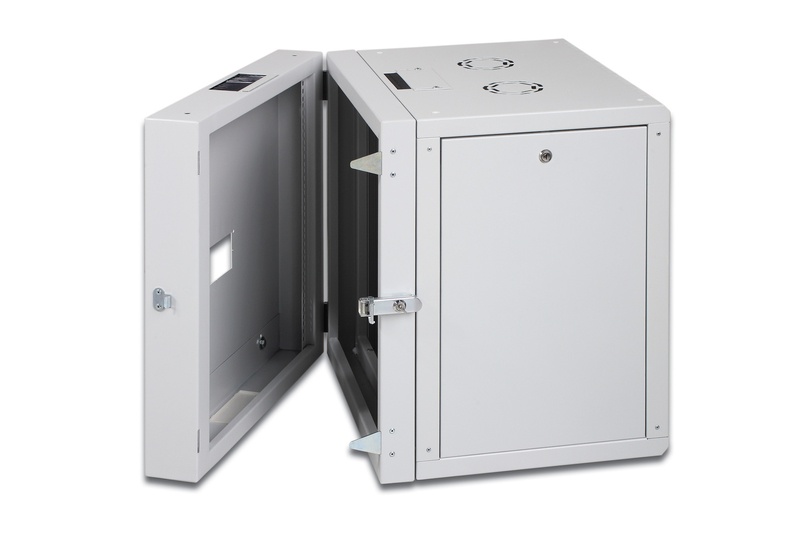

l  Safety class rating IP20 l  Lockable safety-glass door with steel frame l  210° door opening angle l  Housing is connected to rear frame with separate locking mechanism (incl. individual key) l  102° pivotable angle of the housing from the frame l  1-point-locking-mechanism on the front door l  Side panels are lockable and removable l  483 mm (19“) profile rails mounted on the front side inside of the cabinet, galvanized l  483 mm (19“) profile rails are adjustable in depth and with height unit marking l  Rear frame with 483 mm (19”) punch outs l  1.1 - 1.5 strong sheet steel with a high loading capacity, powder coated l  Cable entry on the rear side and bottom with plastic cover and top with sliding cover l  Rear frame with brush strip for cable entry on top and base l  Roof is prepared for fan units (punched out entries) l  Ventilation slots for active and passive ventilation and exhausting l  Color: light grey, RAL 7035 l  Units: 9 l  Dimensions (HxWxD): 509,600,600 mm l  Load capacity: 100 kg l  Cabinet type: Wall mounting cabinet l  Front door: Glass door l  Width: 600 mm l  Depth: 600 mm
