Popis produktu:

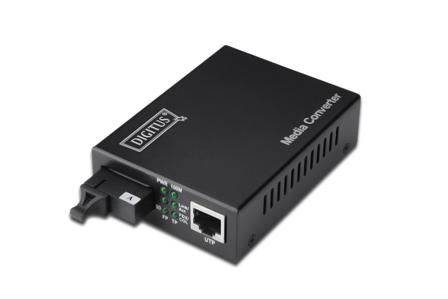

Optický media konvertor  s konektorem SC, lze použít samostatně nebo je možné přikoupit rackové šasi.

The perfect converter solution for various fiber media

•Transforms wire based network media to fiber optic
•High quality and excellent reliability
•10/100Base-TX to 100Base-FX
•Connectors: 1x RJ45, 1x SC Simplex
•Distance up to 20km
•Wavelength: Tx 1310nm / Rx 1550nm
•Singlemode Single Fiber
•Automatic Cable detection - Auto MDI / MDI-X function
•Auto-Negotiation of Full- and half-duplex
•Diagnostic and monitoring LEDs for the status of power, link and act of the ports
•Link Fault Pass Through (LFP) Function for easier Network Maintenance
•Suitable for 9/125µm Fiber Cables
•Transmission Power: Minimum -15 dBm, Maximum -8 dBm
•Sensitivity Receiving Power: Minimum -36 dBm
•Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet
•128kB Data Buffer
•Operating Temperature: 0 to 55°C
•Dimensions (L x W x H): 95mm x 70mm x 26mm
•Weight: 200g
•Standalone Converter with external power supply
•Input Supply Voltage: 5V DC
•Max. Current: 800mA
•Power Consumption: 2.5W

Výrobek je dodáván s manuálem pouze v anglickém jazyce.
