Popis produktu:

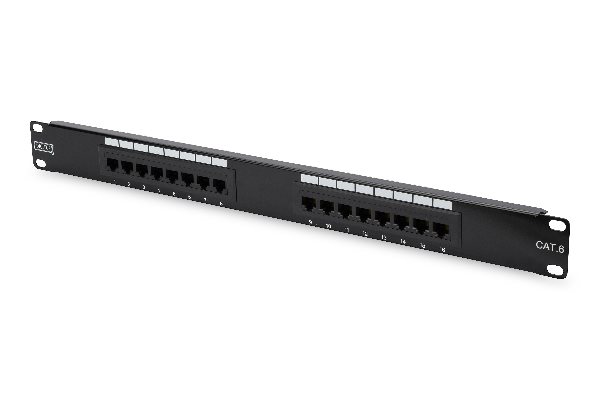

DIGITUS CAT 6, Class E patch panel, unshielded 16-port RJ45, 8P8C, LSA, 1U, rack mount, color black RAL 9005

Best performance and link quality for your network.
The unshielded CAT 6 Patch Panel from DIGITUS® is available as 16- or 24-port (1 Hight unit) or 48-port version (2 Hight
units). It is manufactured acc. to Link Performance Class E, for up to 250 MHz, EN 50173 and ISO/IEC 11801. It is UL
certified. The housing is made of 1.5 mm galvanized cold-rolled steel is is therefore perfectly suitable for19" rack
mounting.
l Transmission properties: Category 6
l Area of application: Up to 250 MHz, 1GBase-T, PoE
l Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
l General properties:
l Suitable for 483 mm (19") cabinet mounting
l RJ45 female, 8P8C
l Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
l Cable fixing with cable tie
l Mechanical properties:
l Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
l RJ45 female material: ABS UL 94V-0
l RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
l RJ45 shielding: Tinned bronze
l LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
l Ground wire: Not included
l Conductor plate: FR4, UL 94V-0
l Physical properties:
l Insertion force: 30N max. (IEC 60603-7-5)
l Retention strength: 7.7 kg between jack and plug
l Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
l Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
l Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
l IDC wire size: 22 – 26 AWG solid and stranded conductor
l Insulation resistance: > 500 MOhm
l Contact resistance: < 20 MilliOhm
l Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
l Category: CAT 6
l Ports: 16
l Color: black, RAL 9005
l Units: 1
