Digitus CAT 6A Keystone Jack, STP, tool free, dust cover smart cable manager, metal snap-in, set 24 pcs. DN-93619-24
Digitus CAT 6A Keystone Jack, STP, tool free, dust cover smart cable manager, metal snap-in, set 24 pcs. DN-93619-24
| Výrobca |
Digitus |
|
|---|---|---|
| Kód | ITK768264 | |
| Part No. | DN-93619-24 | |
| Dostupnosť po pobočkách |
NRE
NR
BA |
|
| DPH | 20% | |
| Vaša cena s DPH |
127.97 €
bez DPH 106.64 €
|
|
| Vaša cena bez DPH | ||
| Garancia ceny | Našli ste inde na internete nižšiu cenu? Informujte nás! | |
|
|
||
| Objednať |
|
|
Záruka koncový zákazník: 2 Roky
Záruka firma: 2 Roky
Výrobca:
Kód: ITK768264
Part No.: DN-93619-24
Záruka firma: 2 Roky
Výrobca:
Digitus
Kód: ITK768264
Part No.: DN-93619-24
Description
Cat.8.I Keystone Module, shielded, tool free
25/40GBase-Transmission speed in permanent Link up to 24 m and Channel Link up to 30 m. Especially for ToR and MoR cabling in the data center.
25/40GBase-T
2000 MHz
AWG 22/1 - 26/7
Werkzeu
Digitus CAT 6A Keystone Jack, STP, tool free, dust cover smart cable manager, metal snap-in, set 24 pcs. DN-93619-24
Obchod si vyhradzuje právo na zmenu ceny až po potvrdenie objednávky. Obrázok má len ilustračný charakter.
Diskusia (0)
Poslať info
- +Akcia
- +JARNÉ POMÔCKY
- +PC, NOTEBOOKY
- +MOBILY, TABLETY, HODINKY
- +PC KOMPONENTY
- +PERIFÉRIE
- +HERNÁ ZÓNA
- +ČIERNA TECHNIKA
- +MALÁ BIELA TECHNIKA
- +VEĽKÁ BIELA TECHNIKA
- +SOFTWARE, E-KNIHY
- +MICROSOFT SOFTVÉR
- +ŠPORT, ZDRAVIE
- +ZÁHRADA, HOBBY
- +NÁBYTOK
- +FOTOVOLTAIKA
Naposledy navštívené
| Kód | Názov produktu | Vaša cena |
|---|
Vážení zákazníci, dovoľujeme si Vás upozorniť, že pri zásielkach expedovaných po 18.12.2024 nám nevie kuriérska spoločnosť zaručiť, že budú dodané do 23.12.2024. Ďakujeme za porozumenie. Viac info
Podrobnosti o produkte
Popis produktu:
Description
Cat.8.I Keystone Module, shielded, tool free
25/40GBase-Transmission speed in permanent Link up to 24 m and Channel Link up to 30 m. Especially for ToR and MoR cabling in the data center.
25/40GBase-T
2000 MHz
AWG 22/1 - 26/7
Werkzeugfreier Montageanschluss

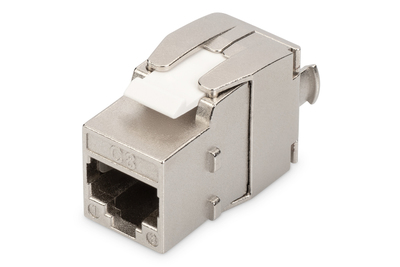

The article DN-93815 by the brand DIGITUS® is a shielded CAT 8.I Keystone module with tool-free mounting connection that provides excellent performance and connection quality for your network. The compact design allows a series installation of 24 units in 483 mm (19") 1U panels. It conforms to category 8.I / 25/40GBase-T ISO/IEC 11801.
Technical Details
Transmission properties: Category 8, Class I
Area of application: Up to 2000 MHz, 25/40GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at, 8023.bt (PoE, PoE+, 4PPoE)
General properties:
Suitable for patch panels and mounting outlets
RJ45 female, 8P8C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Tool-free mounting connection
360°-Schirmkontaktierung
Technical properties:
Housing material: Zinc die-cast, nickel-plated
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
RJ45 shielding: Tinned bronze
IDC termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -10° C to +60 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 gem. ISO/IEC 11801, IEC 60603-7-81
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Colour: Silver
Model: Bus (jack)
Connection type: Insulation displacement
Screened: yes
Category: Other
Suitable for round cable: yes
Suitable for flat cable: no
Suitable for litz wire conductor: yes
Suitable for solid core: yes
Type of connector: RJ45 8(4)
AWG-range: 26 … 22
Special tool necessary: no
Package content
Keystone Module
Cable tie
