Popis produktu:

Description

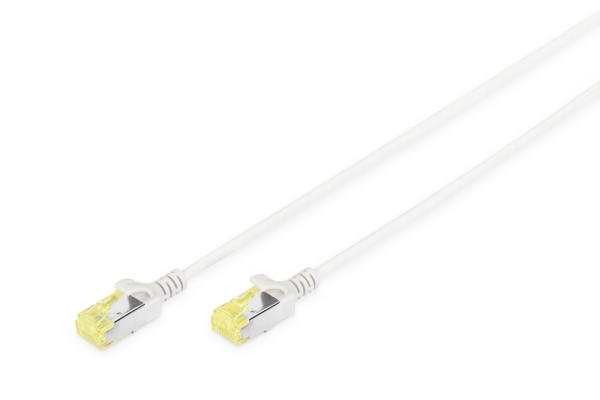

CAT 6A U-UTP Slim patch cord, Cu, LSZH AWG 28/7, length 0.5 m, color grey

Enables flexible and space-saving cabling in your network

Small outer diameter of 3.65 mm is suitable for flexible use
With LSZH (low smoke zero halogen) outer sheath for best fire behaviour and low smoke emission
Transparent yellow colored plug for easy identification of Category 6A (500 MHz)
Conductor: Copper (Cu)
DIGITUS® slim patch cords are characterised by their small outer diameter and flexible sheath. Slim design enables versatile use in your network. Moreover, The DIGITUS® Category 6A Class EA patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 A specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6A cabling. The performance is tested up to 500 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6A, because of the transparent yellow colored connector.

Technical Details
2x RJ45 (8P8C) connectors
Boots with kink protection, strain relief and latch protection
Length marking on boot
Conductor: Copper (Cu)
Bending radius: 4D (outer diameter x 4)
outer diameter: 3,65 mm
Halogen free: yes
Cable type: U/UTP
Pin assignment: 1:1
Length: 0.5
Colour outer sheath: Grey
Category: 6A (IEC)
AWG-size: 28
Anti-kink sleeve: Moulded-on
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
Cable construction: 4x2
Fire retardant version: yes
Colour anti-kink sleeve: Grey
Locking lever: yes
NVP value: 69
