Description

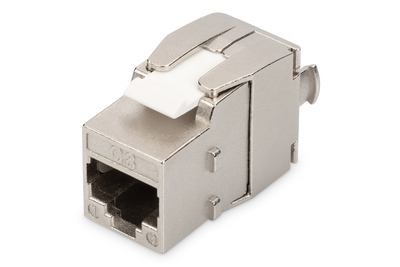

Cat.8.I Keystone Module, shielded, tool free

25/40GBase-Transmission speed in permanent Link up to 24 m and Channel Link up to 30 m. Especially for ToR and MoR cabling in the data center.
25/40GBase-T
2000 MHz
AWG 22/1 - 26/7
Werkzeugfreier Montageanschluss
The article DN-93815 by the brand DIGITUS® is a shielded CAT 8.I Keystone module with tool-free mounting connection that provides excellent performance and connection quality for your network. The compact design allows a series installation of 24 units in 483 mm (19") 1U panels. It conforms to category 8.I / 25/40GBase-T ISO/IEC 11801.

Technical Details
Transmission properties: Category 8, Class I
Area of application: Up to 2000 MHz, 25/40GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at, 8023.bt (PoE, PoE+, 4PPoE)
General properties:
Suitable for patch panels and mounting outlets
RJ45 female, 8P8C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Tool-free mounting connection
360°-Schirmkontaktierung

Technical properties:
Housing material: Zinc die-cast, nickel-plated
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
RJ45 shielding: Tinned bronze
IDC termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -10° C to +60 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 gem. ISO/IEC 11801, IEC 60603-7-81
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Colour: Silver
Model: Bus (jack)
Connection type: Insulation displacement
Screened: yes
Category: Other
Suitable for round cable: yes
Suitable for flat cable: no
Suitable for litz wire conductor: yes
Suitable for solid core: yes
Type of connector: RJ45 8(4)
AWG-range: 26 … 22
Special tool necessary: no

Package content
Keystone Module
Cable tie
