Popis produktu:

Modulární keystone konektor pro montáž bez použití nářadí. Stíněný.
Odpovídá kategorii CAT6A

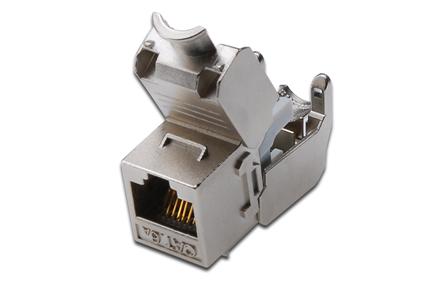

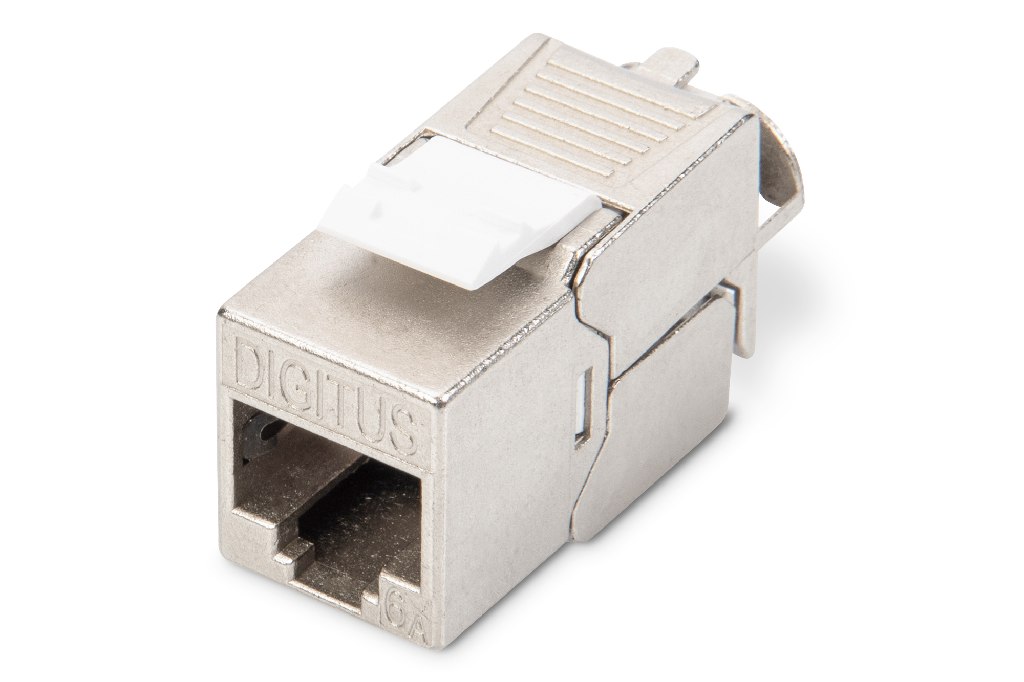

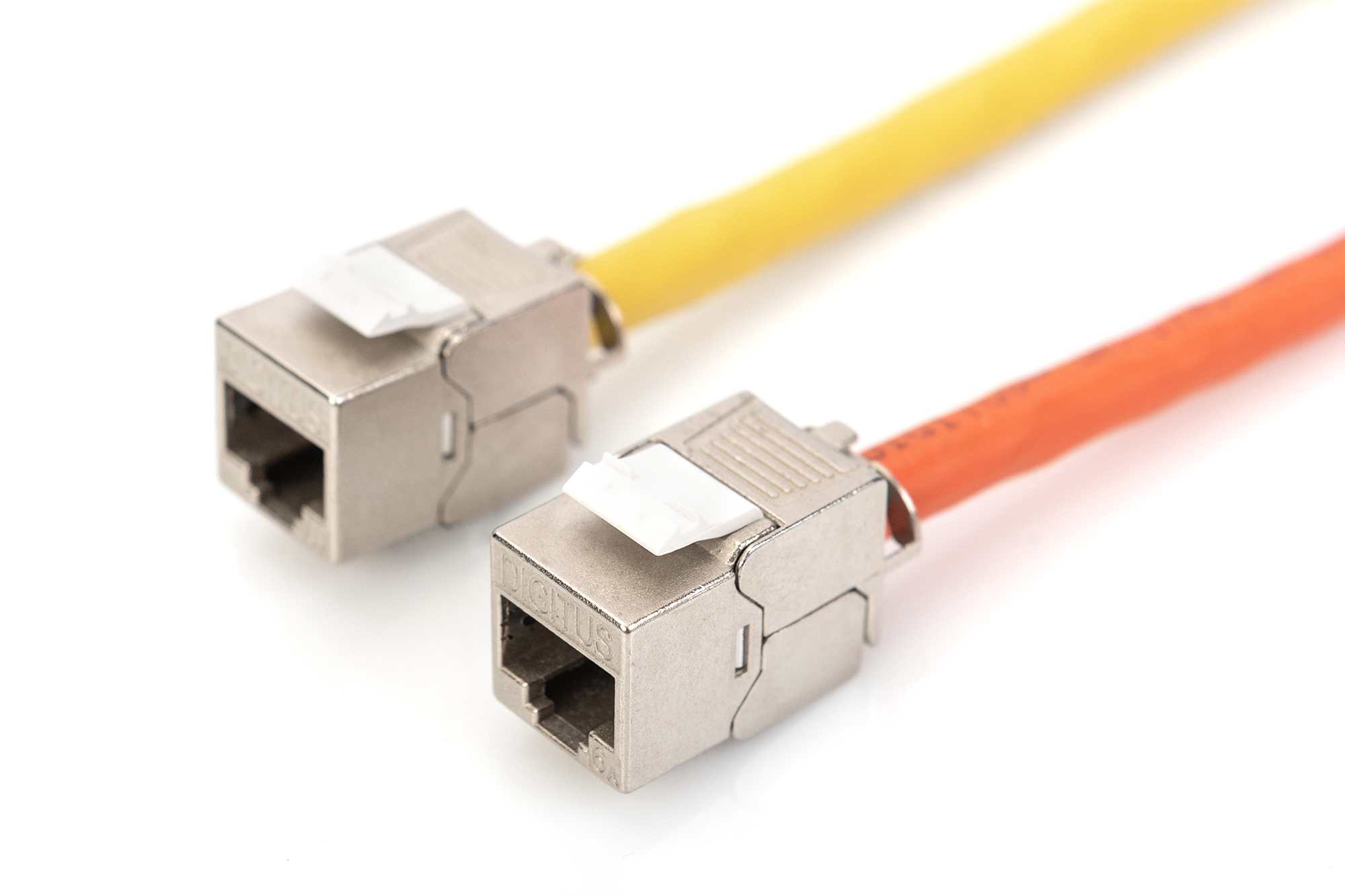

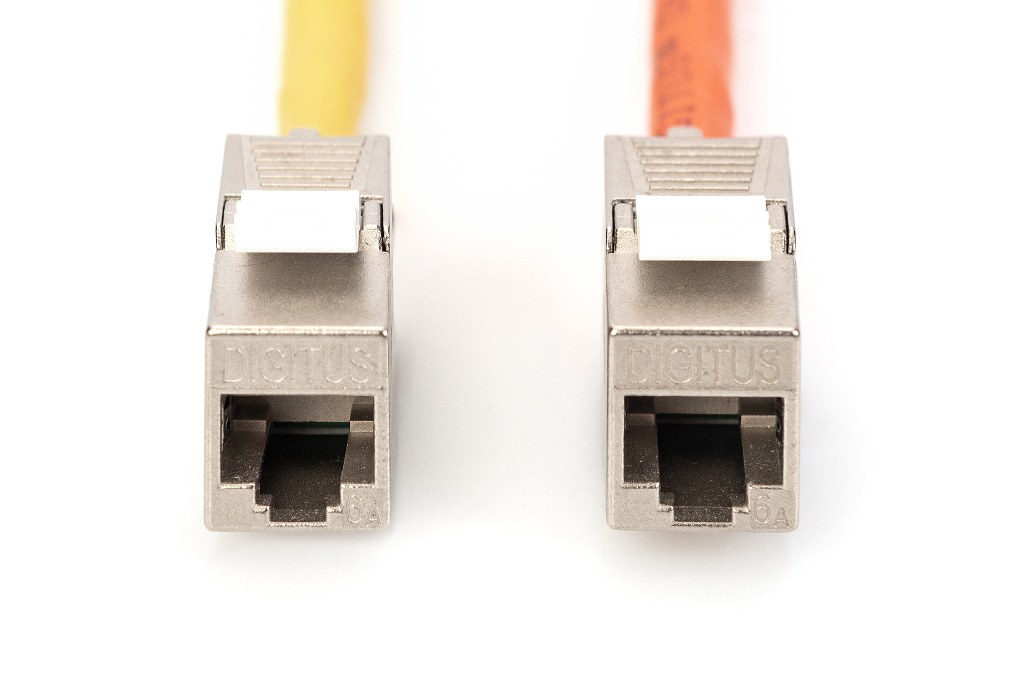

DIGITUS High performance CAT 6A Keystone Jack, shielded
Quick and safe wire terminations without any special tool

DIGITUS CAT 6A Keystone Jack, shielded,Re-embedded, 500MHz acc. ISO/IEC 11801:2002 AM2:2009/09, tool free connection

Tested and 3P Category certified for Connecting Hardware Category 6A transmission requirements of ANSI/TIA Generic Cabling Standard 568-C.2, and IEC test standard 60512-27-100. Meets requirements acc. following standards: IEC 60603-7-51, ANSI/TIA/EIA 568-C.2, IEC 60512-27-100, ISO/IEC 11801 am. 2.
•Material enclosure: Zinc diecast - Nickel plated
•Material contacts: Phosphor bronze

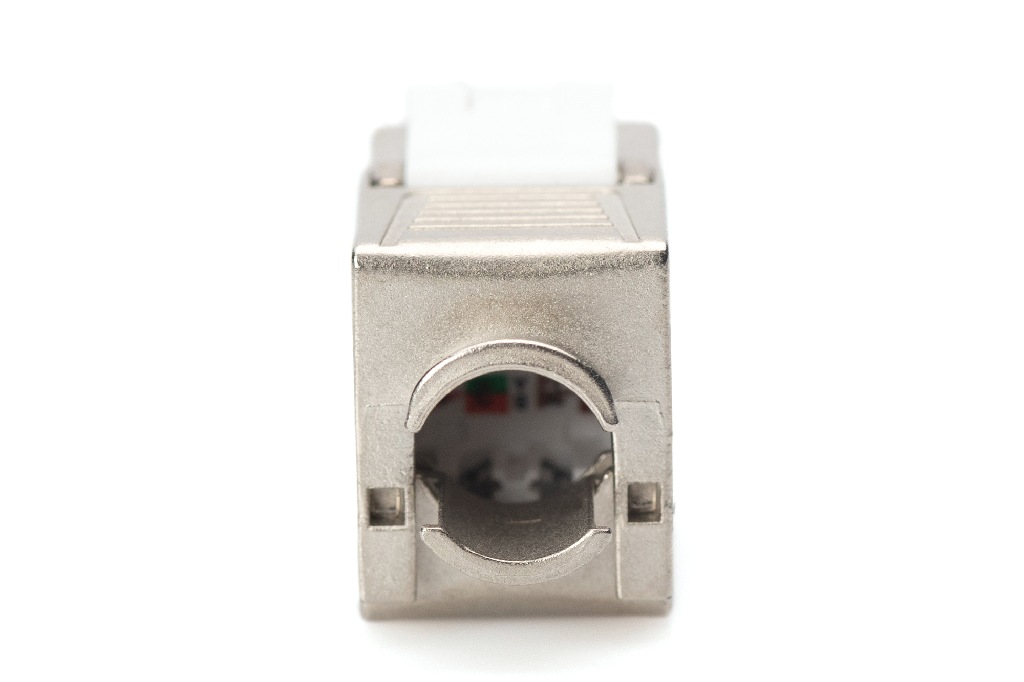

•360° cable screen connection for enhanced EMI protection
•Contacts coating: Nickel, gold plated 0,5µ
•Operating Temperature: -10°C ~+60°C (ISO/IEC 11801,ANSI/TIA/EIA 568 B.2)
•Material PCB: FR4, UL 94V-0, multilayer 1,45mm thickness
•Mating cycles: ? 750 (ISO/IEC 11801, IEC 60603-7-5)
•Diameter Cu-Conductor: AWG (26/1 ... 23), stranded and solid
•RJ 45 jack, female, for patch panel installation
•Compact form allows an installation of 24 x in 483mm (19") 1U blank Panel
•Suitable for bracket typ DN-91410, DN-91411, DN-91412
•Opening size acc. Keystone Standard 19.35 mm x 14.8 mm

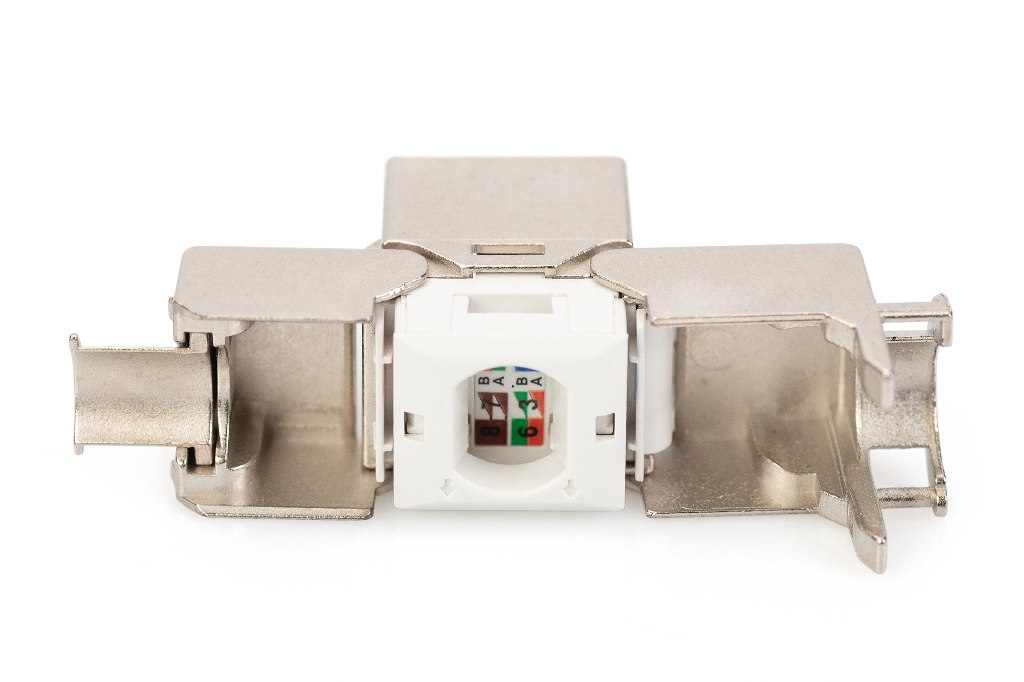

•Tool free cable installation via LSA stripes, color coded according to EIA/TIA 568 A & B
•Suitable for design wall plates for several well-known switching programs e.g. Busch-Jaeger part number: 1812 or 1866EB
•Suitable for design wall plates for switching program PEHA part number: D 600 MJ8
•Suitable for design wall plates for switching program FELLER (CH) EDIZIOdue part number e.g.: 1183-028.FMI.F.61
•Fits easily in wall- and floor boxes, patch panels, desk boxes through short depth
•Dimensions (HxWxD): 20,14,34 mm
•Weight: 22 g

Rozšířená záruka výrobce 15 Let

Rozsah záruky a podrobné informace :
http://www.digitus.info/en/service/warranty/warranty/
Nutná registrace výrobku do 14 dnů od prodeje na webu výrobce.

.
