Popis produktu:

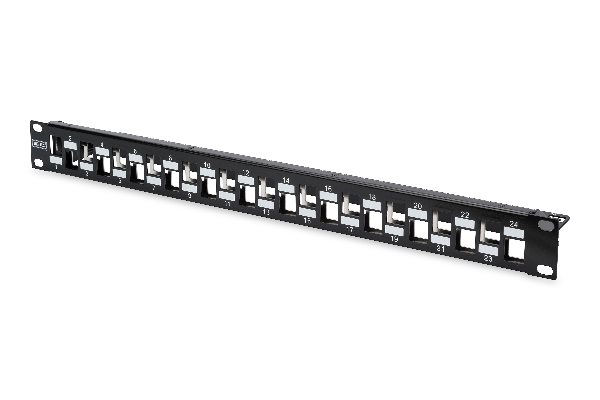

DIGITUS Modular Patch Panel, shielded 24-port, blank, 1U, rack mount, staggered, color black RAL 9005

The staggered modular 24-port Patch Panels from DIGITUS® are with the 1.5 mm cold rolled c-steel perfect suitable for
483 mm (19") rack mounting. Due to the staggered array of the keystone modules a better attenuation ratio is reached
between surrounding transmission channels. They are available in the colors grey (RAL 7035) and black (RAL 9005).
l Layout Keystone Entry: Staggered
l Area of application: 19" cabinet
l Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
l General properties:
l Suitable for 483 mm (19") cabinet mounting
l Suitable for shielded Digitus® Keystone Modules and Couplers
l Central ground connection
l Technical properties:
l Housing material: 1.5 mm SPCC cold rolled stell sheet, powder-coated
l Material standard: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141,
ASTM, SAE
l Grounding bar material: Galvanized steel
l Grounding wire: 18 AWG, 40 cm
l Physical properties:
l Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
