Popis produktu:

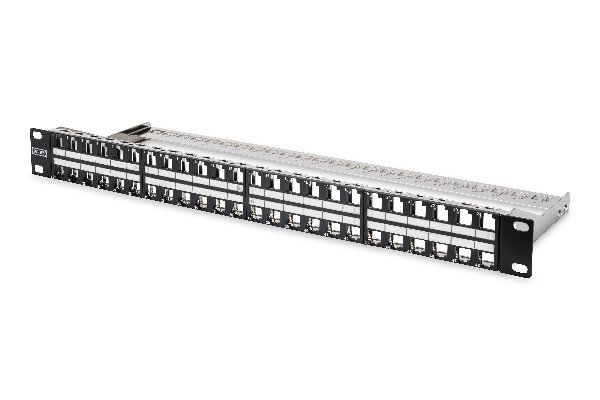

DIGITUS Modular Patch Panel, shielded 48-port, label field, 1U, rack mount, color black RAL 9005

The DIGITUS® 48 Port 1U Modular Patch Panel ensures a High Density with the benefit of 48 Keystone Jacks in just one height unit.


l  Layout Keystone Entry: Straight l  Area of application: 19" cabinet l  Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C l  General properties: l  Suitable for 483 mm (19") cabinet mounting l  Suitable for shielded Digitus® Keystone Modules and Couplers l  Central ground connection l  Plastic label field l  Technical properties: l  Housing material: 1.5 mm SPCC cold rolled stell sheet, powder-coated l  Material standard: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE l  Grounding bar material: Galvanized steel l  Grounding wire: 18 AWG, 40 cm l  Physical properties: l  Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) l  Category: CAT 6A l  Ports: 48 l  Color: black, RAL 9005 l  Units: 1
