Popis produktu:

Description

Outdoor 1 to 2 Ultra PoE++ Extender 1 port in, 2 ports out, support 95W/60W/30W/15,4W

Extend your PoE Ethernet signal without additional power supply by up to 200 m
1 port 10/100BaseTX PoE IN
2 port 10/100BaseTX PoE OUT
Easy outdoor installation and IK10 vandalism protection
Wide temperature range: -40°C – +60°C
Supports PoE 802.3af/at/bt

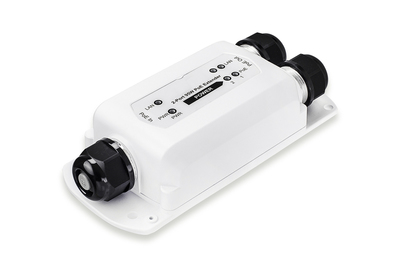

The DIGITUS® outdoor PoE++ extender is a PoE extender in a weatherproof housing with the IP67 protection class. The housing is very sturdy and conforms to the IK10 vandalism protection class. The PoE++ extender offers the extension of the network signal by another 100m between the switch and PoE terminal devices such as IP surveillance cameras or access points without additional power supply. The PoE++ extender requires no settings to be made thanks to plug and play.

Technical Details
Meets the 802.3af/at/bt PoE standard
1 port 10/100BaseTX PoE IN
2 port 10/100BaseTX PoE OUT
Network capacity: 1Gbps
Output voltage per PoE port: 44 – 55V/DC, max. 70W
PoE overvoltage protection up to 6kV
No additional power supply unit required
Power supply (input) via pin: 4/5 (+), 7/8 (-) and 3/6 (-), 1/2 (+)
Power supply (output) via pin: 4/5 (+), 7/8 (-) and 3/6 (-), 1/2 (+)
Protection level: IP67
Vandalism protection class: IK10
Dimensions: 167.5 x 72.8 x 39.8 mm
Weight: 0.36kg
Storage temperature: -40°C – 85°C
Operating humidity: 10 – 90% non-condensing

Package content
Outdoor 2 port PoE++ extender, IEEE802.3bt
Quick start guide
