Popis produktu:

Fast Ethernet Multimode to Singlemode Media Converter, SC to SC Wavelength 1310nm

Description

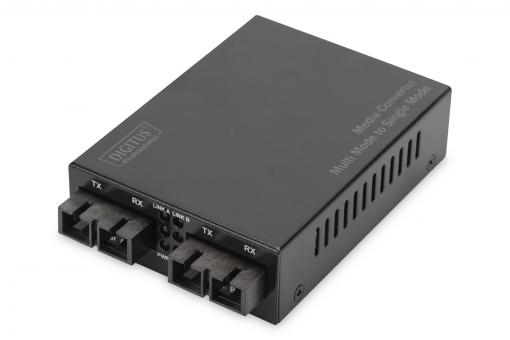

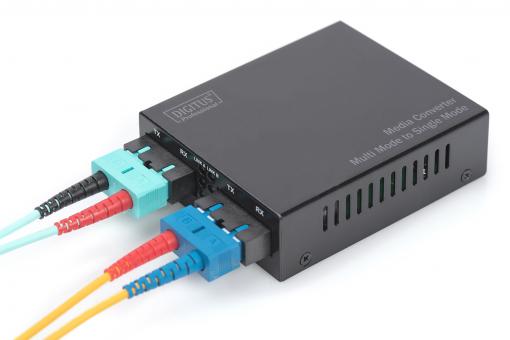

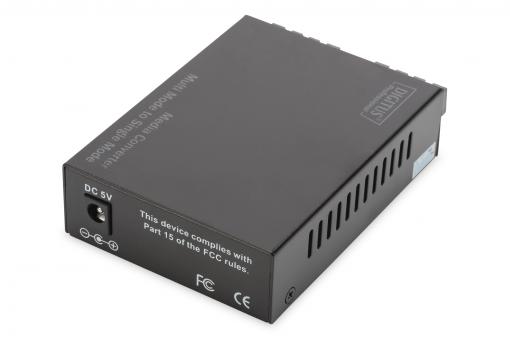

Fast Ethernet Multimode/Singlemode Media Converter SC/SC


The perfect converter solution for optical data transmission


Easy conversion between multimode and singlemode fiber optic
Fast migration for long distances
Range of up to 20km

The media converters from DIGITUS® are an optimal solution for the migration of fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.

Technical details
Converts between single & multimode fiber optic
100Base-FX SC connector, multimode dual fiber
100Base-FX SC connector, singlemode dual fiber
Wavelength: 1310nm
Multimode range of up to 2km
Singlemode range of up to 20km

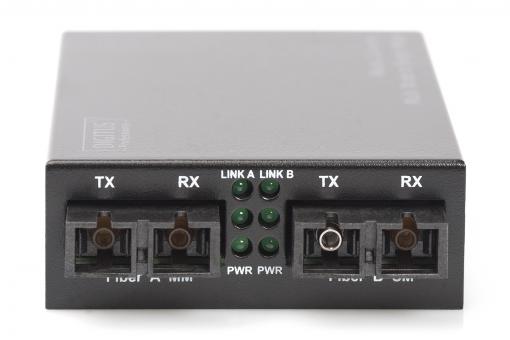

Diagnostic LEDs for status and activity monitoring
Suitable for 50/125µm, 62.5/125µm, and 100/140µm fiber optic cables (multimode)
Suitable for 8.3/125µm, 8.7/125µm, 9/125µm, and 10/125µm fiber optic cables (singlemode)
Operating temperature: -10 ~ 55 °C

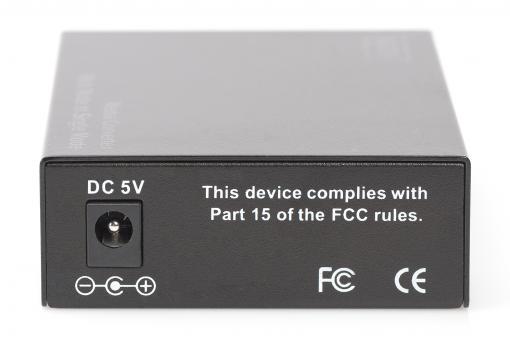

Standalone converter with external power supply unit
Input voltage: 5V DC
Max. current consumption: 1 A
Power consumption: 3.5W
Dimensions (L x W x H): 95mm x 70mm x 26mm


Package content
Fast Ethernet Multimode/Singlemode Media Converter SC/SC
Quick start guide
Power adapter
