Popis produktu:

Integrates Power over Ethernet technology to older non PoE network devices

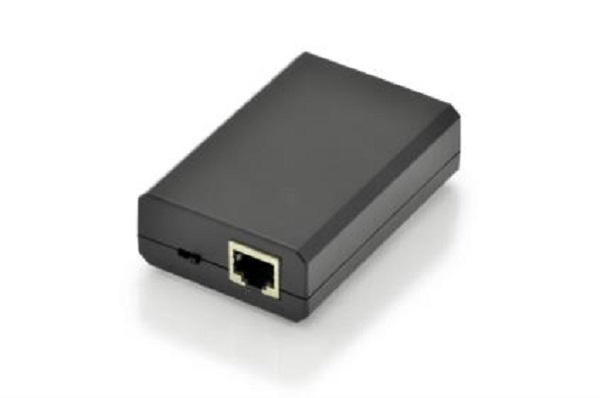

Gigabit PoE af Splitter,10/100/1000 Mbps, 12W, Input: 802.3af PoE, Output:5V/2A, 9V/1.5A, 12V/1A, plastic housing, black

The DIGITUS PoE Splitter provide data and power via a single Ethernet Cable to devices, which are not supporting Power over Ethernet. Just connect the input of the Splitter to a PoE Switch or a PoE Injector and the output side to a non-PoE network device such as an access point, IP Phone or a Camera to provide Power and Data. The Extender is self powered by PoE, so there is no additional power supply needed. The output voltage can be regulated via a dip switch to 5V , 9V or 12V. So this Splitter expand your network where you wish to place network device where are no power outlets available.


Package Content
•Gigabit PoE Splitter
•Manual
•RJ45 Ethernet cable
•DC power cable
•{DE mau}: 3,5mm Stromadapter

•Ethernet Speed: 10/100/1000Mbps Gigabit Half/Full Duplex
•PoE Standard: IEEE802.3af / IEEE802.3at
•Input: Power + Data In (RJ45)
•Output: Data Out (RJ45) , DC Out
•Plug-and-Play Installation - No configuration necessary
•Adjustable output: 5V/2A , 9V/1A, 12V/1A
•Splits the 48VDC power over RJ45 Ethernet cable into different DC output
•Status LED on the device (PoE ready/ PoE in-use)
•Circuit isolation protection
•Maximum power output up to 12 watts
•Support wide input voltage range 34VDC to 57VDC
•Thermal cut off
•Operating Temperature: 0 to 40°C
•Dimensions (L x W x H): 80 x 55 x 23 mm
•Weight: 80g
•Colour: black
