Popis produktu:

Industrial Gigabit Media Converter 10/100/1000BaseT to 1000Base-SX SC, 0.5km, extended temp. range, DIN-rail

Description

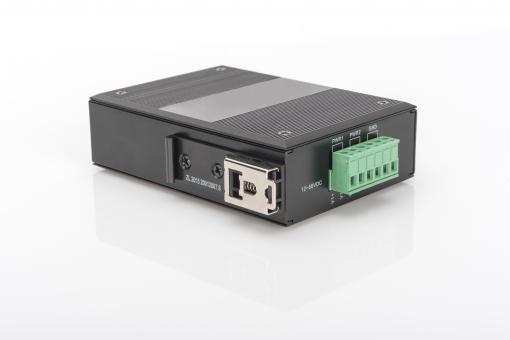

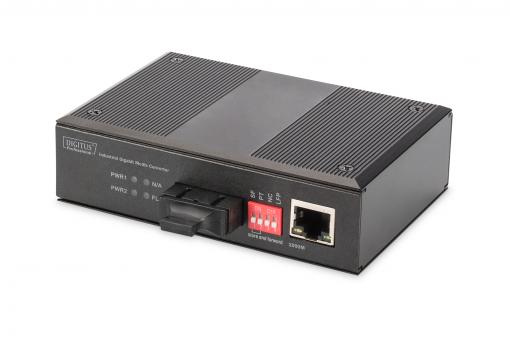

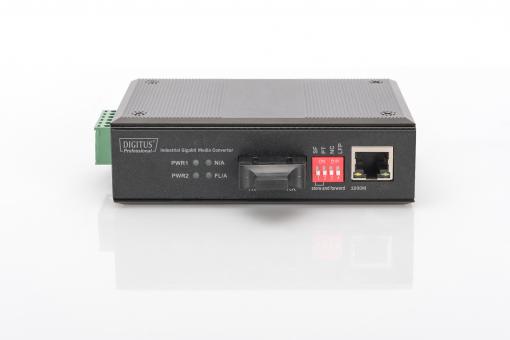

Industrial Gigabit Media Converter RJ45, SC 0.5km


The perfect converter solution for optical data transmission


Converts wire-based network signals into fiber optic signals
High quality and the highest reliability

The media converters from DIGITUS® are an optimal solution for the migration of copper and fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.

Technical details
Converts wire-based network signals into fiber optic signals
High quality and the highest reliability
10/100/1000Base-TX to 1000Base-SX
Ports: 1x RJ45, 1x SC duplex
Range of up to 0.5km
Wavelength: 850nm
Multimode dual fiber
Automatic cable detection - Auto MDI / MDI-X function
Diagnostic LEDs for status and activity monitoring
Suitable for 50/125µm, 62.5/125µm, and 100/140µm fiber optic cables (multimode)
Compact, robust metal housing
Excellent short circuit protection
Lightning and overvoltage protection
DIN rail (top hat rail) and wall mounting possible
Redundant power supply: 12~56 V DC, redundant power supply with reverse polarity protection function
Extended operating temperature range, -40 °C ~ +85 °C
Removable terminal connection
Protection class IP40


Package content
Industrial Gigabit Media Converter RJ45, SC 0.5km
Quick start guide
