Popis produktu:

7U wall mounting cabinet, Dynamic Basic 416.15x600x600 mm, color grey (RAL 7035) incl. rear side profile rails

Description

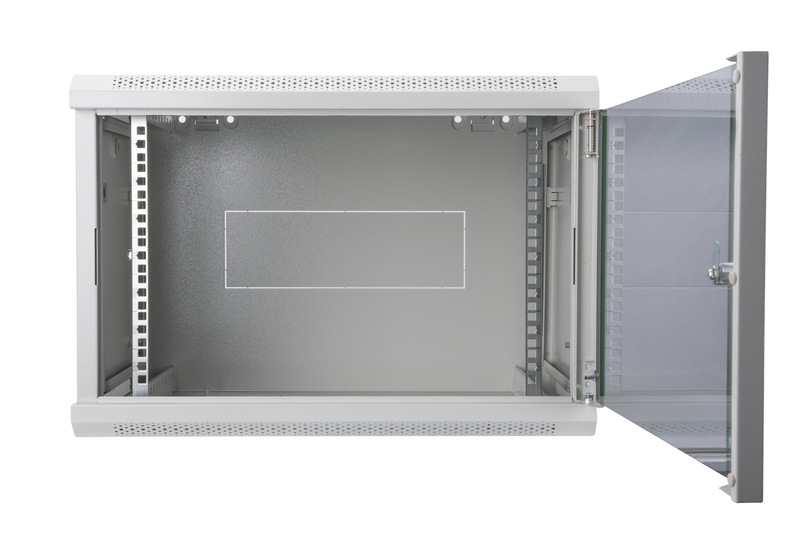

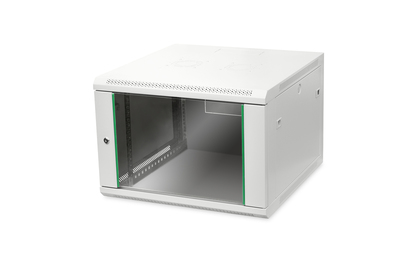

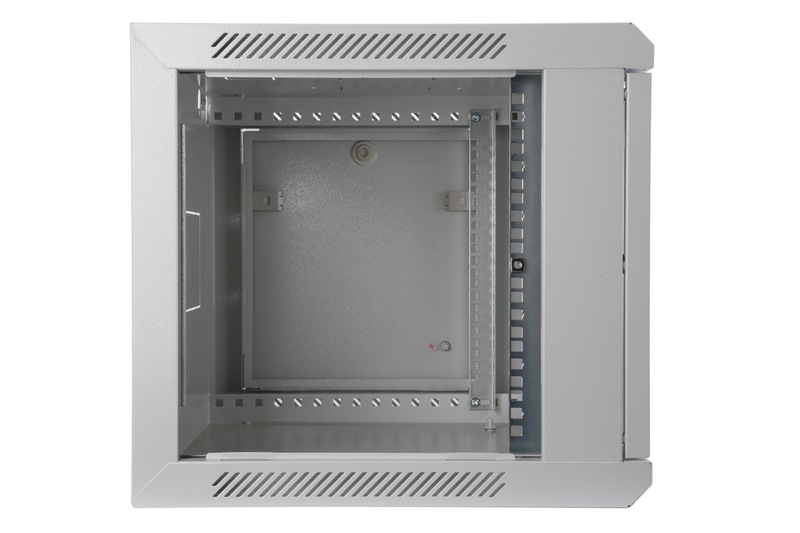

7U wall mounting cabinet, Dynamic Basic 416.15x600x600 mm, color grey (RAL 7035)

Optimized air ventilation and exhaustion
Lockable glass door ensures safety
483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
The Wall Mounting Cabinets of the Dynamic Basic Series are made of a robust steel construction. Stability is given due to the welding spots. The side sections are detachable and the installation on the wall is easy so it can be implemented quickly. Due to their flexibility the cabinets are ideal for all current IT and telecommunication applications.

Technical Details
Safety class rating IP20

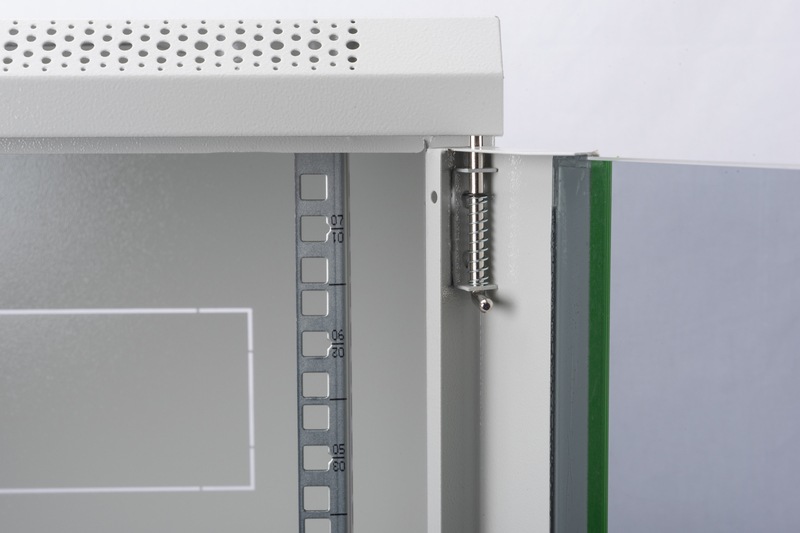

Lockable safety-glass door with steel frame
210° door opening angle
1-point-locking-mechanism on the front door
483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
483 mm (19“) profile rails are adjustable in depth and with height unit marking
0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated
Cable entry on the rear side, roof and base (pre-punched break-outs)

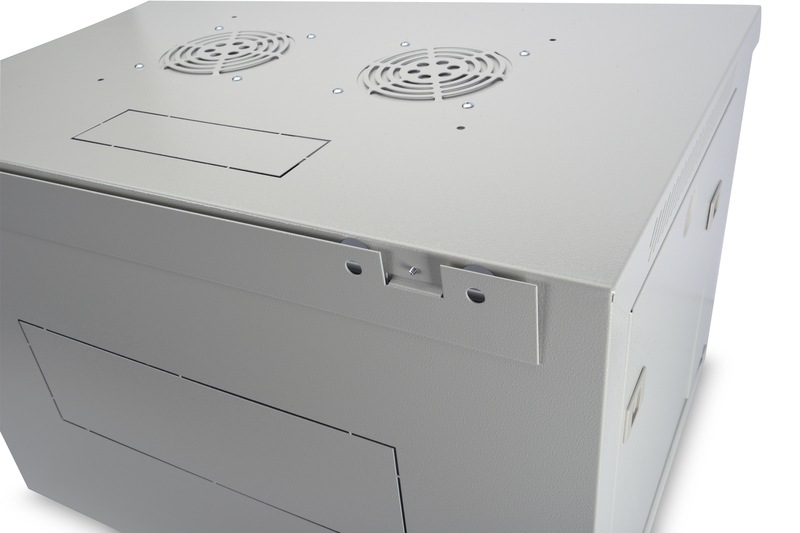

Roof is prepared for fan units (punched out entries)
Ventilation slots for active and passive ventilation and exhausting
3 earthing points (base, side panel and front door)
3 earthing points (base, side panel and front door)
Colour: Grey
Width: 600
Model: With permanent frame
Height: 416.15
Depth: 600
RAL-number: 7035
Number of doors: 1
Type of ventilation: Passive
Material: Steel
Number of height units: 7
With socket: no
Degree of protection (IP): IP20
Type of surface: With powder coating
Mounting level: Front side
Type of profile rail: L-shaped
With roof plate: yes
With earthing: no
With front door: yes
With backside door: no
With sidewall: yes
Demountable: no
Modular spacing: 482.6 mm (19 inch)
