Popis produktu:

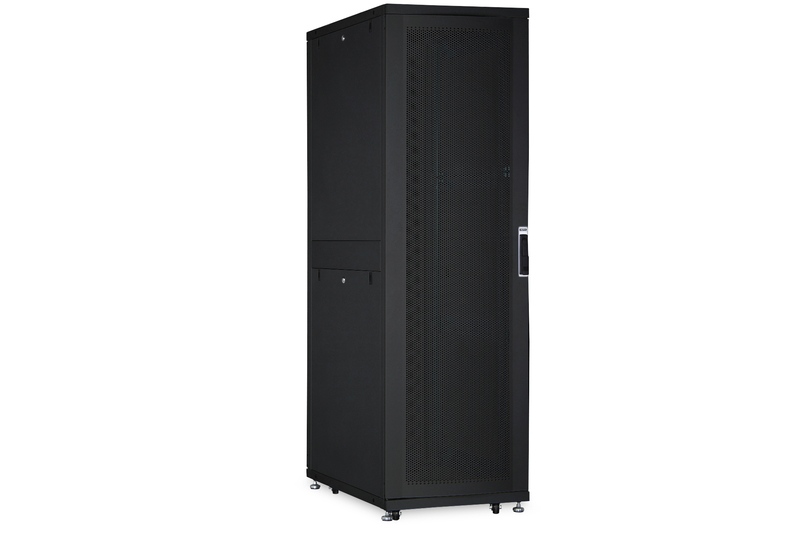

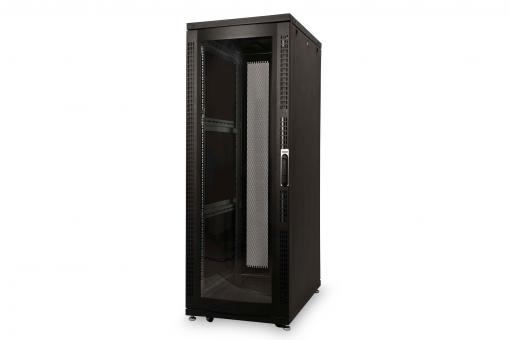

36U server rack, Unique, 1785x600x1000 mm steel front door w. plexi glass, black (RAL 9005) color black (RAL 9005)

Description
Server Rack Unique Series - 600x1000 mm (WxD)


The DIGITUS® Professional Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany


Special roof construction for fan unit, incl. perforated cover
Lock system with pivot lever on front- and rear door (incl. profile half cylinder lock)
Sliding cable entry with rubber sealing on the top and base

The Server Cabinet Unique Series was designed and produced for a secure housing of server equipment. Several optimizations result in a perfect performance between quality and added value. Each cabinet is designed with strength, ease of use and aesthetics in mind. The Server Cabinet Unique Series is ideal for small to medium sized server rooms up to multi data center installations. The cabinet consists out of a modular frame construction which ensures the sturdiness. Key elements of the series include the air flow (high perforation of 70%) and the cooling management (ventilation). Thanks to the fast and easy locking system of the side panels as well as front- and rear doors, every cabinet ensures easy access. The 483 mm (19”) profile rails are variable in the whole depth of the cabinet. Furthermore there are depth support bars mounted between them, realizing even more sturdiness for the cabinet. The front door is equipped with a 4-point locking mechanism and the rear door is equipped with a 3-point locking mechanism. You can choose between various height units from 26U to 47U with a width of 600 or 800 mm and a depth of either 1000 or 1200 mm. Standard colors are grey (RAL 7035) and black (RAL 9005); other colors are available on request.

Technical details
Safety class rating IP20

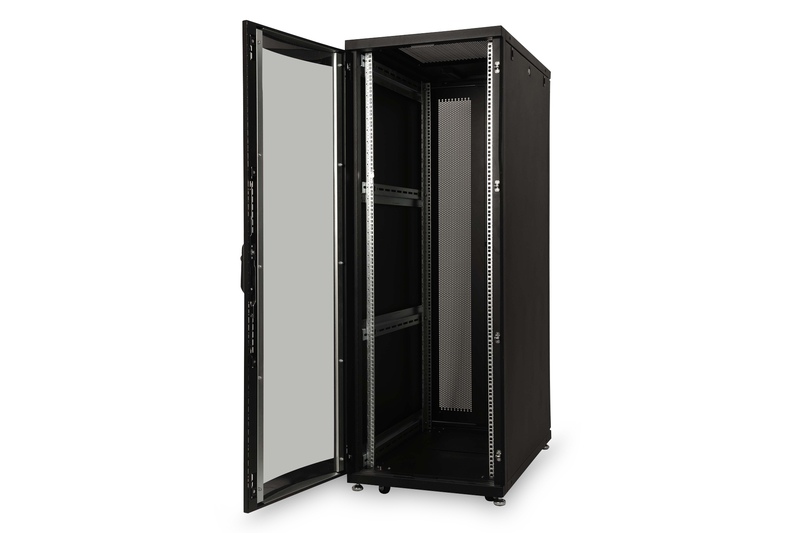

Single wing opening front door with perforated steel frame with plexi glass

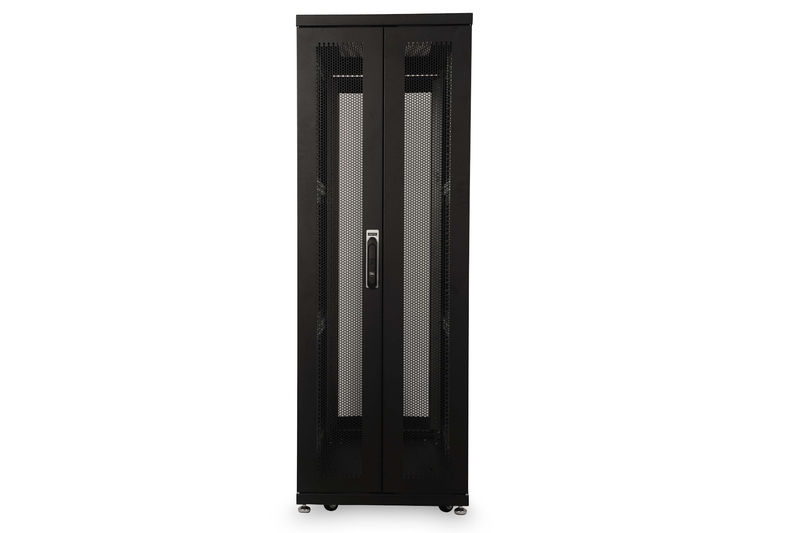

Double wing opening steel rear door with 70% perforation
Lock system with pivot lever on front- and rear door (incl. profile half cylinder lock)
230° door opening angle on front- and rear doors
Front door is curved to the outside in perforated resp. plexi glass area
Front door with 4-point locking and rear door with 3-point locking
Horizontally separated side panels (two per side), lockable and detachable
incl. 4 pieces of leveling feet and 4 pieces of castor, already pre-configured under the cabinet (front castor are lockable)
483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
483 mm (19“) profile rails are adjustable in depth and with height unit marking
Built-in depth support bars for more stability
Sliding cable entry with rubber sealing on the top and base
Special roof construction for fan unit, incl. perforated cover
Several earthing points for rack components
Incl. installation set (screws, cage nuts, washers)
Rack is completely mounted
