Popis produktu:

SoHoline 12U 19" Wall Mounting Cabinet,
barva šedá RAL 7035, váha 26 kg, šířka 600x výška 536/604 (vnitřní/vnější) x hloubka 450mm
Zhotoveno z plechu tloušťky 1,1-1,5 mmm
Odnímatelné a zamykatelné boční stěny
Ventilační otvory pro pasivní ventilaci
Stupeň ochrany IP40
Zamykatelné dveře s ocelovým rámem a bezpečnostním sklem
Kabelové vstupy nahoře i dole
Dvě přední posuvné stojky (mopunting angles) pro montáž 19" zařízení


The DIGITUS SOHO Wall Cabinets are made of a robust steel construction with a minimum of seams. Ideal for all current IT- and
Telecommunication applications.

Standard Type:
• 1,1mm – 1,5mm strong sheet steel with high load capacity, grey (RAL 7035)
• Side sections detachable and lockable
• Ventilation slots for passive ventilation and exhaustion
• Protection rating IP 40
• Safety-Glass door with steel frame and lockable
• 2 x 19” profile rails
• Cable entry on top and bottom
• Incl. 8 pieces mounting set
• Grounded
• Extensive accessories available

The SOHOline cabinets provide an economic solution cabling installations. This series is a range of wall mounted or/and free standing enclosures used in offices for horizantal segments where a reduced amount of U height is required. Again the aesthetics creating a pleasing and professional look.
Attention to styling with light grey Ral7035 with a smoked glass door reinforced with vertical left and right metal frames mean that cabinets can be deployed in the most demanding of office environments when looks really matter. Front door frames is available with decorative trim or customized as blue, green, light blue, red.
Optimal mounting, hinging and panel mounting arrangements create a variety of equipment mounting an access arrangements. This allow the PROline to be used in almost all locations.
Completely standart SOHOline wall mounting cabinet is delivered as a single enclosure and assembled.
Wall mounted cabinets could be used as free standing by using accessories castor or levelling feet under a table or in any enviroment.

STANDARDS
• ISO9001:2000
• 19” mounting to IEC 297-1
• Overall cabinet dimensions to IEC 297-2

•Easy to access

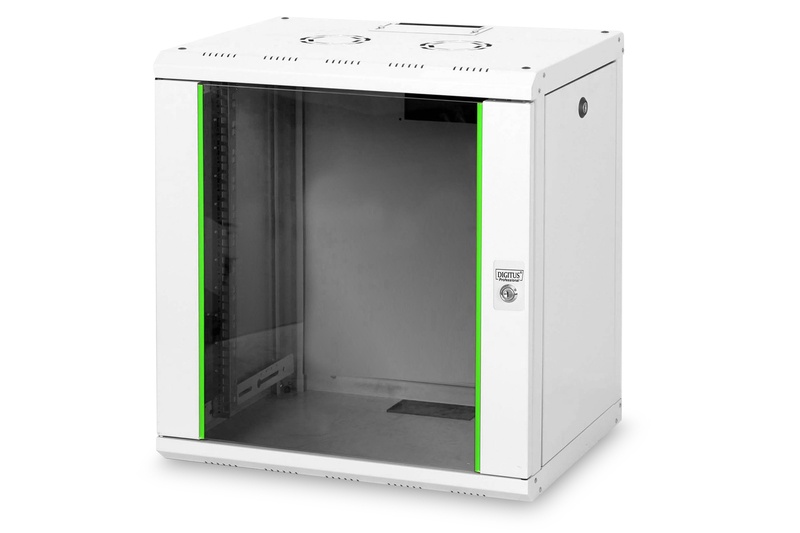

Front door features a full-length smoked and shatterproof glass door with decorative accent trim reinforced with left/right metal frames and integral locking mechanism.
Side doors; lockable, removable complete with a locks.
Rear door; mechanically lockable, removable

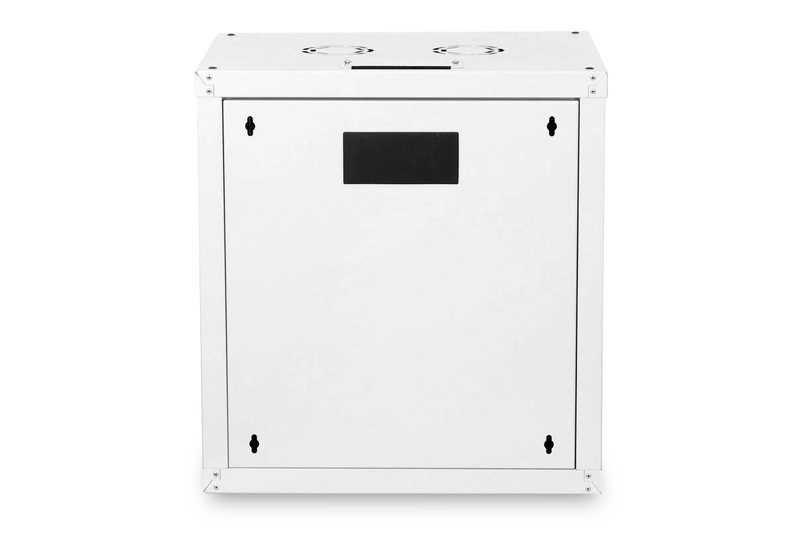

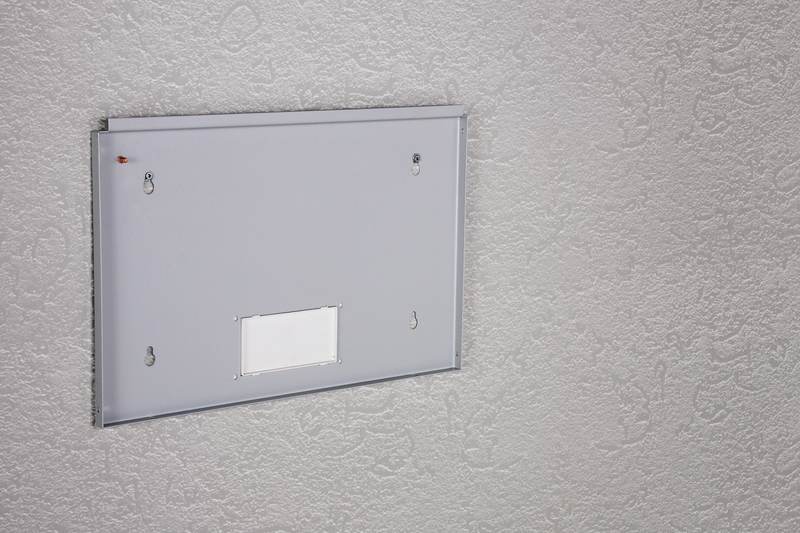

It is used as mounting plate at the same time. When mounting the enclosure, rear door is removed and mounted directly to wall and enclosure plug-in to the rear door. It’s benefits that, straight on wall, fast installation, low manpower, save time and cost-effective solution.
All giving you 4-way access to equipment.

•Cable access
Multiple cable entry points on top(1ea) and bottom(1ea), provide maximum versatility. There is a rubber edge sliding cover mechanism that protects and fix the cables.
On the rear door, there is also a cable entry hole closed with cover. When it is used, it is replaced with one of top/bottom rubber edge sliding cover mechanism.
•Construction
Rigid welded frame construction is in steel sheet. Corner of bases have welded sockets on each corner that tightly fixed into the columns gives maximum stability.
Frames are made with 24-fold design for increased stability.
Vented top cover provide passive heat transportation via convection. There are vented fan holes suitable for cooling unit. (see accessories)

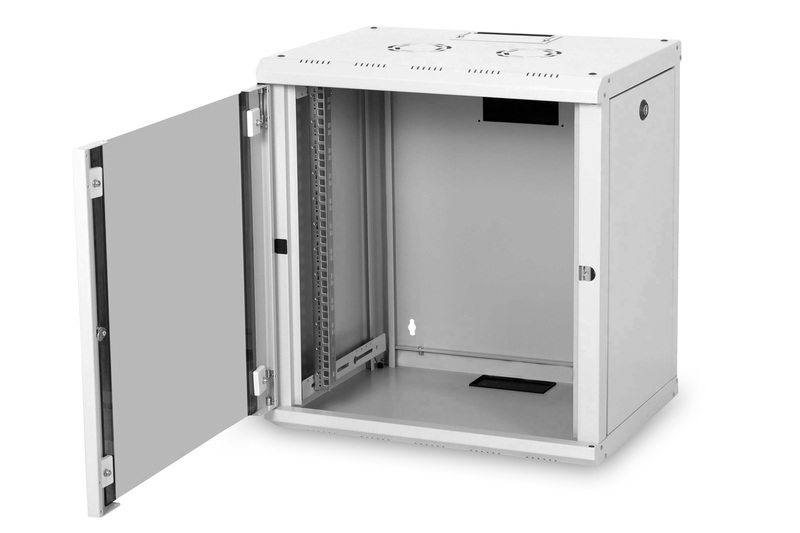

19” mounting angles (front/2ea.) allow for flexible configuration and adjustable in depth.
