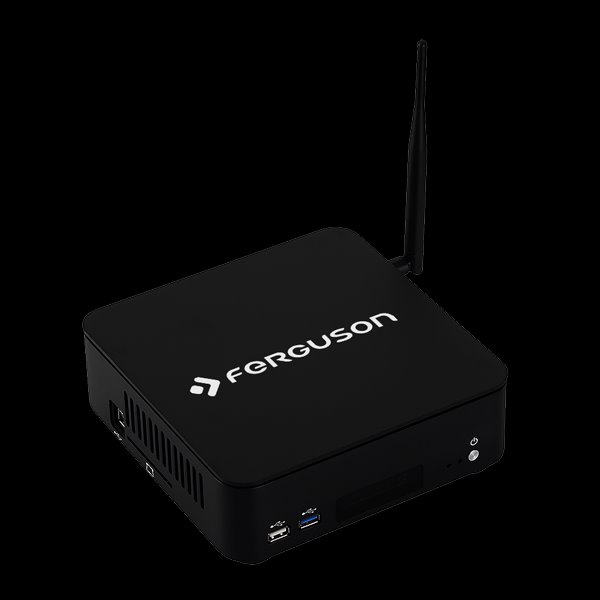

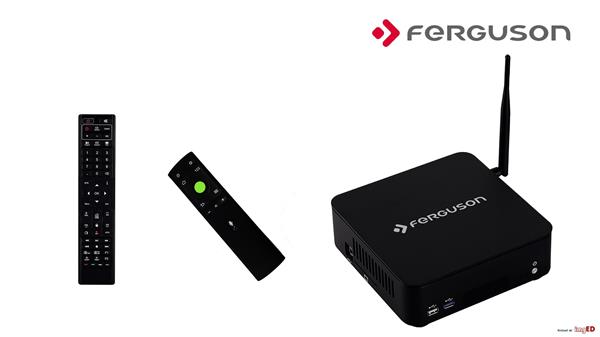

FERGUSON satelitný hybrid receiver U5 PVR (DVB-T/T2+DVB-S/S2)
FERGUSON satelitný hybrid receiver U5 PVR (DVB-T/T2+DVB-S/S2)
Výrobca |
FERGUSON |
|
---|---|---|
Kód | ITK499190 | |
Part No. | U5 PVR | |
Dostupnosť po pobočkách |
|
|
DPH | 20% | |
Vaša cena s DPH |
198.71 €
bez DPH 165.59 €
|
|
Vaša cena bez DPH | ||
Garancia ceny | Našli ste inde na internete nižšiu cenu? Informujte nás! | |
|
||
Objednať |
|
|
Záruka koncový zákazník: 24 Mesiacov
Záruka firma: 24 Mesiacov
Výrobca:
Kód: ITK499190
Part No.: U5 PVR
Záruka firma: 24 Mesiacov
Výrobca:
FERGUSON
Kód: ITK499190
Part No.: U5 PVR
FERGUSON satelitný hybrid receiver U5 PVR (DVB-T/T2+DVB-S/S2)
Obchod si vyhradzuje právo na zmenu ceny až po potvrdenie objednávky. Obrázok má len ilustračný charakter.
Zaradenie produktu
Diskusia (0)
Poslať info
- +Akcia
- +JARNÉ POMÔCKY
- +PC, NOTEBOOKY
- +MOBILY, TABLETY, HODINKY
- +PC KOMPONENTY
- +PERIFÉRIE
- +HERNÁ ZÓNA
- +ČIERNA TECHNIKA
- +MALÁ BIELA TECHNIKA
- +VEĽKÁ BIELA TECHNIKA
- +SOFTWARE, E-KNIHY
- +MICROSOFT SOFTVÉR
- +ŠPORT, ZDRAVIE
- +ZÁHRADA, HOBBY
- +NÁBYTOK
- +FOTOVOLTAIKA
Naposledy navštívené
Kód | Názov produktu | Vaša cena |
---|
Vážení zákazníci, v nedeľu 22.12.2024 bude predajňa v NITRE otvorená od 9:00 do 12:00. Viac info
Podrobnosti o produkte
Popis produktu:
Přístroj má hybridní tuner, který vám umožňuje přijímat pozemní / kabelové / satelitní TV signály až v rozlišení 4K.
S technologií DVB-T / T2, DVB-C a DVB-S / S2 můžete snadno přijímat digitální televizní signál.
Dva operační systémy ... Android 4 for TV a Debian
Technical specification:
• Main Chipset: HiSilicon HI3798C V200 up to 1.6GHz
• CPU Cores: Quad-core
• CPU Architecture: ARM Cortex A53
• GPU: ARM Mali T720 (OpenGL ES 3.1, 3.0, 2.0, 1.1 and OpenCL 1.1)
• SDRAM: 2GB DDR4-2133 SDRAM
• Storage: 16GB eMMC 5.0
TUNER DVB-S2
• Input Connector: F-Type Female
• Frequency Range: 950MHz to 2150MHz
• Signal Level: -25 to -70dBm
• LNB Power & Polarisation: Vertical: +13.5V ± 0.5V Max
250mA; Horizontal : +18.5V ± 0.5V Max 250mA
• 22KHz Tone: Frequency : 22KHz ± 4KHz, 0.6Vp-p ± 0.2Vp-p
• Diseqc Control: Version 1.0, 1.2, USALS Compatible
• Demodulation: QPSK & 8PSK
• Input Symbol Rate: DVB-S : 1 ~ 55Mbps / DVB-S2 : 1 ~ 45Mbps
TUNER DVB-T2/T/C
• Antenna Input/Output Connector: F-Type Female or IEC Female
• Frequency Range: 52MHz to 866MHz
• Signal Level: -25 dBm to -80 dBm
• IF Frequency: Low IF 3 ~ 60 MHz
• Mode: DVB-T2/T/C, QPSK, 16QAM ~ 256QAM
• Bandwidth: 6 MHz, 7 MHz, 8 MHz, 1.7MHz(Possible to use with Low IF)
MPEG TRANSPORT STREAM A/V DECODING
• Transport Stream: ITU-T H.265/HEVC & H.264, ISO/IEC
13818-2 MPEG-2, AVS&AVS+, VC1, VP6, VP8, VP9
• Profile Level: ITU-T H.265 Main 10 Profile@L5.1 high-tier, MPEG-2 MP@HL
• Input Rate: Max. 160Mbit/s (H.265)
• Video Format: 4:3, 16:9, Letter Box, Pan&Scan
• Video Resolution: 10bit, Up to 4096x2160px@60fps, HDR 10 Support
• Audio Decoding: MPEG I&II, MP3, Dolby True HD
& Digital Plus, AAC-LC, HE-AAC V1/V2
• Audio Mode: Stereo/Mono/Left/Right/Exchange
• Bluetooth: 4.0 + EDR
• HDMI: HDMI 2.0a TX with HDCP 2.2, 4K 10bit UHD @60Hz
up 4096x2160px, 1080p/i, 720p/i, 576p/i, 480p/i
• Ethernet: RJ45 10/100/1000M Ethernet interface
• Wi-Fi: DualBand 2,4/5GHz 802.11a/b/g/n/ac
• USB: 1x USB 3.0 port, 3x USB 2.0 port
• Ports: AV, HDMI 2.0a HDCP 2.2, HDCP1.4, USB 2.0, USB 3.0, S/PDIF,
LAN 10/100/1000Mbit, Micro SD (up to 128GB), DC 12V/3A, DVB-T/
T2/C, DVB-S2, Smart Card Slot, SATA III, Mini USB Connector
• Software: Dual OS Android TV 7.1 and Linux Debian
• Video Support: HDTV, SDTV MPEG-2, MPEG-4, H.264,
HEVC/H.265, AVS, Divx 2K/4K decoding
• Video Formats Support: MKV, MP4, WMV, MPG, MPEG,
DAT, AVI, MOV, ISO, others via applications
• Video Containers Support: MKV(h.264, HEVC/h.265),
WMV, MP4, RM, RMVB, TS, AVI, VOB, MOV (h.264,
HEVC/h.265), ASF, 3GP, others via applications
• Audio Support: AC3/Dolby Digital 5.1, E-AC/Dolby Digital
+5.1, Dolby Digital +7.1, TrueHD 5.1, TrueHD 7.1,` Dolby Atmos
7.1, DTS HD Master, DTS High Resolution, DTS X
• Audio Containers Support: MP3, WMA, WMA, AAC,
OGG, OGA, FLAC, ALAC, others via applications
• Input Voltage: AC 90~250V, 50/60HZ, DC 12V/3A
• Power Consumption: Depends on the
components use (HDD, MicroCD, others)
• Power Consumption in Standby: ? 0.5W
• Storage Temperature: -10~70°C
• Operating temperature: 0~45°C
• Humidity: <95%
• Dimensions (WxDxH): 197x197x62mm
• Net Weight: 1.65 Kg

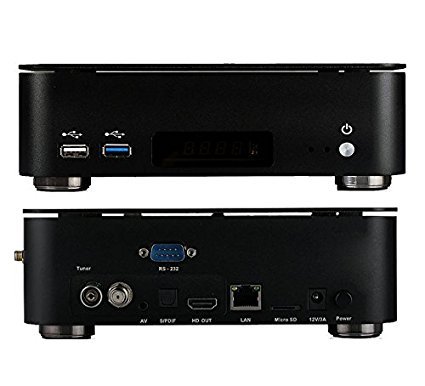

Rear Panel
DC Power Jack 12Vdc / 3.0A
RJ-45 Connector 10/100/1000Mbps
Bluetooth Yes. 4.0 + EDR
Wifi Antenna Connector IEEE 802. 11b/g/n/ac, 2.4GHz/5.8GHz Dual band
HDMI Connector Version 2.0a, HDCP 2.2, HDCP1.4
S/PDIF Optical
3.5? Phone jack Video(CVBS) / Audio Left & Right
Tuner for DVB-T2/T/C 1 Input Without Loopthrough
Tuner for DVB-S2 1 Input Without Loopthrough
Front & Left side
LED Indicator X 2 Single color light emmitting diode
Display 4 Digit 7 Segment (Optional)
Micro SD Card Slot FAT and exFAT Support
USB3.0 X 1 USB2.0 X 3 USB3.0 and 2.0 Host Interface;
USB Memory Stick&HDD, HUB Support;
FAT, NTFS Support;
5 VDC, 500 mA max.
Smart Card Slot Single (Optional)
SATA III Internal connector
Mini USB Connector External IR Module and Display (Optional)
