Popis produktu:

   Form Factor: M.2 2280
   Interface: PCI-Express 5.0 x4, NVMe 2.0
   Total Capacity: 2000GB*
   Sequential Read Speed : up to 12,400 MB/s**
   Sequential Write speed : up to 11,800 MB/s**

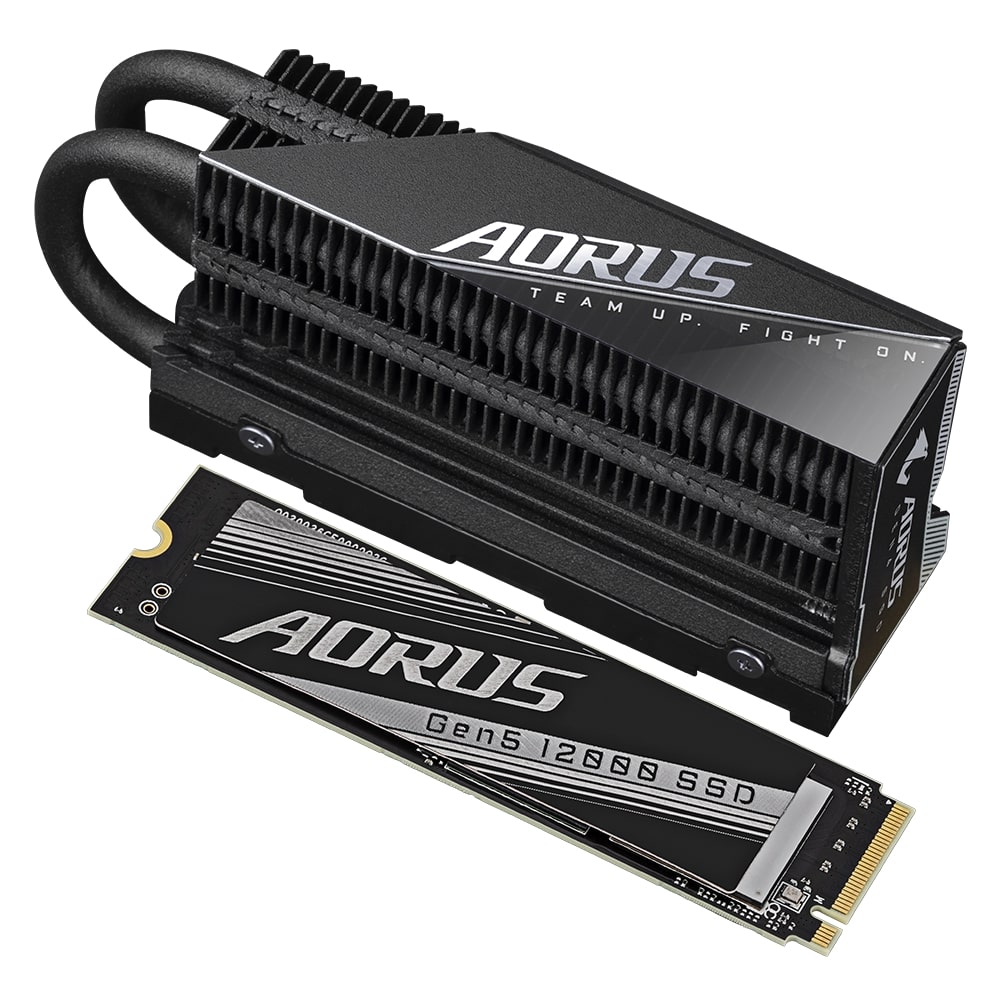

   M.2 Thermal Guard XTREME with Nanocarbon coating
   Warranty: Limited 5-years


   Interface
   PCI-Express 5.0x4, NVMe 2.0
   Form Factor
   M.2 2280
   Total Capacity
   2000GB
   NAND
   3D TLC NAND Flash
   External DDR Cache
   LPDDR4 4GB
   Sequential Read speed
   Up to 12,400 MB/s
   Sequential Write speed
   Up to 11,800MB/s
   Dimension
   SSD without Heatsink: 80 x 22 x 3.5mm
   SSD with Heatsink: 92 x 23.5 x 44.7 mm
   Please refer to the file to check the M.2 Thermal Guard XTREME Incompatible List
   Mean time between failure (MTBF)
   1.6 million hours
   Max. Operating Power
   11.5W
   Power Consumption (Idle, PS3)
   <144mW
   Power Consumption(PS4, L1.2)
   <85mW
   Temperature (Operating)
   0°C to 70°C
   Temperature (Storage)
   -40°C to 85°C
   Warranty
   1. Limited 5-years or 1400TBW.
   2. Limited warranty based on 5 years or 1400TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )

   *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
   3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
   Note
   • Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
   • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
   • Speeds based on internal testing. Actual performance may vary.
   • 1GB = 1 billion bytes. Actual useable capacity may vary.
   * To keep AORUS Gen5 12000 SSD from overheating, please adopt the motherboard build-in heatsink or Thermal Guard Xtreme heatsink to prevent throttling.
