Popis produktu:

   AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
   AMD B550
Memory
   2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
   Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
   Dual channel memory architecture
   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
   * ECC memory (ECC mode) support varies by CPU
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
   1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
   * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
   2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
Audio
   Realtek® ALC1220-VB codec
   * The back panel line out jack supports DSD audio.
   High Definition Audio
   2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
   Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
Intel® Wi-Fi 6 AX200
   WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
   BLUETOOTH 5
   Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
   AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
   AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
Storage Interface
   1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs:
   - AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
   - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
   1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs:
   - Supporting SATA and PCIe 3.0 x4/x2 SSDs
   4 x SATA 6Gb/s connectors, integrated in the Chipset:
   - Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
   4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
   1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
   1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
   2 x USB 3.2 Gen 1 ports available through the internal USB header
   2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   2 x system fan headers
   1 x addressable LED strip header
   1 x RGB LED strip header
   4 x SATA 6Gb/s connectors
   2 x M.2 Socket 3 connectors
   1 x front panel header
   1 x front panel audio header
   1 x speaker header
   1 x USB 3.2 Gen 1 header
   1 x USB 2.0/1.1 header
   1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
   1 x Clear CMOS jumper
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

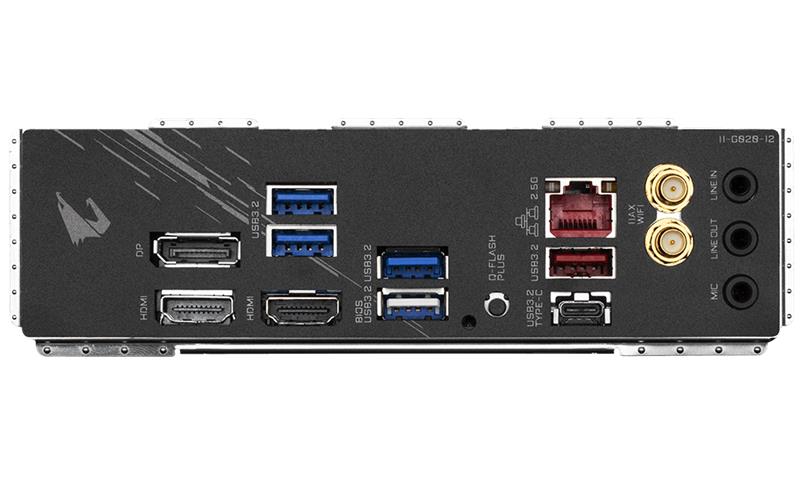

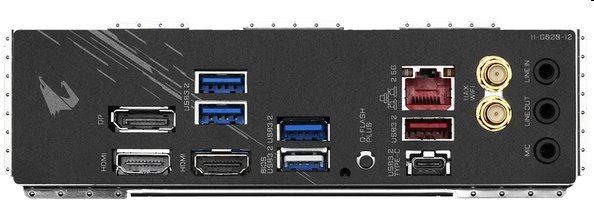

Back Panel Connectors
   1 x DisplayPort
   2 x HDMI ports
   1 x USB 3.2 Gen 2 Type-A port (red)
   4 x USB 3.2 Gen 1 ports
   1 x USB Type-C™ port, with USB 3.2 Gen 2 support
   1 x Q-Flash Plus button
   1 x RJ-45 port
   2 x SMA antenna connectors (2T2R)
   3 x audio jacks
Operating System
   Support for Windows 11 64-bit
   Support for Windows 10 64-bit
Form Factor
   Mini-ITX Form Factor; 17.0cm x 17.0cm
