Popis produktu:

   Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
   Unparalleled Performance:Twin 12*+1+1 Phases Digital VRM Solution
   Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support
   Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
   Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance
   EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design
   Fast Networks:2.5GbE LAN
   Extended Connectivity:Rear and Front USB-C® 10Gb/s, DP, HDMI
   Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
   Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card



   LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
   L3 cache varies with CPU

* Please refer to "CPU Support List" for more information.
Chipset

   Intel® B760 Express Chipset

Memory

   Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
   4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:

   1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.0 version and HDCP 2.3.
   1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
   * Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)
Audio

   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
   Support for S/PDIF Out

LAN

   Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots
CPU:

   1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

   2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

Storage Interface
CPU:

   1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

   2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
   4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:

   2 x USB Type-C® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)
   1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
   2 x USB 3.2 Gen 1 ports available through the internal USB header

Chipset+USB 3.2 Gen 1 Hub:

   4 x USB 3.2 Gen 1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

   8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x 4-pin ATX 12V power connector
   1 x CPU fan header
   1 x CPU fan/water cooling pump header
   3 x system fan headers
   1 x system fan/water cooling pump header
   2 x addressable LED strip headers
   2 x RGB LED strip headers
   3 x M.2 Socket 3 connectors
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x USB Type-C® header, with USB 3.2 Gen 2 support
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
   1 x reset button
   1 x Q-Flash Plus button
   1 x reset jumper
   1 x Clear CMOS jumper

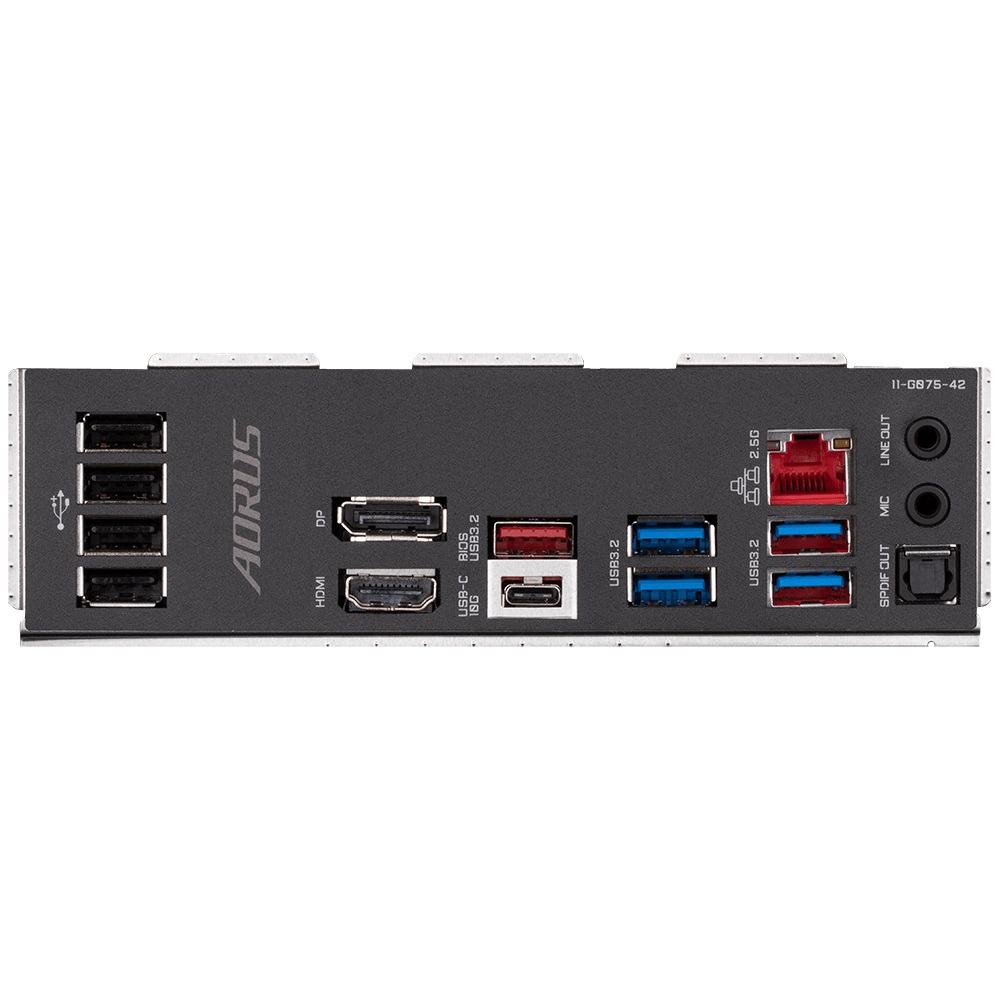

Back Panel Connectors

   1 x USB Type-C® port, with USB 3.2 Gen 2 support
   1 x USB 3.2 Gen 2 Type-A port (red)
   4 x USB 3.2 Gen 1 ports
   4 x USB 2.0/1.1 ports
   1 x HDMI port
   1 x DisplayPort
   1 x RJ-45 port
   1 x optical S/PDIF Out connector
   2 x audio jacks

I/O Controller

   iTE® I/O Controller Chip

H/W Monitoring

   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

   1 x 256 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

   Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   Support for Q-Flash
   Support for Q-Flash Plus

Bundled Software

   Norton® Internet Security (OEM version)
   LAN bandwidth management software

Operating System

   Support for Windows 11 64-bit
   Support for Windows 10 64-bit

Form Factor

   ATX Form Factor; 30.5cm x 24.4cm
